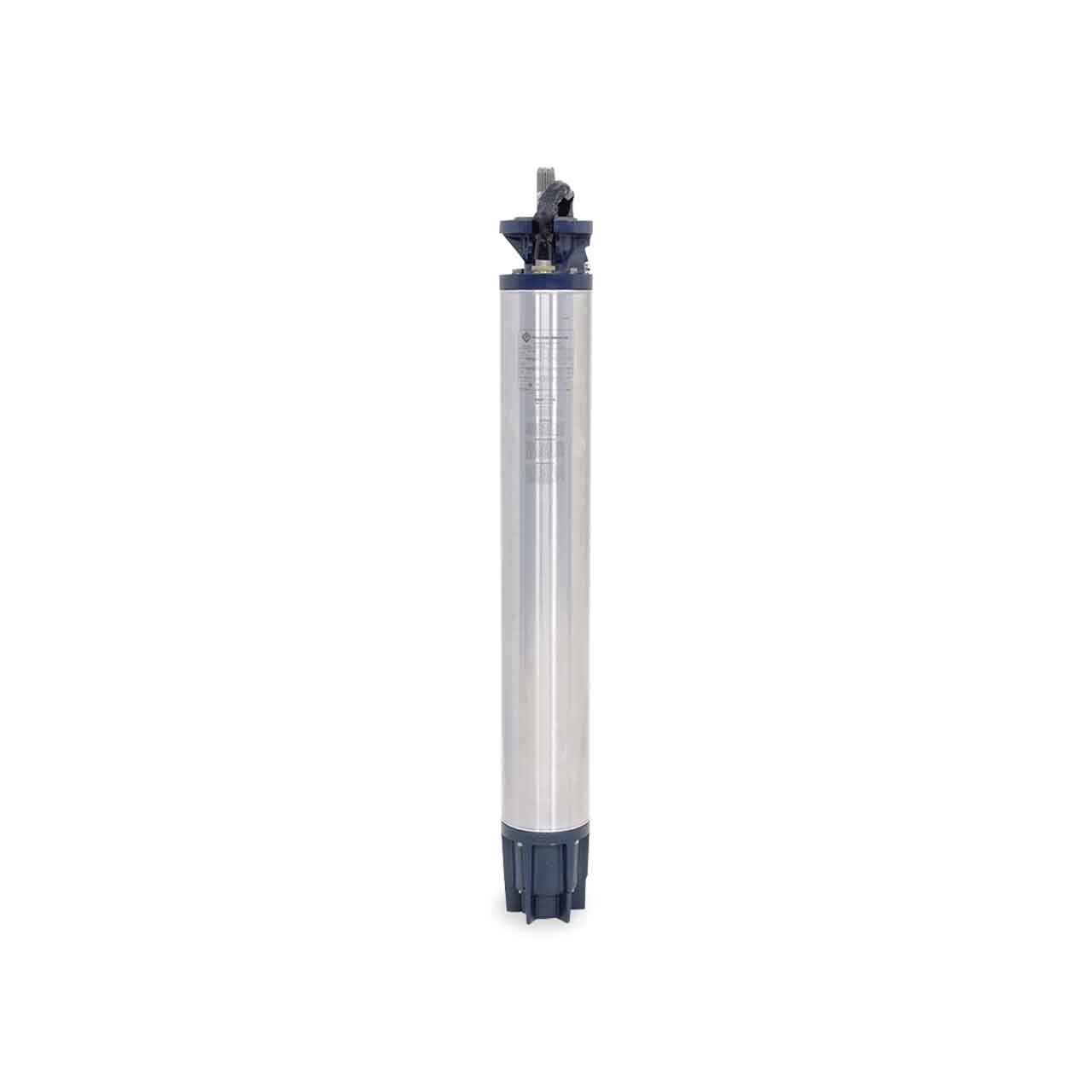

Franklin Electric 2791169004 Hi-Temp 75C Motor 8" 150 HP 575-Volt 60-Hz 3-Phase 3-Wire
Franklin Electric 2791169004 Hi-Temp 75C Motor 8" 150 HP 575-Volt 60-Hz 3-Phase 3-Wire
SKU : FEC2791169004
In Stock Quantity:0
:
Brand
:
Regular price
$67,900.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric 8" Hi-Temp 75C Submersible Motors Description
Some pumping applications require more – and Franklin’s Hi-Temp Motor line delivers just that – more. The Hi-Temp motor was designed and built in response to many requests for a motor that can operate dependably in wells with high temperatures and/or low flow conditions.
The Hi-Temp 75C 8” motor utilizes a new, premium encapsulation process and new water soluble coolant to allow continuous operation in water temperatures of up to 75 ºC (provided minimum allowable rates of flow past the motor are maintained). In addition, this design is capable of handling thrust loads 25% higher than a standard motor without using oil.
Franklin’s Hi-Temp 75C is the right choice for your demanding, high temperature well applications.
Franklin Electric 8" Hi-Temp 75C Submersible Motors Features
- Up to 167 °F (75 °C) Ambient Temperature
- 25% Increase in Upthrust Capability at 30 °C
- 25% Increase in Downthrust Capability at 30 °C
- Wet Well, Reservoir, Low Flow Approved in 14” Diameter or Larger Wells with Ambient Water up to 87 °F (30 °C)
- High Temperature Leads
- Hermetically-Sealed Stator
- Innovative High Temperature Winding Encapsulation System
- FE Water Soluble, High Temperature Bearing Lubrication
- Double-Flange NEMA Mounting for Ease of Handling and Pump Mounting
- Stainless Steel Splined Shaft for Maximum Shaft/Coupling Contact
- Full 3525 RPM 60 Hz Design Point for Superior Pump Performance
- Sand Fighter Sealing System
- Franklin Electric’s Exclusive Water Bloc™ Lead Connection
- 316 SS and Wye-Delta Designs Available – Consult Factory
Specifications
Specifications
Franklin Electric 8" Submersible Motor Specifications
- BODY CONSTRUCTION: 316 Stainless Steel
- HORSEPOWER: 150 HP
- VOLTAGE: 3ø, 575V
- RPM: 3525
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 12,500 lbs
- MAX AMBIENT TEMPERATURE: 167°F/75°C
- DUTY RATING: Continuous
- FULL LOAD AMPS: 155
- LEAD: 3-Wire, XPLE
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric 8" Hi-Temp 75C Submersible Motor Product Resources
Franklin Electric 8 in Hi-Temp 75C Motor Brochure
Franklin Electric 8 in Hi-Temp 75 Catalog Pages
