Franklin Electric 6" Submersible Motors

Some pumping applications require more - and Franklin's Hi-Temp Motor line delivers just that. The Hi-Temp motor was designed and built in response to many requests for a motor that operates dependably in wells with high temperatures and/or low flow conditions.

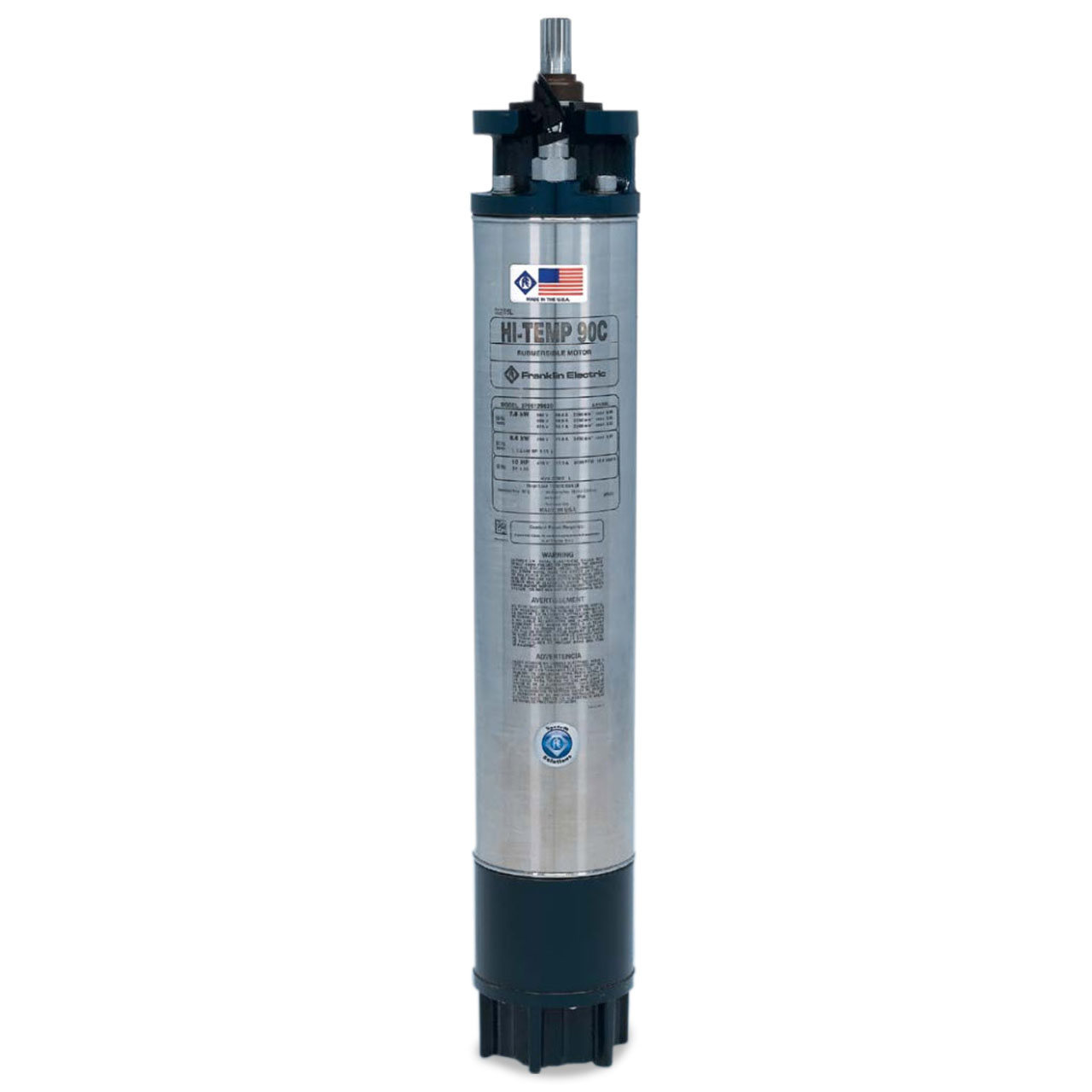

The 6-inch Hi-Temp 90C motor utilizes a new, premium encapsulation process and new water-soluble coolant to allow continuous operation in water temperatures of up to 90ºC. In addition, this design is capable of handling thrust loads 25% higher than a standard motor without using oil. Franklin's Hi-Temp 90C is the right choice for your demanding, high temperature well applications.

Franklin Electric 6" Submersible Motors Features

• Up to 194 °F (90 °C) Ambient Temperature.
• 100% Increase in Upthrust Capability at 30°C
• 25% Increase in Downthrust Capability at 30°C
• Wet Well, Reservoir, Low Flow Approved in 12” Diameter or Larger Wells with Ambient Water up to 87°F (30°C)
• High Temperature Leads
• Hermetically Sealed Stator
• Innovative High Temperature Winding Encapsulation System
• FES92 Exclusive Water Soluble, High Temperature Bearing Lubrication
• Double-Flange NEMA Mounting for Ease of Handling and Pump Mounting
• Stainless Steel Splined Shaft for Maximum Shaft/Coupling Contact
• Full 3450 RPM 60Hz Design Point for Superior Pump Performance
• Sand Fighter™ Sealing System
• Franklin Electric’s Exclusive Water-Bloc™ Lead Connection
• 316 SS and Wye-Delta - Consult Factory

Franklin Electric 6" Submersible Motor Specifications

• BODY CONSTRUCTION: 300 Series Stainless Steel
• HORSEPOWER: 40 HP
• VOLTAGE: 3ø, 460/380V
• RPM: 3450
• SERVICE FACTOR: 1.15/1.0
• DOWNWARD THRUST (lbs): 10,000 lbs
• MAX AMBIENT TEMPERATURE: 86°F/30°C
• DUTY RATING: Continuous
• LEAD: 3-wire, XPLE
