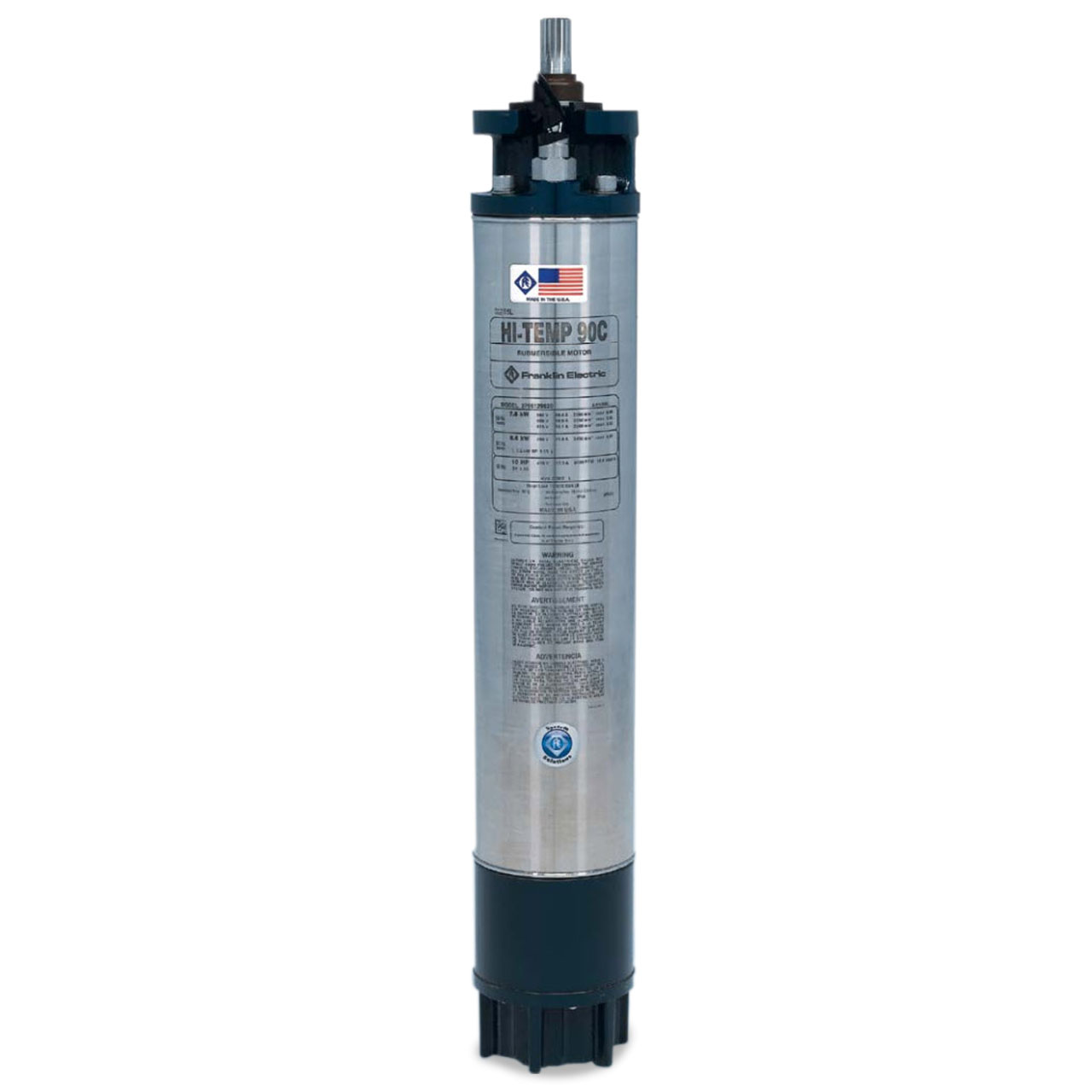

Franklin Electric 2766130003 Hi-Temp 90C Motor 6" 15-HP 460/380-Volt 60/50-Hz Three-Phase 3-Wire
Franklin Electric 2766130003 Hi-Temp 90C Motor 6" 15-HP 460/380-Volt 60/50-Hz Three-Phase 3-Wire
SKU : FEC2766130003
In Stock Quantity:0
:
:
Brand
:
Regular price
$9,653.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric 6" Hi-Temp 90C Submersible Motors
Some pumping applications require more - and Franklin's Hi-Temp Motor line delivers just that. The Hi-Temp motor was designed and built in response to many requests for a motor that operates dependably in wells with high temperatures and/or low flow conditions.
The 6-inch Hi-Temp 90C motor utilizes a new, premium encapsulation process and new water soluble coolant to allow continuous operation in water temperatures of up to 90ºC. In addition , this design is capable of handling thrust loads 25% higher than a standard motor without using oil. Franklin's Hi-Temp 90C is the right choice for your demanding, high temperature well applications.
Franklin Electric 6" Hi-Temp 90C Submersible Motors Features
- Up to 194 °F (90 °C) Ambient Temperature.
- 100% Increase in Upthrust Capability at 30°C
- 25% Increase in Downthrust Capability at 30°C
- Wet Well, Reservoir, Low Flow Approved in 12” Diameter or Larger Wells with Ambient Water up to 87°F (30°C)
- High Temperature Leads
- Hermetically Sealed Stator
- Innovative High Temperature Winding Encapsulation System
- FES92 Exclusive Water Soluble, High Temperature Bearing Lubrication
- Double-Flange NEMA Mounting for Ease of Handling and Pump Mounting
- Stainless Steel Splined Shaft for Maximum Shaft/Coupling Contact
- Full 3450 RPM 60Hz Design Point for Superior Pump Performance
- Sand Fighter™ Sealing System
- Franklin Electric’s Exclusive Water-Bloc™ Lead Connection
- 316 SS and Wye-Delta - Consult Factory
Specifications
Specifications
Franklin Electric 6" Submersible Motor Specifications
- BODY CONSTRUCTION: 300 Series Stainless Steel
- HORSEPOWER: 15 HP
- VOLTAGE: 3ø, 460/380V
- RPM: 3450
- SERVICE FACTOR: 1.15/1.0
- DOWNWARD THRUST (lbs): 4500 lbs
- MAX AMBIENT TEMPERATURE: 86°F/30°C
- DUTY RATING: Continuous
- FULL LOAD AMPS: 21.1
- LEAD: 3-wire, XPLE
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric 6" Hi-Temp 90C Submersible Motor Product Resources
Franklin Electric 6 in Hi-Temp 90C Motor Brochure
Franklin Electric 6 in Motor Catalog Pages
