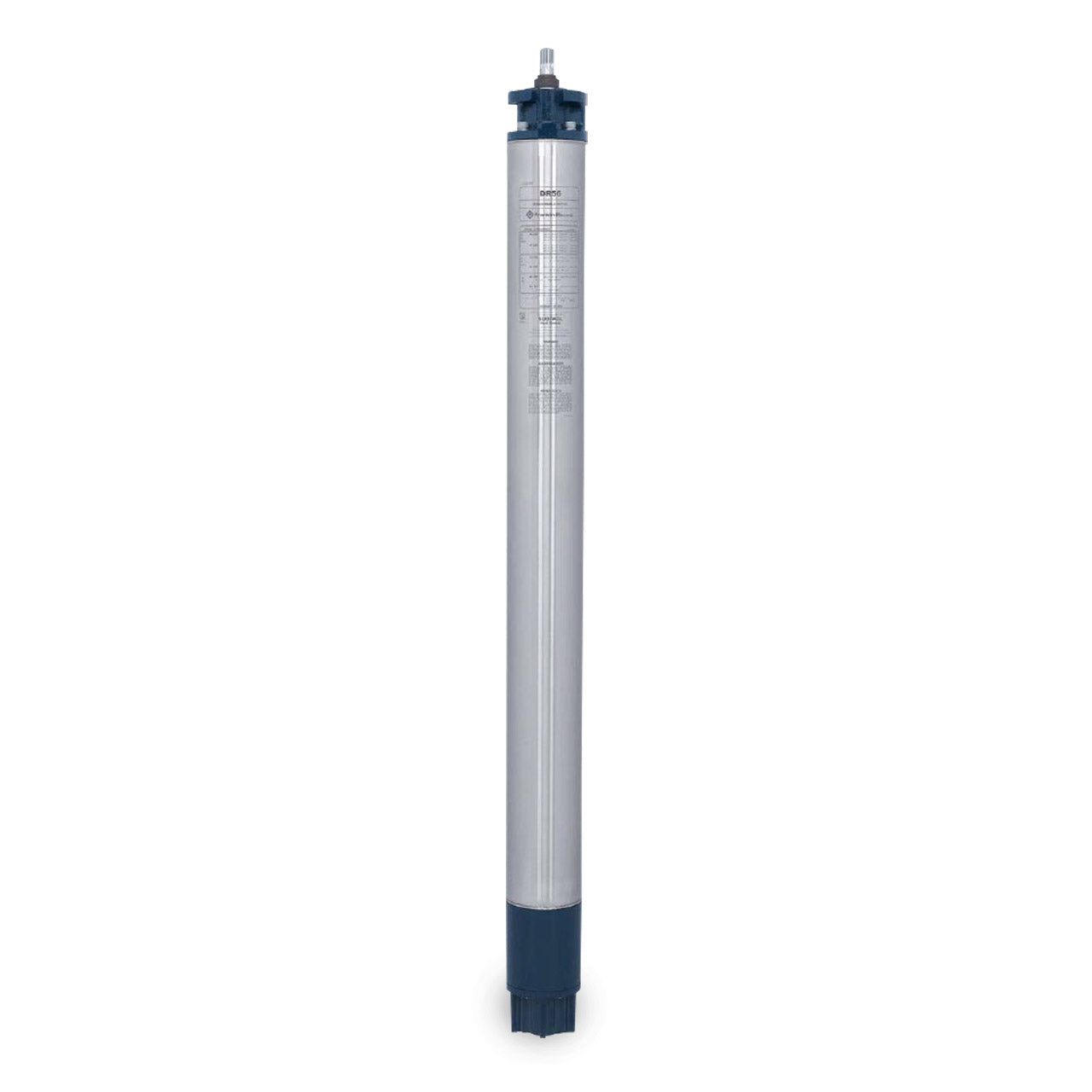

Franklin Electric 2760296262 DR56 Sand Fighter Motor- w/Subtrol 6" 60/50-HP 380-Volt 60-Hz Three-Phase 3-Wire
Franklin Electric 2760296262 DR56 Sand Fighter Motor- w/Subtrol 6" 60/50-HP 380-Volt 60-Hz Three-Phase 3-Wire
SKU : FEC2760296262
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric 6" DR56 Submersible Motors
Pumping applications are rapidly changing - and Franklin's DR56 motor was designed and built in response to many requests for a motor that can operate effectively under these evolving application demands. The DR56 6 inch motor utilizes Franklin's premium encapsulation process to allow continuous operation in water temperatures of up to 50 °C (provided minimum allowable rates of flow past the motor are maintained).
Franklin's DR56 is the right choice for your demanding, high temperature 6
inch well applications. DR56 motors are also rated for continuous duty up
to 86 F (30 C) water temperature with NO FLOW in lakes or in wells 12
inches or larger in diameter.
Franklin Electric 6" DR56 Submersible Motors Feature
- Up to 122 °F (50 °C) Ambient Temperature
- Hermetically Sealed Stator
- Innovative High Temperature Winding Encapsulation System
- 10,000 lb Kingsbury-Type Thrust Bearing
- FES91 Exclusive Water Soluble Bearing Lubrication
- Double-Flange NEMA Mounting for Ease of Handling and Pump Mounting
- Stainless Steel Splined Shaft for Maximum Shaft/Coupling Contact
- Full 3450 RPM 60 Hz Design Point for Superior Pump Performance
- Sand Fighter™ Sealing System
- Subtrol Heat Sensor Standard
- Franklin Electric's Exclusive Water-Bloc™ Lead Connection
- 316 SS and Wye-Delta Designs are Available, Consult Factory
Specifications
Specifications
Franklin Electric 6" DR56 Submersible Motor Specifications
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 60/50 HP
- VOLTAGE: 3ø, 380V
- RPM: 3525
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 10,000 lbs
- MAX AMBIENT TEMPERATURE: 122°F/50°C
- DUTY RATING: Continuous
- LEAD: 3-Wire, XPLE
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric 6" DR56 Submersible Motor Product Resources
Franklin Electric 6 in DR56 Motor Brochure
Franklin Electric 6 in DR56 Motor Catalog Pages
