DISCONTINUED - 8-Inch Submersible Motors

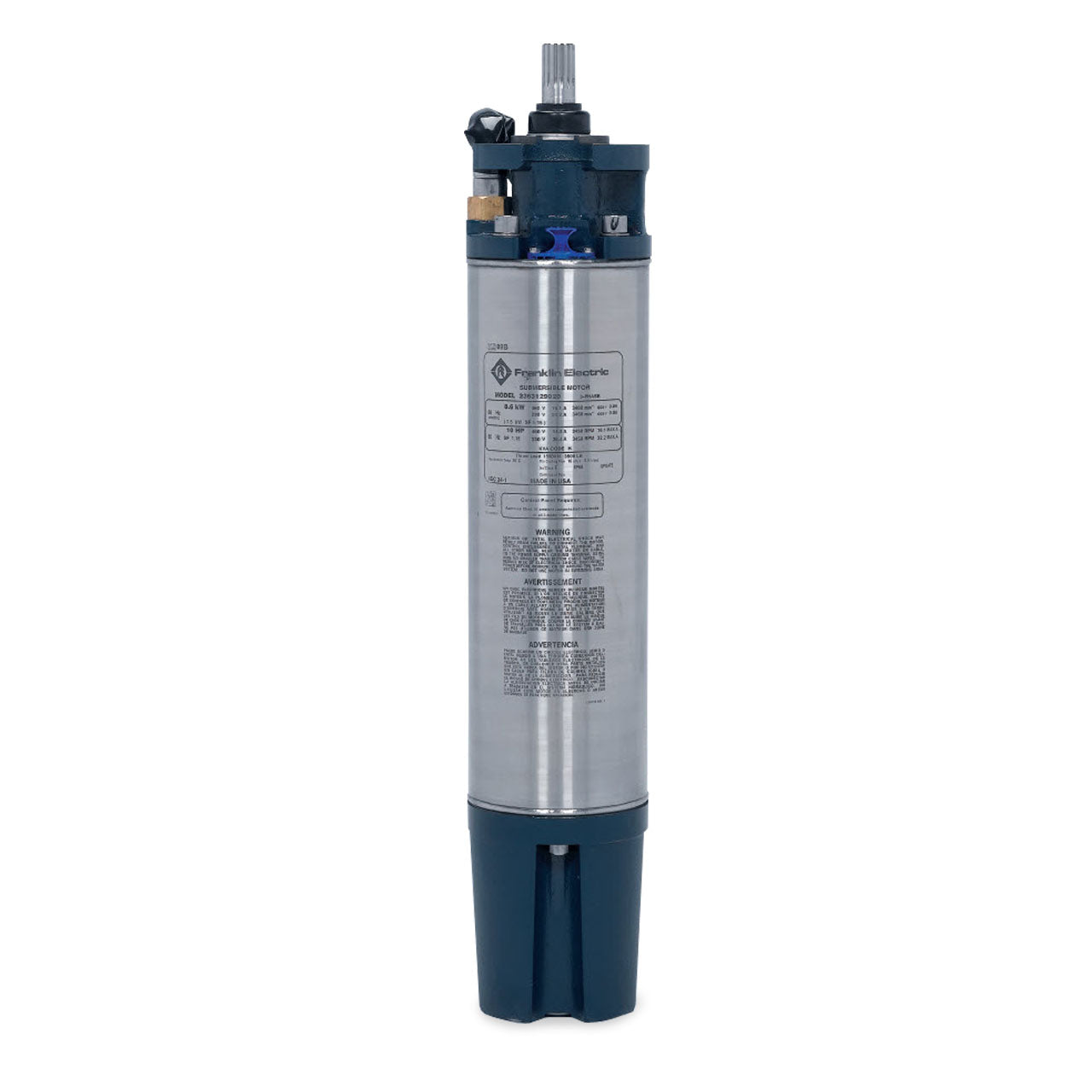

Franklin Electric 8" Submersible Motors

Franklin’s 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options:

• Standard – for most water wells
• Sand Fighter™ - for wells with high levels of abrasives
• Hi-Temp – for hot water and other harsh conditions
• Stainless Steel – for aggressive water

These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime. Typical applications that rely on our motors include: Agricultural, Municipal, Industrial, Mining, Booster, Reverse Osmosis, Oil & Gas.

Franklin Electric 8" Submersible Motors Application Data

These motors are built for vertical operation in 8” diameter or larger water wells. Temperature and time rating are continuous in 86 °F (30 °C) water at 1/2 ft./sec. flow past motor. Rotation is electrically reversible.

Franklin Electric 8" Submersible Motors Features

• Full 3525 RPM 60 Hz Design Point for Superior Pump head and Flow Yield
• Maximum Temperature Winding Wire NEMA Class 200
• Double Flange Design for Ease of Handling and Pump Mounting
• Splined Shaft for Maximum Shaft and Coupling Contact
• Resin Encapsulated Windings
• Hermetically-Sealed Stator
• Copper Bar Rotor Provides Consistent Design Performance
• Carbon Ceramic Rotating Face Seal
• Kingsbury-Type Water-Lubricated Thrust Bearing
• FES91 Exclusive Water Based Bearing Lubrication
• Pressure-Equalizing Diaphragm
• Water-Bloc™ Lead Connection
• 3-Lead and 6-Lead (wye-delta) Configurations
• Pre-Filled with Temperature-Resistant Fill Solution
• Sand Fighting Slinger
• Equipped with Subtrol Heat Sensor
