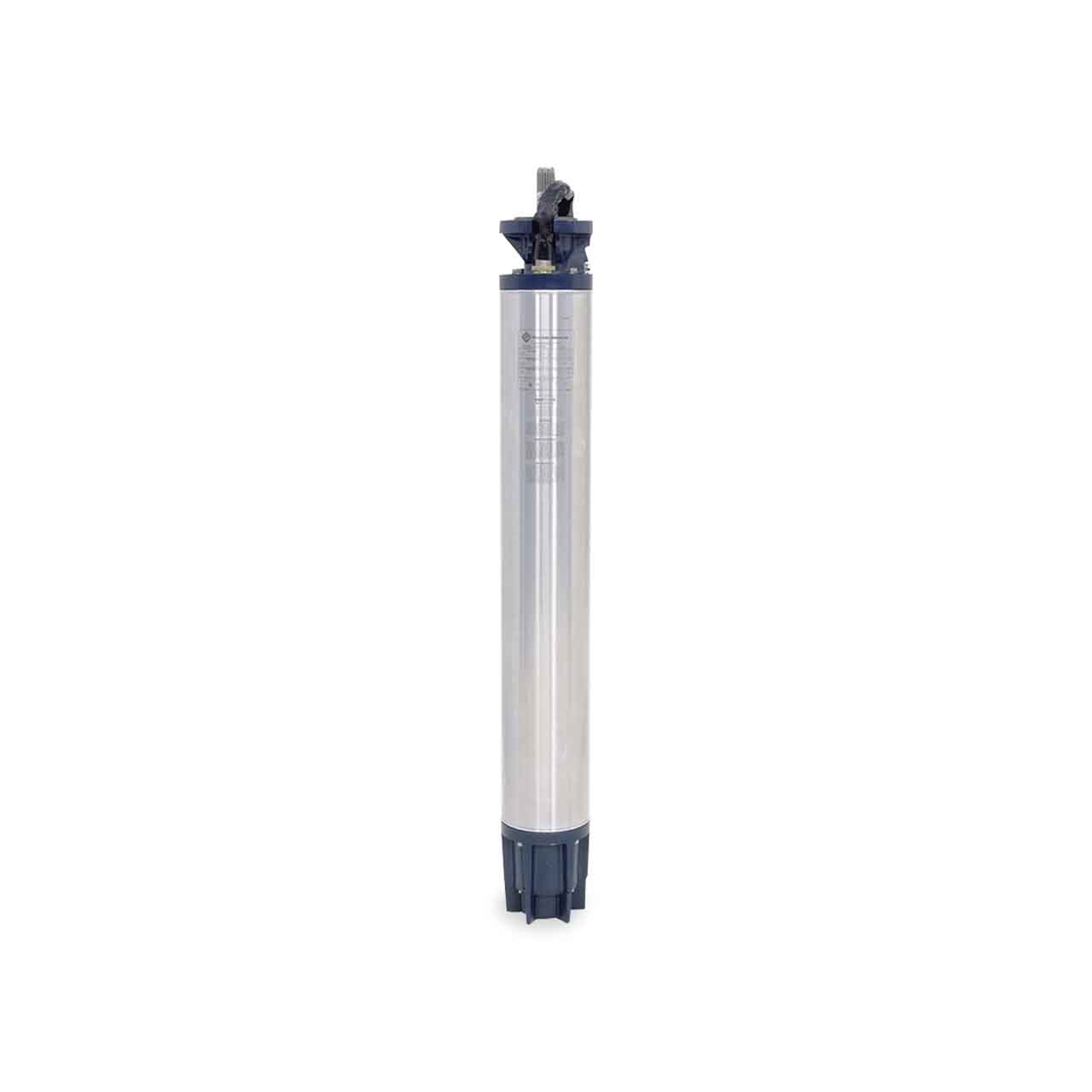

Franklin Electric 8" Submersible Motors

Franklin’s 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options:

• Standard – for most water wells
• Sand Fighter™ - for wells with high levels of abrasives
• Hi-Temp – for hot water and other harsh conditions
• Stainless Steel – for aggressive water

These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime. Typical applications that rely on our motors include: Agricultural, Municipal, Industrial, Mining, Booster, Reverse Osmosis, Oil & Gas.

Franklin Electric 8" Submersible Motors Features

• Full 3525 RPM Design Point for Superior Pump Head and Flow Yield
• Winding Encapsulated in Anti-Tracking Resin
• Hermetically-Sealed Stator Area
• Kingsbury-Type Water Lubricated Thrust Bearing
• FES91 Exclusive Water Based Bearing Lubrication
• Water Bloc™ Removable Lead Connection
• Double Flanged Design for Ease of Handling and Pump Mounting
• Spline Shaft for Maximum Shaft and Coupling Contact
• Copper Bar Rotor Provides Consistent Design Performance
• Pressure Equalizing Diaphragm
• Subtrol Heat Sensors Standard on all 8” Encapsulated 30 °C Motors
• 3-Lead and 6-Lead (wye-delta) Configurations
• Pre-Filled with Temperature-Resistant Fill Solution

Franklin Electric 8" Submersible Motor Specifications

• BODY CONSTRUCTION: 316 Stainless Steel
• HORSEPOWER: 125 HP
• VOLTAGE: 3ø, 460/380V
• RPM: 3525/2900
• SERVICE FACTOR: 1.15/1.0
• DOWNWARD THRUST (lbs): 10,000 lbs
• MAX AMBIENT TEMPERATURE: 86°F/30°C
• DUTY RATING: Continuous
• LEAD: 6-Wire, XPLE
