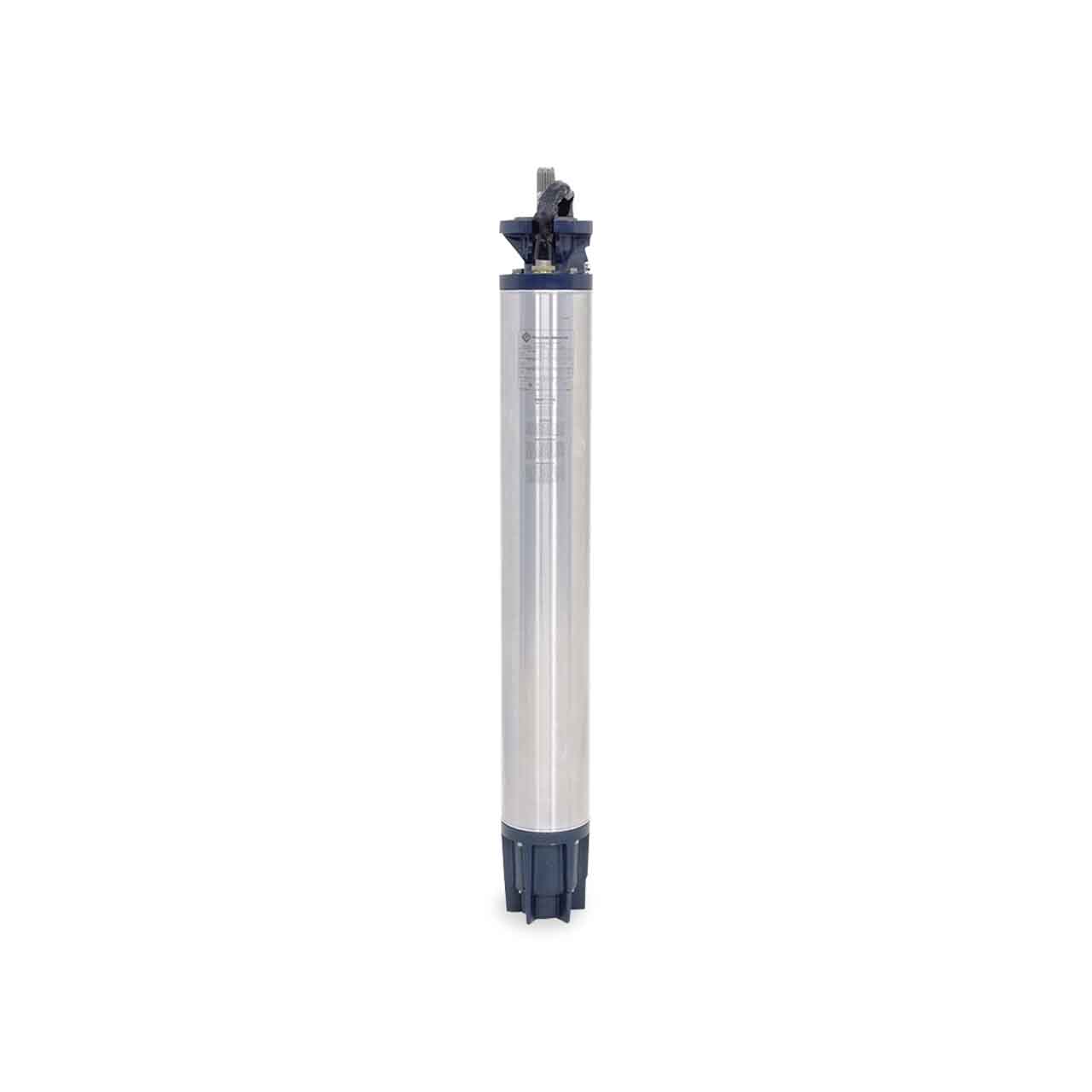

Franklin Electric 2391186204 316 SS Motor 8" 200 HP 575-Volt 60-Hz 3-Phase 3-Wire
Franklin Electric 2391186204 316 SS Motor 8" 200 HP 575-Volt 60-Hz 3-Phase 3-Wire
SKU : FEC2391186204
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric 8" Submersible Motors
Franklin’s 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options:
- Standard – for most water wells
- Sand Fighter™ - for wells with high levels of abrasives
- Hi-Temp – for hot water and other harsh conditions
- Stainless Steel – for aggressive water
These motors provide large amounts of water for irrigation, community water
systems, and factories where large flows or pressures are required. We
understand how important it is to produce reliable systems to avoid
significant costs due to failure or downtime. Typical applications that
rely on our motors include: Agricultural, Municipal, Industrial, Mining,
Booster, Reverse Osmosis, Oil & Gas.
Franklin Electric 8" Submersible Motors Features
- Full 3525 RPM Design Point for Superior Pump Head and Flow Yield
- Winding Encapsulated in Anti-Tracking Resin
- Hermetically-Sealed Stator Area
- Kingsbury-Type Water Lubricated Thrust Bearing
- FES91 Exclusive Water Based Bearing Lubrication
- Water Bloc™ Removable Lead Connection
- Double Flanged Design for Ease of Handling and Pump Mounting
- Spline Shaft for Maximum Shaft and Coupling Contact
- Copper Bar Rotor Provides Consistent Design Performance
- Pressure Equalizing Diaphragm
- Subtrol Heat Sensors Standard on all 8” Encapsulated 30 °C Motors
- 3-Lead and 6-Lead (wye-delta) Configurations
- Pre-Filled with Temperature-Resistant Fill Solution
Specifications
Specifications
Franklin Electric 8" Submersible Motor Specifications
- BODY CONSTRUCTION: 316 Stainless Steel
- HORSEPOWER: 200 HP
- VOLTAGE: 3ø, 575V
- RPM: 3525
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 10,000 lbs
- MAX AMBIENT TEMPERATURE: 86°F/30°C
- DUTY RATING: Continuous
- FULL LOAD AMPS: 197
- LEAD: 3-Wire, XPLE
