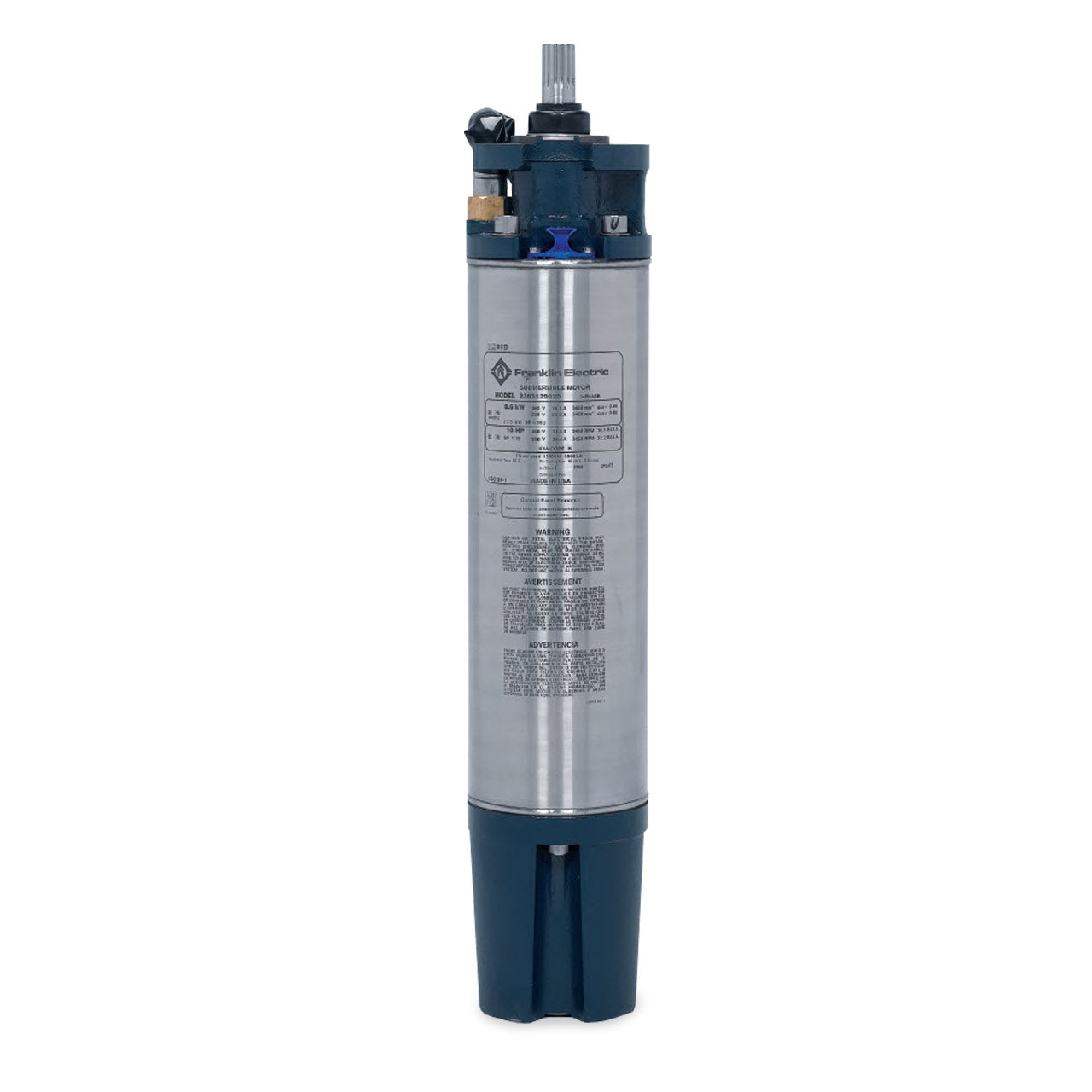

Franklin Electric 2363118120 Volt-X Sand Fighter Motor w/Subtrol 6" 7.5-HP 230/460-Volt 60-Hz Three-Phase 3-Wire
Franklin Electric 2363118120 Volt-X Sand Fighter Motor w/Subtrol 6" 7.5-HP 230/460-Volt 60-Hz Three-Phase 3-Wire
SKU : FEC2363118120
In Stock Quantity:0
:
:
Brand
:
Regular price
$3,990.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric 6" Volt-X Submersible Motors
Franklin’s 6-inch submersible motors are typically used in large, demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last and come in a variety of construction options.
6-inch Volt-X motors are built with a unique dual voltage feature offering power supply flexibility. The motors utilize an innovative voltage change device that allows the motor to be connected for operation in either 230 V or 460 V, three-phase, 60 Hz power supplies. The voltage exchange device has been meticulously developed for ease of removal and a watertight seal every time.
Franklin Electric 6" Submersible Motor Application Data
6-inch Volt-X motors are built with a unique dual-voltage feature offering power supply flexibility.
Franklin Electric 6" Submersible Motors Feature
- New Jam-Nut Style VCD Plug Device
- Maximum Temperature Winding Wire NEMA Class 200
- Anti-Track Self-Healing Resin System
- Hermetically-Sealed Windings
- Removable Water-Bloc™ Lead
- Double Flange Design
- Stainless Steel Splined Shaft
- Kingsbury-Type Water Lubricated Thrust Bearing
- Pressure-Equalizing Diaphragm
- Sand Slinger
- 3-Lead Configuration
- Copper Bar Rotor
- Full 3450 RPM Design Point
- Filter Check Valve
- Sand Fighter™ Models Available for Sandy Wells
Specifications
Specifications
Franklin Electric 6" Volt-X Submersible Motor Specifications
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 7.5 HP
- VOLTAGE: 3ø, 230/460V
- RPM: 3450
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 3500 lbs
- MAX AMBIENT TEMPERATURE: 86°F/30°C
- DUTY RATING: Continuous
- LEAD: 3-wire, XPLE
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric 6" Submersible Motor Product Resources
Franklin Electric 6 in Volt-X Motor Brochure
Franklin Electric 6 in Volt-X Changing Motor Voltage
