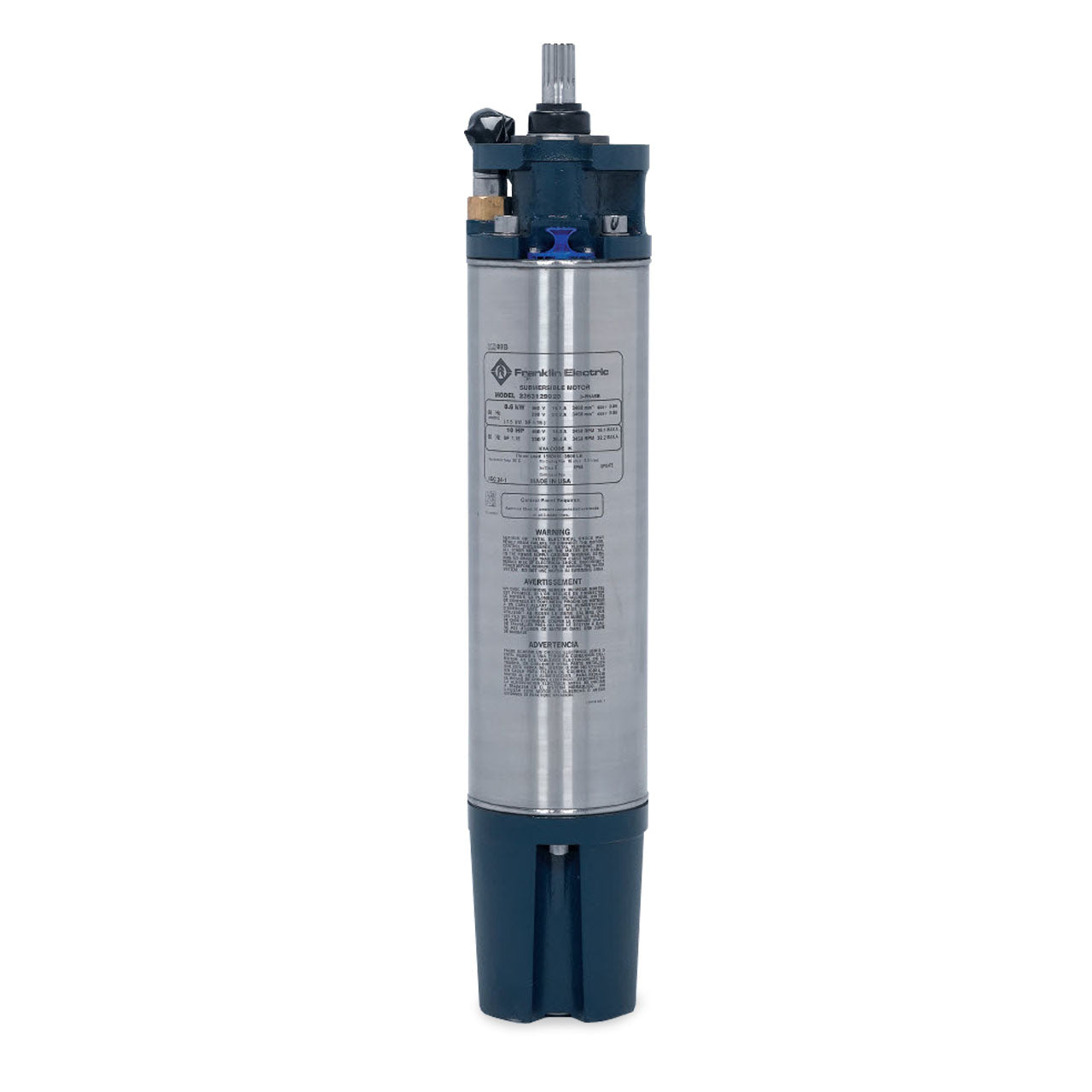

Franklin Electric 6" Volt-X Submersible Motors

Franklin’s 6-inch submersible motors are typically used in large, demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last and come in a variety of construction options.

6-inch Volt-X motors are built with a unique dual voltage feature offering power supply flexibility. The motors utilize an innovative voltage change device that allows the motor to be connected for operation in either 230 V or 460 V, three-phase, 60 Hz power supplies. The voltage exchange device has been meticulously developed for ease of removal and a watertight seal every time.

Franklin Electric 6" Submersible Motor Application Data

6-inch Volt-X motors are built with a unique dual-voltage feature offering power supply flexibility.

Franklin Electric 6" Submersible Motors Feature

• New Jam-Nut Style VCD Plug Device
• Maximum Temperature Winding Wire NEMA Class 200
• Anti-Track Self-Healing Resin System
• Hermetically-Sealed Windings
• Removable Water-Bloc™ Lead
• Double Flange Design
• Stainless Steel Splined Shaft
• Kingsbury-Type Water Lubricated Thrust Bearing
• Pressure-Equalizing Diaphragm
• Sand Slinger
• 3-Lead Configuration
• Copper Bar Rotor
• Full 3450 RPM Design Point
• Filter Check Valve
• Sand Fighter™ Models Available for Sandy Wells

Franklin Electric 6" Volt-X Submersible Motor Specifications

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 5.0 HP
• VOLTAGE: 3ø, 230/460V
• RPM: 3450
• SERVICE FACTOR: 1.15
• DOWNWARD THRUST (lbs): 3500 lbs
• MAX AMBIENT TEMPERATURE: 86°F/30°C
• DUTY RATING: Continuous
• LEAD: 3-wire, XPLE
