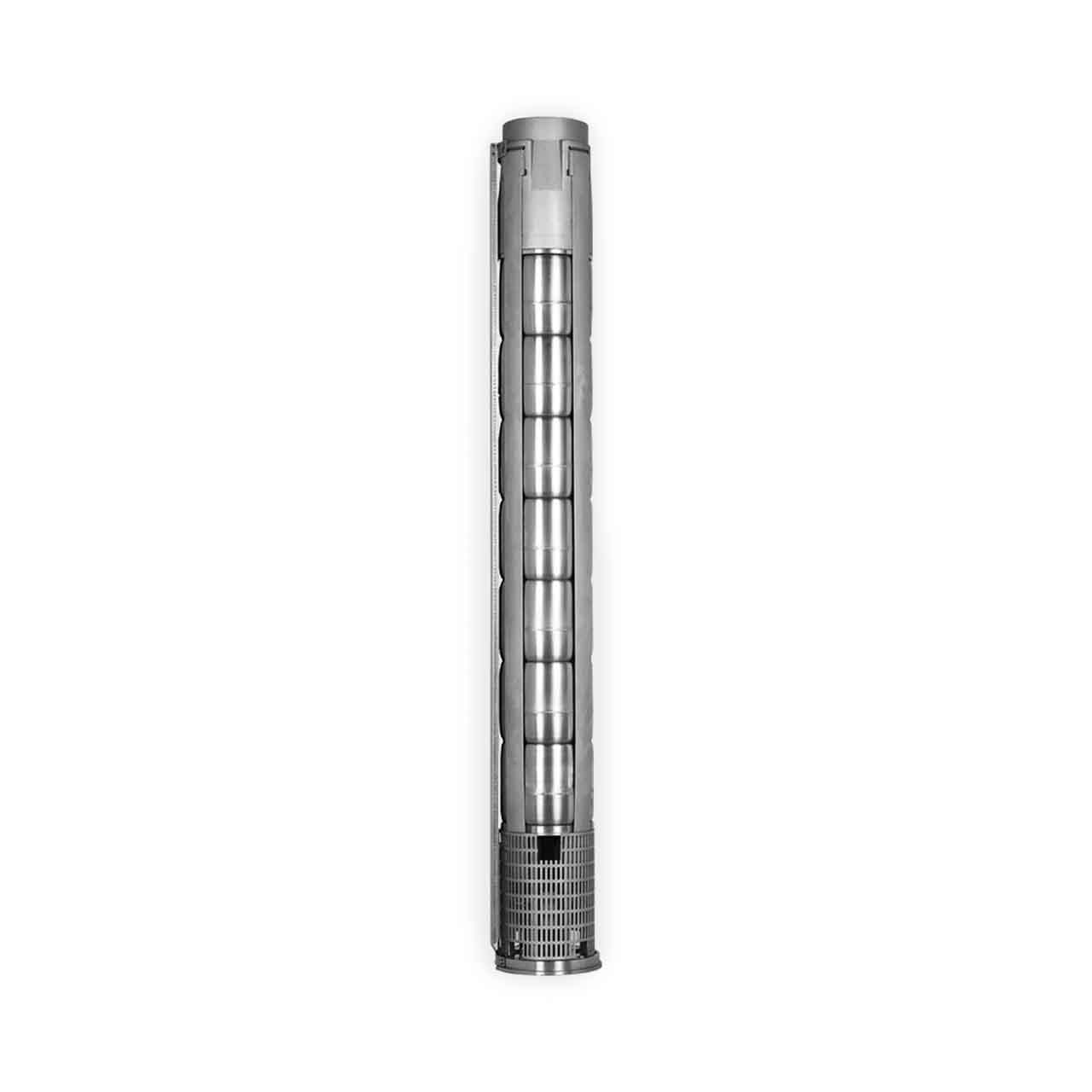

Franklin Electric 6-Inch SSI Submersible Turbine Pump

The SSI Series Submersible Pumps meet the demanding pumping challenges in irrigation, agricultural, industrial, and municipal applications. Available in 6-inch, 8-inch, and 10-inch models with flows up to 1300 GPM, this stamped stainless steel pump family is fully serviceable and corrosion resistant. Its I-Blade technology offers stronger internal components for improved efficiency, while tungsten inert gas (TIG) progressive welding creates stronger welds.

Franklin Electric 6-Inch SSI Submersible Turbine Pump Applications

• Irrigation
• Agricultural
• Municipal
• Commercial
• De-Watering

Franklin Electric 6-Inch SSI Submersible Turbine Pump Features

• High-Volume Solution: Features Flows up to 1300 GPM to Meet High-Volume Pumping Application Demand
• Simple, Modern Design: Stamped Stainless Steel Pump Family is Fully Serviceable
• Unique Construction: I-Blade Technology, Exclusive to Franklin Electric, Increases the Structural Integrity of the Pump's Internal Components, Pumping More Water Per Horsepower and Improving Efficiency when Compared to Traditional Impeller Designs
• Rugged: Utilizing Tungsten Inert Gas (TIG) Progressive Welding, the Metal Materials are Mixed During the Process, Creating a Stronger Bond for Durability in Harsh Environments
• Reliable: Integrated Check Valves Eliminate Back Flow, and Round Shafts Increase Durability in Abrasive Environments
• Easy Sizing: FE Select Allows for Simplified Sizing, Quoting and Product Identification
• Availability; Build Center Program Capability Allows for Speedier Delivery Time from Distributors to Contractors

Franklin Electric 225SSI15F66-0664 Submersible Turbine Pump Specifications

• DISCHARGE SIZE: 4.0” NPT
• NOMINAL FLOW RATING: 225 GPM
• HORSEPOWER: 15 HP
• MAXIMUM CAPACITY: 290 GPM
• MAXIMUM HEAD: 320’
• STAGES: 6
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Stainless Steel
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 140°F / 60°C

Franklin Electric 6-Inch SSI Submersible Turbine Pump 225 GPM Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric SSI Submersible Turbine Pump Product Resources

Download Franklin Electric SSI Submersible Turbine Pump Brochure

Download Franklin Electric SSI Submersible Turbine Pump Catalog Pages

Download Franklin Electric SSI Submersible Turbine Pump Manual
