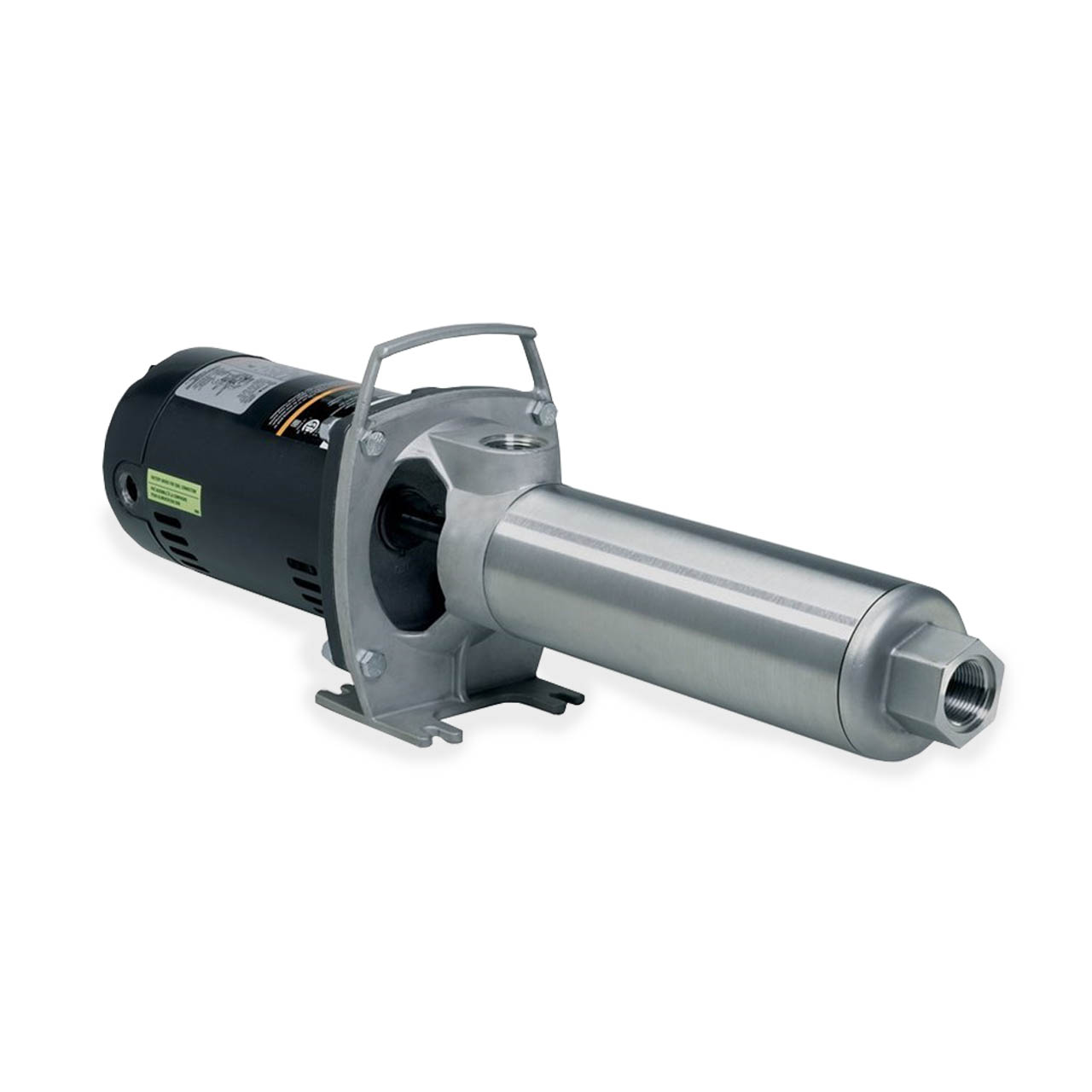

Franklin Electric 20FBT07S4 High Performance Stainless Steel Booster Pumps 0.75 HP 115/230V 1 Phase 20 GPM
Franklin Electric 20FBT07S4 High Performance Stainless Steel Booster Pumps 0.75 HP 115/230V 1 Phase 20 GPM
SKU : FEC95832015
In Stock Quantity:0
:
Brand
:
Regular price
$1,796.90 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric High Performance Booster Pump Description
The BT4 Horizontal Booster Pump is a low to medium capacity, high pressure, multi-stage unit. The BT4 can function as a multi-purpose high pressure pump, boosting water pressure from either city mains or private water systems. It is also ideal for applications that require more pressure than flow. Size ranges from 5 GPM to 25 GPM.
Franklin Electric Booster Pump Applications
- Boosting Water Pressure From City Mains or Private Water Systems
- Pressure Washing Buildings and Floors
- Poultry Houses
- Spray Cooling Equipment
- Lawn and Crop Irrigation
- Evaporative Cooling System Misters
- Water Circulation
- General Purpose Plumbing
- Reverse Osmosis (Stainless Steel BT4)
- Filtration (Stainless Steel BT4)
Franklin Electric High Performance Booster Pump Features
- Designed for Boosting Water Pressure from a Variety of Sources Including Municipal and Private Water Systems
- Stainless Steel Discharge Head on all Models
- Stainless Steel Motor Bracket with a Rugged Support Foot for Horizontal or Vertical Mounting and a Handle for Portability of the Unit
- 1-Inch Suction and 1-Inch Discharge are the Same Across the Entire Line, Simplifying Installation and Maintenance
- Built by Franklin Electric's Patented (U.S. Patent 7,290,984) Tri-Seal Floating Stage System, For Maximum Efficiency, Longevity and Performance
- Assembled with the Highest Quality Materials of Construction, Such as Acetal for Impellers.
- Modified PPO Mechanical Seal for Corrosive Fluids
- Easily Serviced Through a Back Pull-Out Design, Which Leaves All Plumbing and the Pump Undisturbed in Their Original Location
- Industry Proven Square Flange Motors
- Single-Phase: 1/2 Through 2 HP Motors are Dual Voltage, Set to Run with Either 115 V or 230 V Incoming Power, While 3 HP are 230 V Only
- Three-Phase Also Available: 1/2 Through 3 HP Motors are Dual Voltage Set to Run with Either 208-230 V or 460 V Incoming Power
- Shut-Off Pressures up to 270 PSI, Flow Rates from 5 to 25 GPM and Temperatures up to 120 °F / 49 °C
- Designed for Industrial Applications
Specifications
Specifications
Franklin Electric 20FBT07S4 Booster Pump Specifications
- DISCHARGE SIZE: 1.0" FNPT
- INLET SIZE: 1.0" FNPT
- MAXIMUM CAPACITY: 29 GPM
- MAXIMUM HEAD: 190'
- IMPELLER DESIGN: Floating Stack
- BODY CONSTRUCTION: Stainless Steel
- HORSEPOWER: 0.75
- MOTOR TYPE: 2-Compartment Dual-Voltage; ODP
- VOLTAGE: 1ø, 115/230V
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Franklin Electric High Performance Booster Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric High Performance Booster Pump Resources
Franklin Electric High Performance Booster Pump Product Pages
Franklin Electric High Performance Booster Pump Owner's Manual
