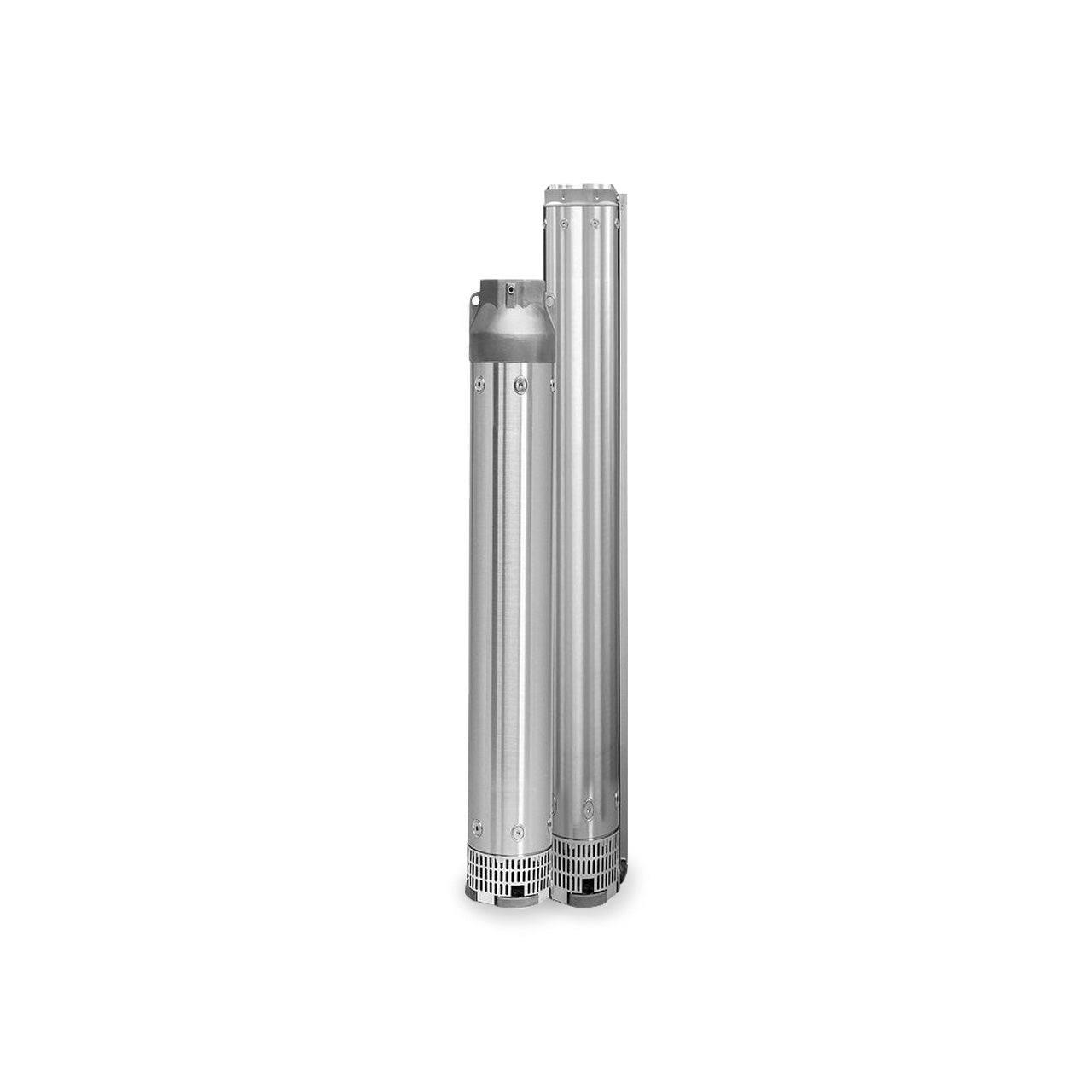

Franklin Electric 175SR40F66-1463 6-Inch SR Submersible Turbine Pump 175 GPM 40 HP
Franklin Electric 175SR40F66-1463 6-Inch SR Submersible Turbine Pump 175 GPM 40 HP
SKU : FEC97160175014
In Stock Quantity:0
:
:
Brand
:
Regular price
$11,681.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric 6-Inch SR Submersible Turbine Pump
The SR Series submersible turbine pump is designed specifically to meet a variety of applications. With stainless steel impellers and diffusers, a stainless-steel shell to maintain alignment and heavy investment cast stainless steel suction and discharge brackets, the SR Series submersible turbine pump is equipped to operate efficiently and handle the most demanding conditions.
Franklin Electric 6-Inch SR Submersible Turbine Pump Applications
- Industrial
- Agricultural
- Irrigation
- Commercial
Franklin Electric 6-Inch SR Submersible Turbine Pump Features
- Stainless Steel Impellers and Diffusers to Resist Corrosion
- Heavy-Duty Stainless Steel Shell Assures Permanent Alignment of all Components to Increase Longevity and Enables Higher Pressures than Strap Designs
- PTFE Floating Wear Ring, Ceramic Bearing Journal, and Nitrile Rubber Fluted Bearing Ensure Durability Against Wear for Long-Lasting Performance and Reliability
- Suited to Operate in Horizontal Position
- Built-In Check Valve to Protect the Pump Against Water Hammer
- Energy-Efficient Hydraulic Design for Cost Effective Operation
- Space-Saving Compact Design.
- Easy to Install and Dismantle for Service in the Field if Necessary.
- Maximum Operating Temperature - 140 °F / 60 °C (304SS) and 194 °F / 90 °C (316SS).
Specifications
Specifications
Franklin Electric 175SR40F66-1463 Submersible Turbine Pump Specifications
- DISCHARGE SIZE: 3.0” NPT
- NOMINAL FLOW RATING: 175 GPM
- HORSEPOWER: 40 HP
- MAXIMUM CAPACITY: 240 GPM
- MAXIMUM HEAD: 1050’
- STAGES: 14
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 140°F / 60°C
Franklin Electric 6-Inch SR Submersible Turbine Pump 175 GPM Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SR Submersible Turbine Pump Product Resources
Download Franklin Electric SR Submersible Turbine Pump Brochure
Download Franklin Electric 6-Inch SR Submersible Turbine Pump Specifications
