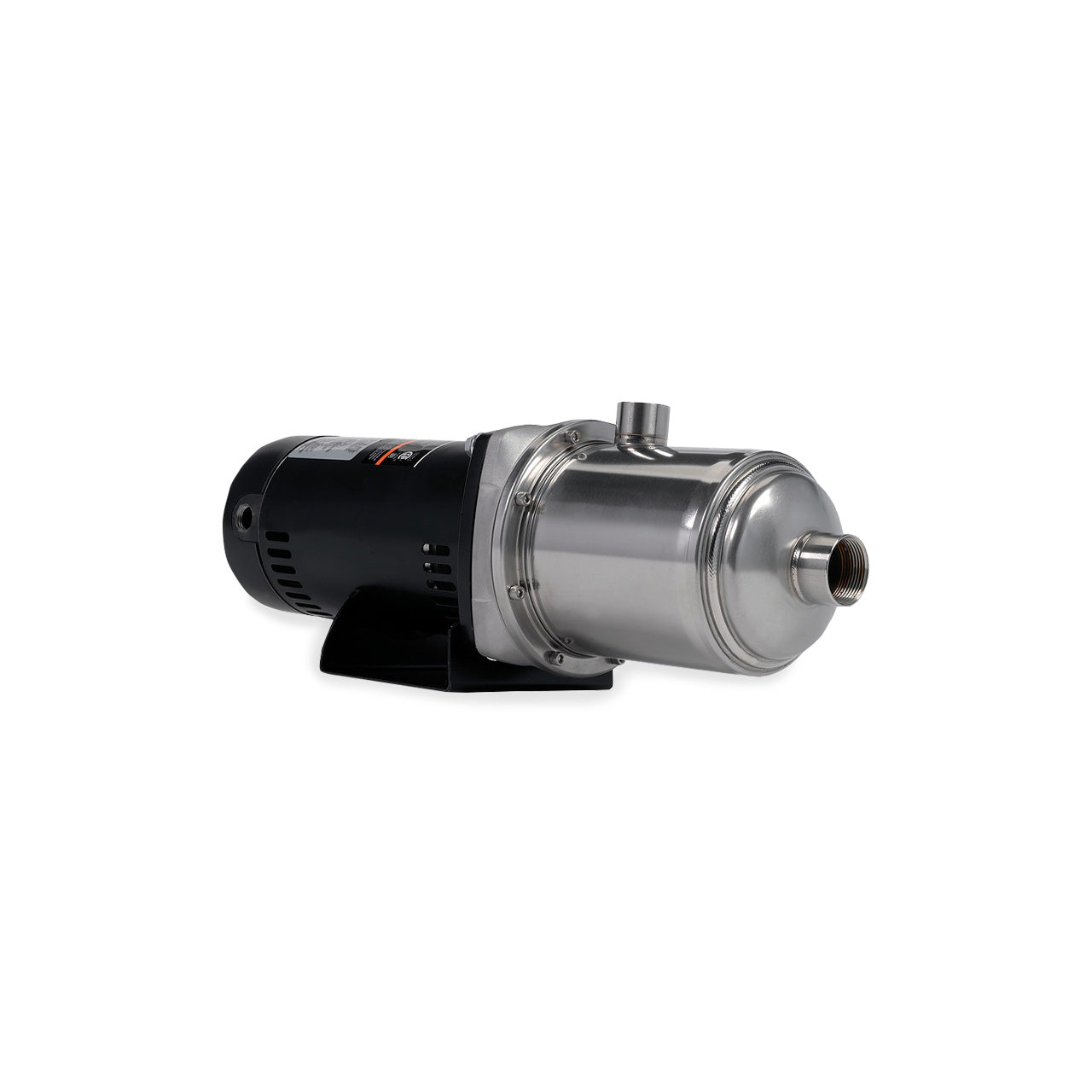

Franklin Electric 15FMH05S2 Horizontal Multi-Stage Booster Pump 0.5 HP 115/230V 1PH 15 GPM

Franklin Electric 15FMH05S2 Horizontal Multi-Stage Booster Pump 0.5 HP 115/230V 1PH 15 GPM

Usually ships within 1 week

SKU : FEC96061500

In Stock Quantity:0

:
Brand : Franklin Electric
$1,404.65 USD
Shipping calculated at checkout.

Description

Franklin Electric

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Description

The FPS MH Series, Multi-Stage Booster Pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications. The MH Series is offered in three flow rates and five different horsepower sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Applications

  • Pressure Boosting
  • Water Transfer
  • Turf Irrigation
  • Residential Lawn Sprinkler Systems
  • Wash Down Applications
  • Commercial Water Features
  • Fountains

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Features

  • All 300-Series Stainless Steel Wetted Components
  • High Service Factor Motors
  • Able to Pump Fluids at Temperatures up to 225 °F
  • Can Operate in Suction Lift Installation up to 10 Feet
  • Available in Flow Rates of 15, 30 and 45 GPM
  • Five Motor Horsepower Size Options in Single-Phase or Three-Phase
  • High Pressure Capabilities up to 140 PSI
  • Certified for Indoor and Outdoor Use
  • NSF/ANSI/CAN 372 Certified

Specifications

Franklin Electric 15FMH05S2 Horizontal Multi-Stage Booster Pump Specifications

  • DISCHARGE SIZE: 1.0" FNPT
  • INLET SIZE: 1.25" FNPT
  • MAXIMUM CAPACITY: 27 GPM
  • MAXIMUM HEAD: 115'
  • IMPELLER MATERIAL: Stainless Steel
  • BODY CONSTRUCTION: Stainless Steel
  • HORSEPOWER: 0.5 HP
  • STAGES: 2
  • VOLTAGE: 1ø, 115/230V
  • MAXIMUM LIQUID TEMPERATURE: 225°F / 107°C

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Resources


Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Product Catalog

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Owner's Manual

Franklin Electric Pump Replacement Parts Catalog
