The FPS MH Series, Multi-Stage Booster Pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications. The MH Series is offered in three flow rates and five different horsepower sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Applications

• Pressure Boosting
• Water Transfer
• Turf Irrigation
• Residential Lawn Sprinkler Systems
• Wash Down Applications
• Commercial Water Features
• Fountains

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Features

• All 300-Series Stainless Steel Wetted Components
• High Service Factor Motors
• Able to Pump Fluids at Temperatures up to 225 °F
• Can Operate in Suction Lift Installation up to 10 Feet
• Available in Flow Rates of 15, 30 and 45 GPM
• Five Motor Horsepower Size Options in Single-Phase or Three-Phase
• High Pressure Capabilities up to 140 PSI
• Certified for Indoor and Outdoor Use
• NSF/ANSI/CAN 372 Certified

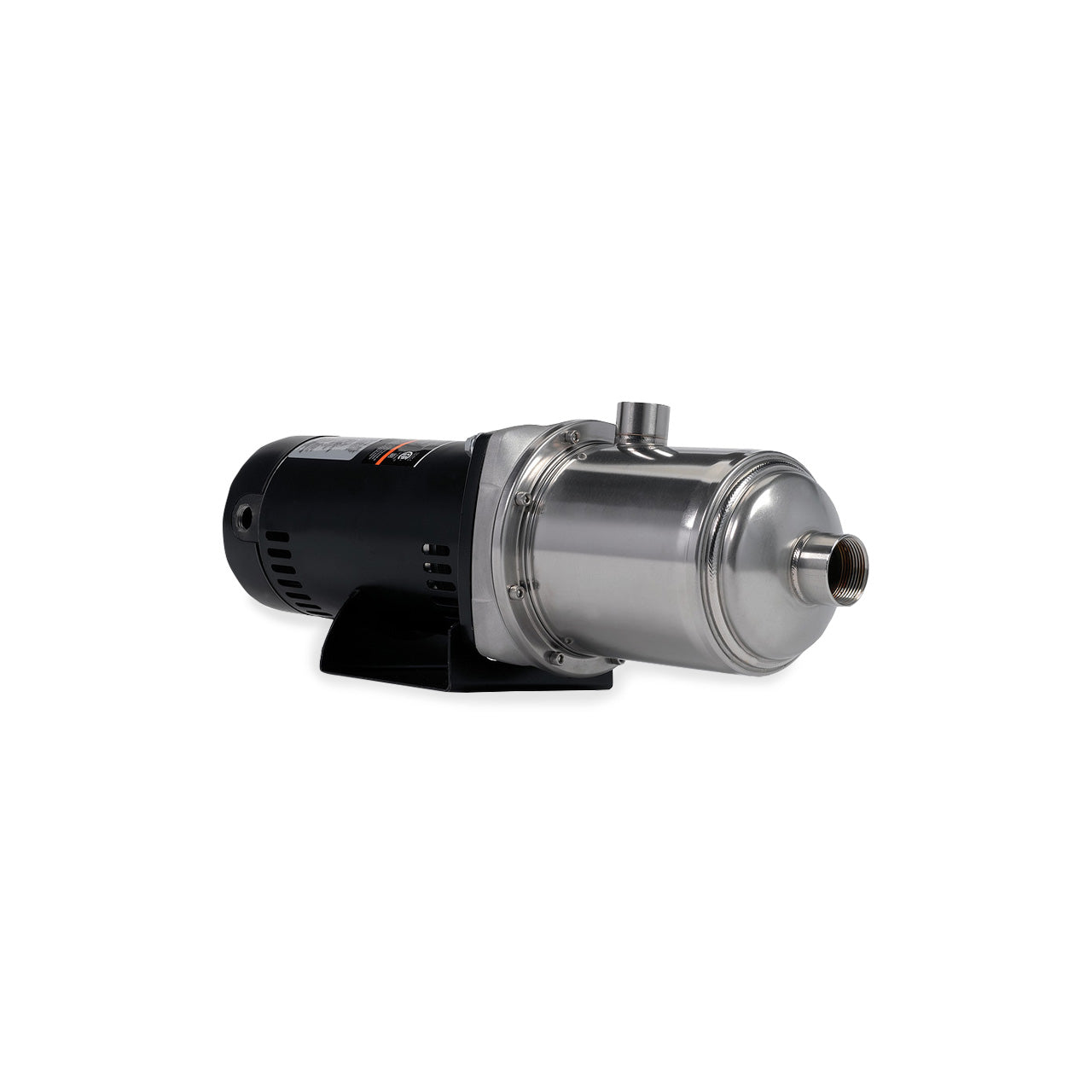

Franklin Electric 15FMH05S2 Horizontal Multi-Stage Booster Pump Specifications

• DISCHARGE SIZE: 1.0" FNPT
• INLET SIZE: 1.25" FNPT
• MAXIMUM CAPACITY: 27 GPM
• MAXIMUM HEAD: 115'
• IMPELLER MATERIAL: Stainless Steel
• BODY CONSTRUCTION: Stainless Steel
• HORSEPOWER: 0.5 HP
• STAGES: 2
• VOLTAGE: 1ø, 115/230V
• MAXIMUM LIQUID TEMPERATURE: 225°F / 107°C

Franklin Electric MH Series Horizontal Multi-Stage Booster Pump Curve
