Franklin Electric 150SR10F66-0463 6-Inch SR Submersible Turbine Pump 150 GPM 10 HP
Franklin Electric 150SR10F66-0463 6-Inch SR Submersible Turbine Pump 150 GPM 10 HP
SKU : FEC97160150004
In Stock Quantity:0
:
:
Brand
:
Regular price
$4,465.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

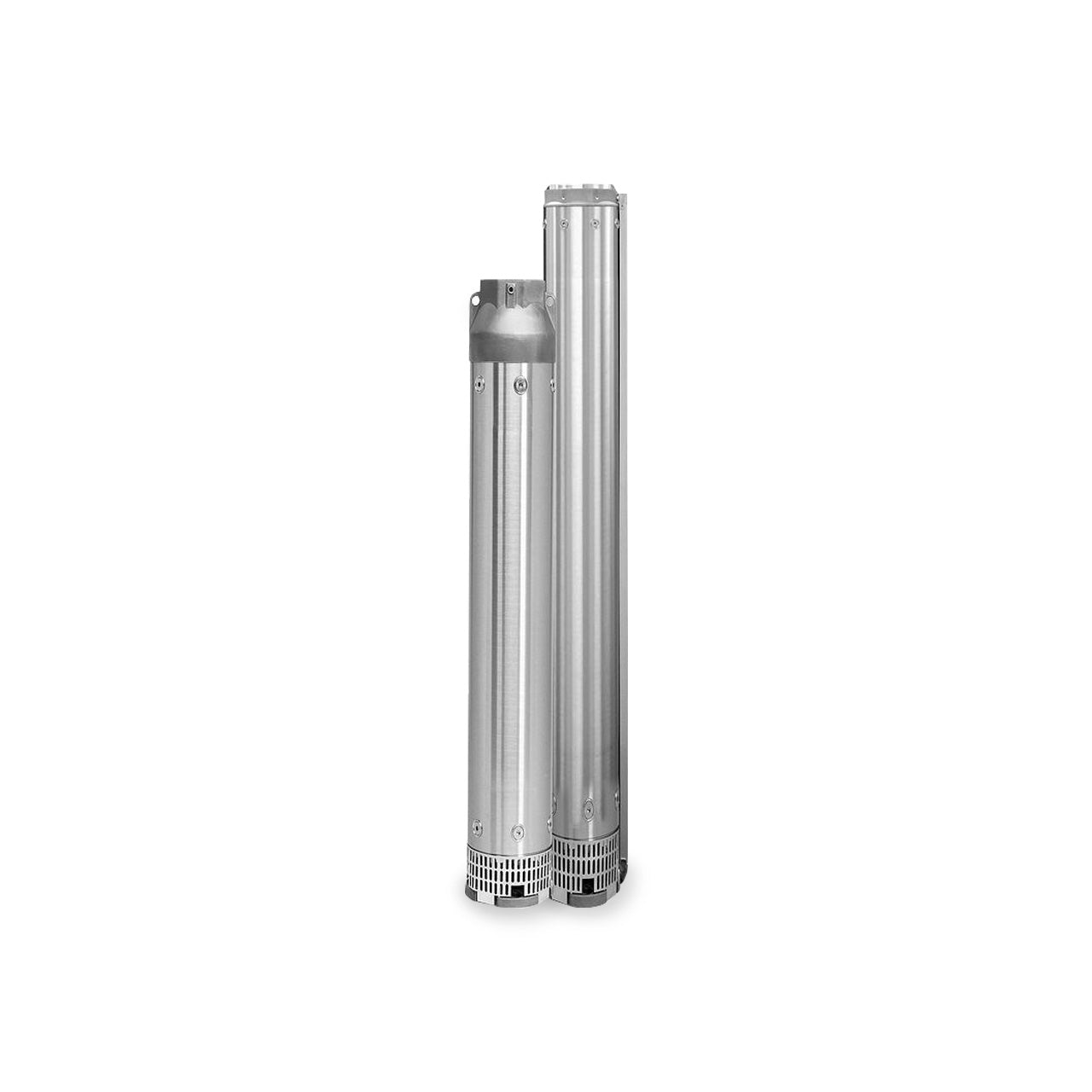

Franklin Electric 6-Inch SR Submersible Turbine Pump
The SR Series submersible turbine pump is designed specifically to meet a variety of applications. With stainless steel impellers and diffusers, a stainless steel shell to maintain alignment and heavy-investment cast stainless steel suction and discharge brackets, the SR Series submersible turbine pump is equipped to operate efficiently and handle the most demanding conditions.
Franklin Electric 6-Inch SR Submersible Turbine Pump Applications
- Industrial
- Agricultural
- Irrigation
- Commercial
Franklin Electric 6-Inch SR Submersible Turbine Pump Features
- Stainless Steel Impellers and Diffusers to Resist Corrosion
- Heavy-Duty Stainless Steel Shell Assures Permanent Alignment of all Components to Increase Longevity and Enables Higher Pressures than Strap Designs
- PTFE Floating Wear Ring, Ceramic Bearing Journal, and Nitrile Rubber Fluted Bearing Ensure Durability Against Wear for Long-Lasting Performance and Reliability
- Suited to Operate in Horizontal Position
- Built-In Check Valve to Protect the Pump Against Water Hammer
- Energy-Efficient Hydraulic Design for Cost Effective Operation
- Space-Saving Compact Design.
- Easy to Install and Dismantle for Service in the Field if Necessary.
- Maximum Operating Temperature - 140 °F / 60 °C (304SS) and 194 °F / 90 °C (316SS).
Specifications
Specifications
Franklin Electric 150SR10F66-0463 Submersible Turbine Pump Specifications
- DISCHARGE SIZE: 3.0” NPT
- NOMINAL FLOW RATING: 150 GPM
- HORSEPOWER: 10 HP
- MAXIMUM CAPACITY: 220 GPM
- MAXIMUM HEAD: 248’
- STAGES: 4
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 140°F / 60°C
Franklin Electric 6-Inch SR Submersible Turbine Pump 150 GPM Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SR Submersible Turbine Pump Product Resources
Download Franklin Electric SR Submersible Turbine Pump Brochure
Download Franklin Electric 6-Inch SR Submersible Turbine Pump Specifications
