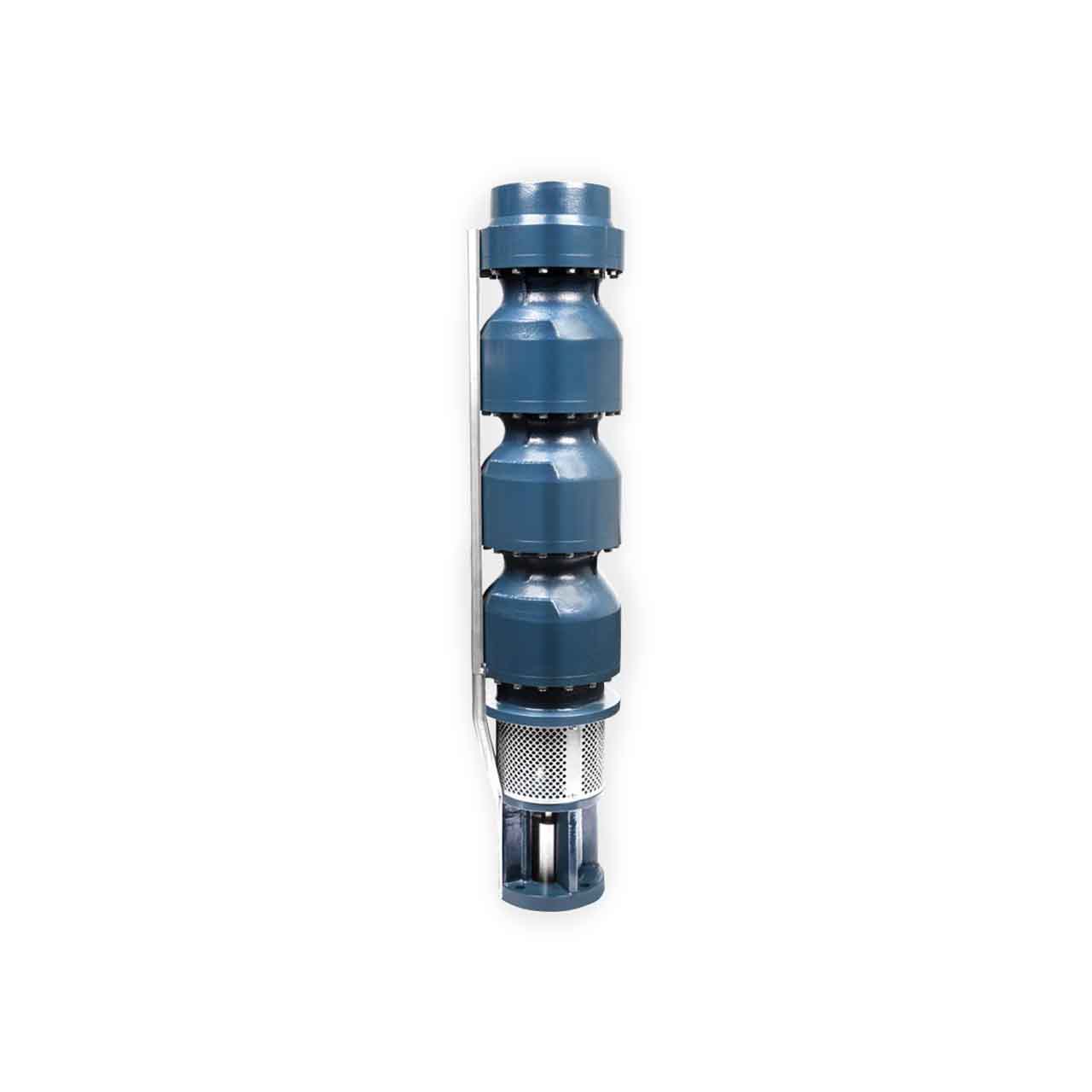

Franklin Electric 1200STS75D9A-0186 9-Inch STS Submersible Turbine Pump 1200 GPM 75 HP
Franklin Electric 1200STS75D9A-0186 9-Inch STS Submersible Turbine Pump 1200 GPM 75 HP
SKU : FEC97091200201
In Stock Quantity:0
:
:
Brand
:
Regular price
$7,255.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric 9-Inch STS Submersible Turbine Pump
The complete STS Series product family includes 5-inch, 6-inch, 8-inch and 9-inch models ideal for irrigation, agricultural, industrial, commercial or municipal water pumping applications. It offers flows from 60 to 1600 GPM and a total dynamic head up to 2300 feet. Each pump features premium materials of construction, including ductile iron motor brackets, ductile iron discharges, cast 304 stainless steel impellers, robust spiral cutlass rubber intermediate bowl bearings and copper bismuth bronze discharge and motor bracket bearings.
Franklin Electric 9-Inch STS Submersible Turbine Pump Applications
- Irrigation
- Agricultural
- Industrial
- Municipal
- Commercial
Franklin Electric 9-Inch STS Submersible Turbine Pump Features
- 100% Franklin Electric Factory Wet Tested with Test Results Shipped with Each Pump
- Hydraulic Optimization for Exceptional Abrasive Handling
- Ductile Iron Motor Bracket and Discharge for Extended Pump Life
- Premium Glass-Lined Bowls for Maximum Efficiency and Abrasion Resistance
- Investment Cast 304 Stainless Steel Impellers for Superior Performance
- Custom Configurations Available
Specifications
Specifications
Franklin Electric 1200STS75D9A-0186 Submersible Turbine Pump Specifications
- DISCHARGE SIZE: 6.0” NPT
- NOMINAL FLOW RATING: 1200 GPM
- HORSEPOWER: 75 HP
- MAXIMUM CAPACITY: 1500 GPM
- MAXIMUM HEAD: 225’
- STAGES: 1A
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 140°F / 60°C
Franklin Electric 9-Inch STS Submersible Turbine Pump 1200 GPM Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric STS Submersible Turbine Pump Product Resources
Download Franklin Electric STS Submersible Turbine Pump Brochure
Download Franklin Electric 9-Inch STS Submersible Turbine Pump Catalog Pages
Download Franklin Electric STS Submersible Turbine Pump Manual
