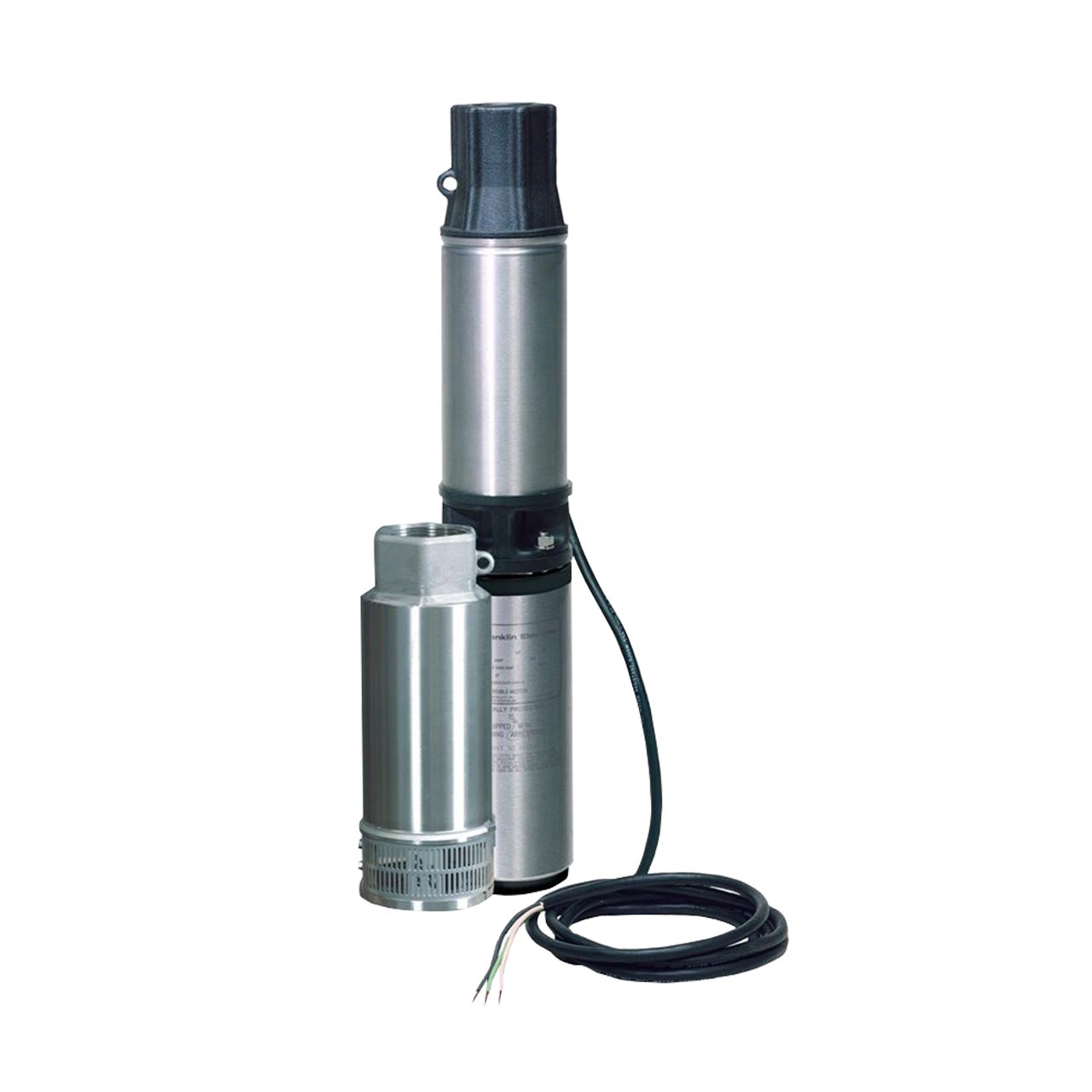

Franklin Electric E-Series Submersible Effluent Pump Features

• Ideal for Effluent Pumping Applications.
• Stainless Steel or Thermoplastic Discharge and Motor Bracket are Tough and Non-Corrosive. Both Materials are Highly Resistant to Damage by Minerals, Metals, and Other Substances Typically Found in Water.
• Heavy Duty, 300 V, 10 ft SJOOW Motor Leads.
• Designed to Provide Years of Reliable Service: 10 and 20 GPM Units are Equipped with A Highly-Engineered Shaft Bearing with Built In Dry-Run
• Hex Rubber Bearing has Extra Large Surface Assuring Shaft Stability and Multiple Flow Channels Keeping Particles Away from Bearing Surfaces.
• Proven Hydraulic Staging Allows Close Tolerances and Increased Performance.
• Carbon Phenolic Upthrust Washer Prevents Excessive Wear in Severe Applications.
• Removable Built-In Check Valve on 10-20 GPM Pumps. No Built-In Check Valves on High Capacity Pumps.
• Powered by a Franklin Electric Submersible Motor.

Franklin Electric 10FE1P4-PE E-Series Submersible Effluent Pump Specifications

• DISCHARGE SIZE: 1.25” NPT
• NOMINAL FLOW RATING: 10 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: 15 GPM
• MAXIMUM HEAD: 440’
• STAGES: 11
• IMPELLER DESIGN: Floating Stack
• BODY MATERIAL: Thermoplastic

Franklin Electric E-Series 10 GPM Submersible Effluent Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric E-Series Submersible Effluent Pump Product Resources

Download Franklin Electric E-Series Submersible Effluent Pump Catalog Pages

Download Franklin Electric E-Series Submersible Effluent Pump Brochure

Download Franklin Electric E-Series Submersible Effluent Pump Owner's Manual
