Flint & Walling G Series Submersible Pump Features

• 2-Wire and 3-Wire Pumps for 4" (10cm) Diameter Wells or Larger.
• Positive-Sealing, Removable Check Valve
• Cast Iron Discharge Head and NEMA-Faced Mounting Ring.
• Non-Fusing and Corrosion-Resistant Impellers and Diffusers Molded of Noryl® Resin.
• Stainless Steel Suction Screen
• Powder-Coated, Carbon Steel Pump Shell
• Motor: 1/2 thru 2HP, 1PH Pumps Feature Flint & Walling Motors.
• Stainless Steel Hex Drive Shaft with One Piece Motor-to-Shaft Coupling
• Well Diameter: 4" (10cm) Minimum
• Motor Controls: Control Boxes Required for Three-Wire, 1PH Motors. Order Controls Separately

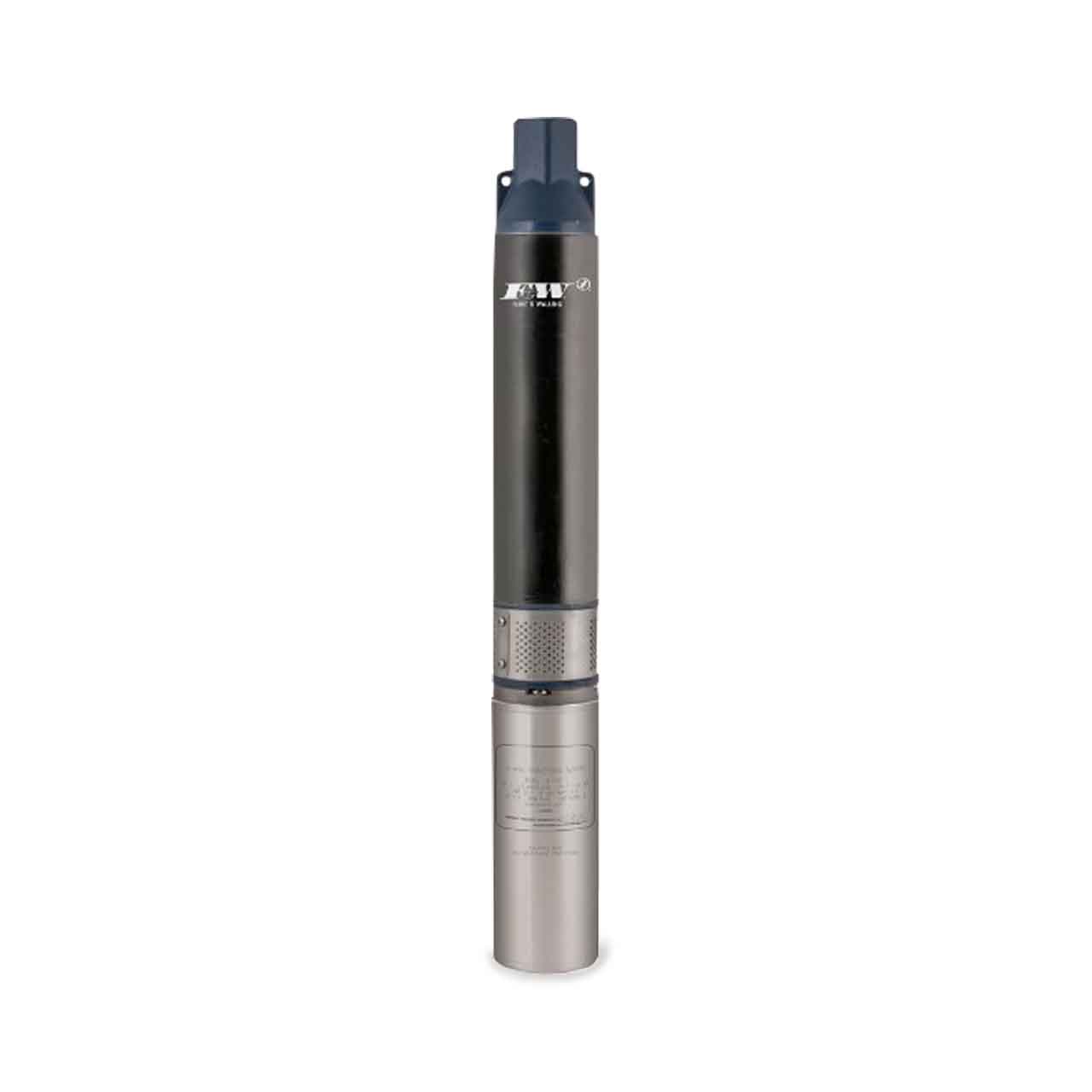

Flint & Walling 4F27G15305 Submersible Pump Specifications

Water Well Motors
• BODY CONSTRUCTION: Powder Coated, Carbon Steel
• HORSEPOWER: 1.5 HP
• VOLTAGE: 1ø, 230V
• RPM: 3450
• MAX AMBIENT TEMPERATURE: 120°F/49°C
• LEAD: 2-wire
Water Well Pump Ends
• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 27 GPM
• HORSEPOWER: 1.5 HP
• MAXIMUM CAPACITY: 37 GPM
• MAXIMUM HEAD: 305’
• STAGES: 7
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Noryl
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Flint & Walling G Series 27 GPM Submersible Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Flint & Walling G Series Submersible Pump Product Resources

Download Flint & Walling G Series Submersible Pump Brochure FW1675

Download Flint & Walling Submersible Motor Brochure FW1637

Download Flint & Walling Repair Parts Catalog FW1254

Download Flint & Walling Submersible Pump Installation Instructions 135874
