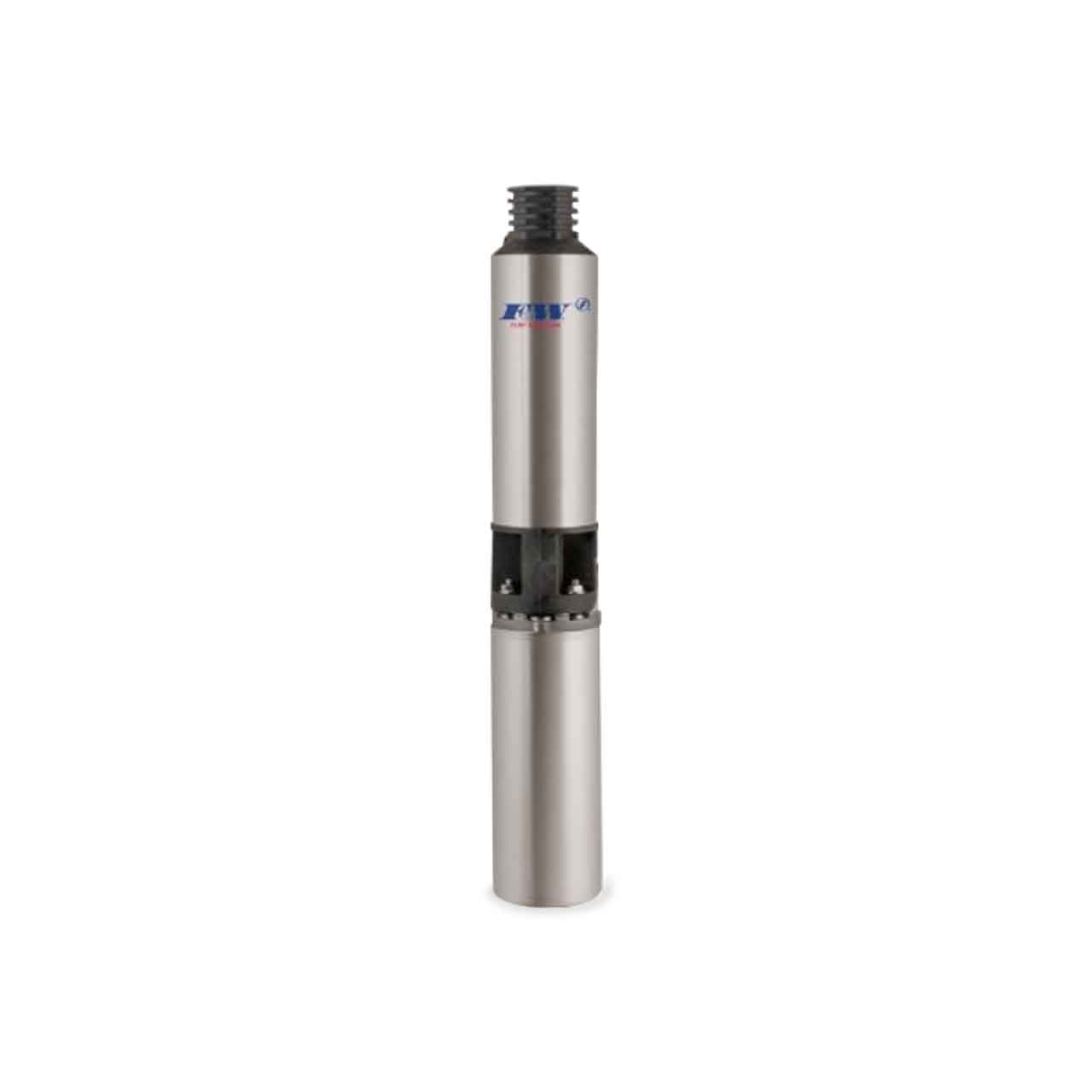

Flint & Walling F5030-0008 Multi-Stage Effluent 4" Submersible Pump 11 GPM 0.5 HP 230V 2-Wire Single-Phase
Flint & Walling F5030-0008 Multi-Stage Effluent 4" Submersible Pump 11 GPM 0.5 HP 230V 2-Wire Single-Phase
SKU : FWGF5030-0008
In Stock Quantity:0
:
Brand
:
Regular price
$1,567.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Multi-Stage Effluent Submersible Pumps are used in on-site applications that demand more head than a traditional single stage centrifugal submersible pump. This need is met by offering a complete line of submersible effluent turbine pumps. These pumps have been proven in-field applications and have many years of development behind them.
Typical applications include mound systems, drip systems and re-circulation medial filters. All units include cool-running, submersible motors that do not require external water flow to prevent overheating. Pumps can be installed directly in a dose tank as long as an effluent filter is used on the septic tank outlet. These pumps can also be used in conjunction with a Filtered STEP system.
Flint & Walling Multi-Stage Effluent 4" Submersible Pump Features
- Corrosion-Resistant
- 1-1/4" Discharge or 2.0" Discharge
- Heavy Wall Stainless Steel Pump Shell
- NEMA Standard Submersible Motors
- Stainless Steel Hex Drive Pump Shaft
- High-Efficiency Floating Stack Design
- Glass-Filled Noryl® Discharge and Mounting Ring
- Stainless Steel Discharge and Mounting Ring
- No External Capacitors or Relays Required for Starting
- Check Valve Not Included
- 10' (3 m) of #16-2G SOOW-A Power Cord
- 1 Year Limited Warranty
NOTES: Noryl® is a registered trademark of General Electric.
Specifications
Specifications
Flint & Walling F5030-0008 Multi-Stage Effluent Pump Specifications
- VOLTAGE: 1ø, 230V
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 6.0
- MOTOR TYPE: NEMA
- RPM: 3450
- NOMINAL FLOW RATING: 11 GPM
- MAXIMUM HEAD: 280’
- MAXIMUM CAPACITY: 17 GPM
- DISCHARGE PIPE SIZE: 1.25” NPT
- IMPELLER TYPE: Floating Stack, Glass Bead Acetal
- CORD LENGTH: 10'
- BODY CONSTRUCTION: Stainless Steel
- LEAD: 2-wire
- STAGES: 7
Flint & Walling Multi-Stage Effluent 4" Submersible Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Flint & Walling Multi-Stage Effluent 4" Submersible Pump Product Resources
Download Flint & Walling Multi-Stage Effluent 4" Submersible Pump Brochure FW0714
Download Flint & Walling Multi-Stage Effluent 4" Submersible Pump Installation 022569
