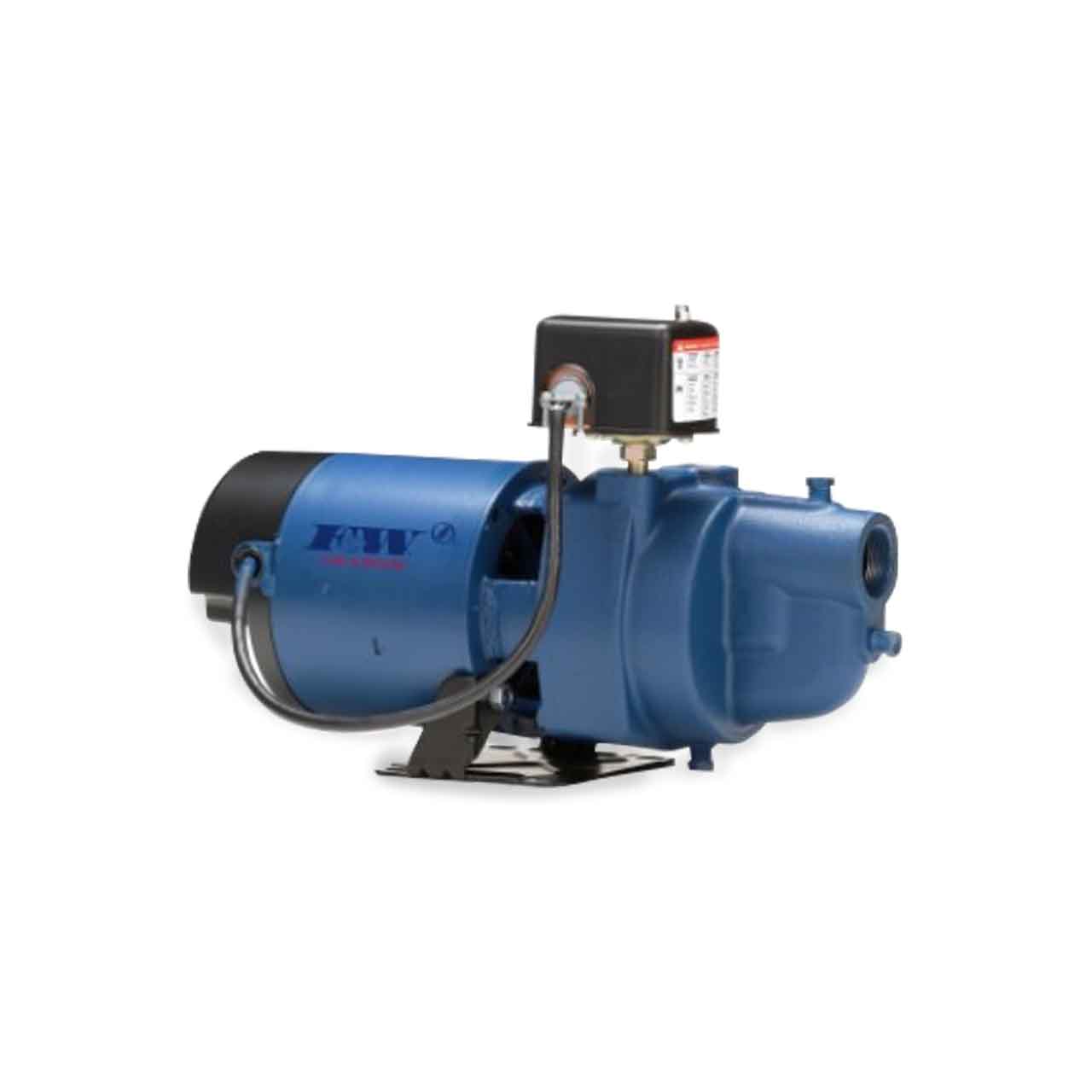

Flint & Walling EK10S Model EK Shallow Well Jet Pump 1.0 HP 115V/230V 1PH
Flint & Walling EK10S Model EK Shallow Well Jet Pump 1.0 HP 115V/230V 1PH
SKU : FWGEK10S
In Stock Quantity:0
:
Brand
:
Regular price
$1,258.20 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Flint & Walling Model EK Shallow Well Jet Pump Description
Our EK Convertible Jet Pump Series is a versatile solution designed for various applications. With a suction lift range of 0' to 25' (0-8 m), it excels in shallow well installations. For deep well applications, it accommodates a vertical distance to water of up 140' (43 m).
This pump series provide higher single-stage capacities up to 1,800 GPH (6,814 LPH) and pressure capabilities of up to 90 PSI, it ensures efficient performance in a wide range of pumping requirements. 1 Year Limited Warranty.
*Includes: pump, motor, pressure switch and Built-In ejector
Flint & Walling Model EK Shallow Well Jet Pump Features and Benefits
- The EK05S and EK07S Feature the Flint & Walling "Service Plus" Motor in a Uni-Frame Flange Design.
- The Buna-n Square Cut Ring is Reusable and Provides a Positive Seal Between the Pump Case and Motor Bracket.
- Diffusers are Corrosion and Abrasion Resistant, and Provide Precision Alignment with the Impeller for Maximum Performance.
- Impellers are Precision Balanced and Ultra-Smooth for High Efficiency.
- Standard Shaft Seal with Ceramic and Silicone Carbide Face is Self-Adjusting Throughout the Seal Life.
- Patented Uni-Frame Motor Bracket is Designed to Accept NEMA J Motor if Motor Replacement is Necessary.
- Automatic Overload Senses Both Start and Run Winding Heat for Complete Winding Protection.
Specifications
Specifications
Flint & Walling EK10S Shallow Well Jet Pump Specifications
- DISCHARGE SIZE: 1.0"
- INLET SIZE: 1.25"
- IMPELLER MATERIAL: Thermoplastic
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 1.0 HP
- MOTOR TYPE: Uni-Frame Motor
- VOLTAGE: 1ø, 115V/230V, 60Hz
- RPM: 3450
Flint & Walling Model EK Shallow Well Jet Pump Performance Chart
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Flint & Walling Model EK Shallow Well Jet Pump Product Resources
Download Flint & Walling Shallow Well Jet Pump Catalog FW0180
Download Flint & Walling EK Shallow Well Jet Pump Catalog FW1425
Download Flint & Walling Shallow Well Jet Pump Installation Instructions 023448
Download Flint & Walling Shallow Well Jet Pump Repair Parts FW0033
