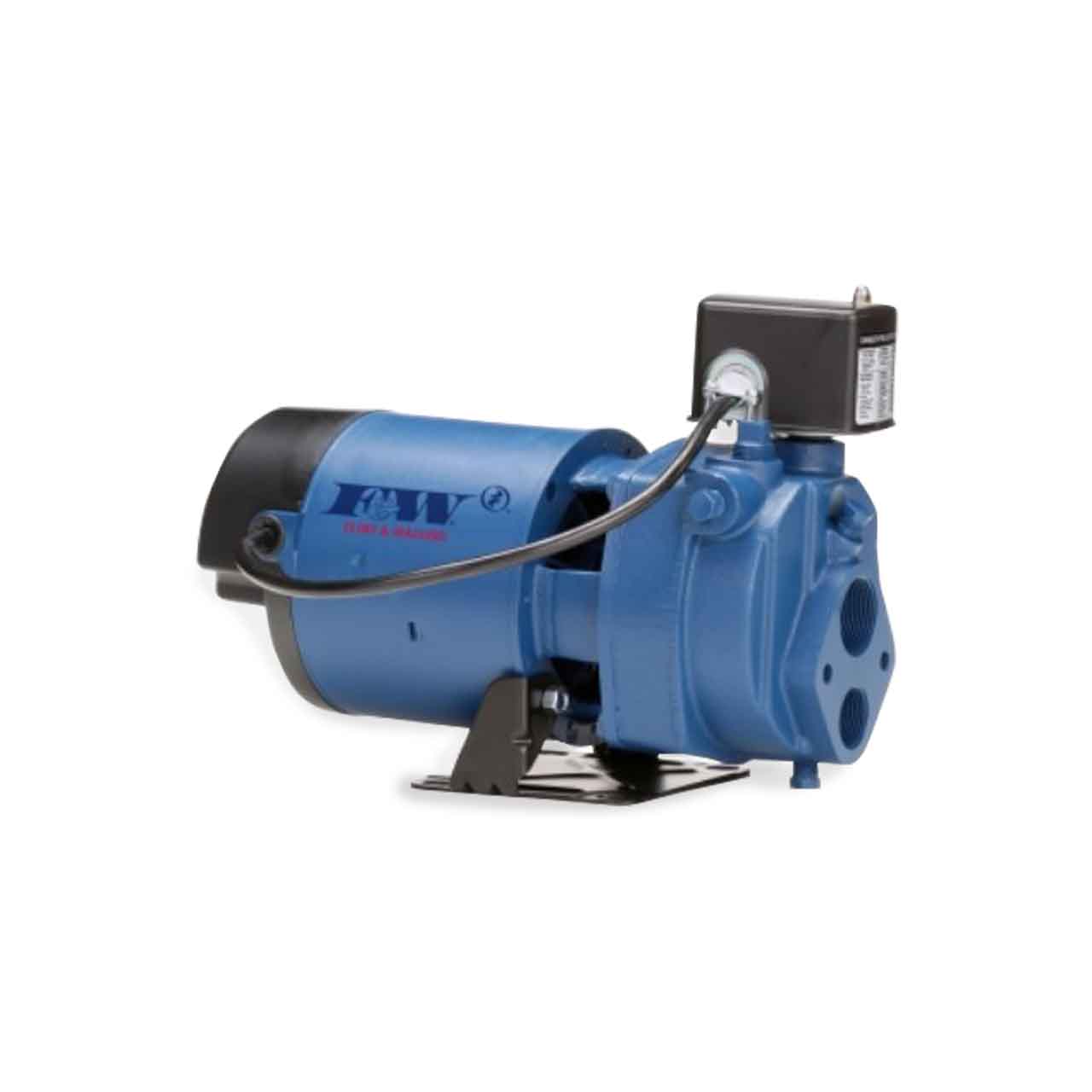

Flint & Walling EK05 Model EK Convertible Jet Pump 0.5 HP 115V/230V 1PH

Flint & Walling EK05 Model EK Convertible Jet Pump 0.5 HP 115V/230V 1PH

Usually ships within 3 weeks

SKU : FWGEK05

In Stock Quantity:0

:
Brand : Flint & Walling
$823.50 USD
Shipping calculated at checkout.

Description


Flint & Walling Model EK Convertible Jet Pump Description

Our EK Convertible Jet Pump Series is a versatile solution designed for various applications. With a suction lift range of 0′ to 25′ (0 – 8 m), it excels in shallow well installations. For deep well applications, it accommodates a vertical distance to water of up to 140′ (43 m).
This pump series provides higher single-stage capacities and pressures, reaching depths of 140′ (43 m). With capacities up to 1,800 GPH (6,814 LPH) and pressure capabilities of up to 90 PSI, it ensures efficient performance in a wide range of pumping requirements.

*Includes pump, motor and pressure switch.

NOTES:
For shallow well applications, order ejector separately.
For deep well applications, order ejector, control package (134349) and pressure gauge separately.

Flint & Walling Model EK Convertible Jet Pump Features and Benefits

  • High Tensile Gray Iron Pump Bodies: Large Water Cavities Provide Fast, Easy Priming.
  • Buna-N Square Cut Ring: Reusable - Provides A Positive Seal Between the Pump Case and Motor Bracket.
  • Molded Diffusers: Corrosion and Abrasion Resistant, Provide Precision Alignment with the Impeller for Maximum Performance.
  • Impellers: Precision Balanced, these Impellers are Ultra-Smooth for High Efficiency.
  • Pipe Plugs and Priming Plugs: Coated With A Non-Hardening, Non-Toxic, Non-Corrosive Material which Allows for Easy Removal Even After Pump has Been in Service for Years.
  • Standard Shaft Seal: Silicone Carbide Face is Self-Adjusting Throughout the Seal Life. One Size Fits All Models.
  • EK Patented Uni-Frame Motor Bracket: Unique to the Water Systems Industry - Designed to Accept any NEMA J Motor if Motor Replacement is Ever Necessary.
  • Automatic Overload: Senses Both Start and Run Winding Heat to Ensure Complete Winding Protection.

    Specifications

    Flint & Walling EK05 Convertible Jet Pump Specifications

    • DISCHARGE SIZE: 0.75"
    • INLET SIZE: 1.25"
    • IMPELLER MATERIAL: Thermoplastic
    • BODY CONSTRUCTION: Cast Iron
    • HORSEPOWER: 0.5 HP
    • MOTOR TYPE: Uni-Frame Motor
    • VOLTAGE: 1ø, 115V/230V, 60Hz
    • RPM: 3450

    Flint & Walling Model EK Convertible Jet Pump Performance Chart


    WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Resources

    Flint & Walling Model EK Convertible Jet Pump Product Resources


    Download Flint & Walling Convertible Jet Pump Catalog FW1196

    Download Flint & Walling Convertible Jet Pump Repair Instructions 020183
