Flint & Walling CPJ15S Model CPJS Shallow Well Jet Pump 1.5 HP 115V/230V 1PH

Flint & Walling CPJ15S Model CPJS Shallow Well Jet Pump 1.5 HP 115V/230V 1PH

Usually ships within 3 weeks

SKU : FWGCPJ15S

In Stock Quantity:0

:
Brand : Flint & Walling
$2,225.70 USD
Shipping calculated at checkout.

Description

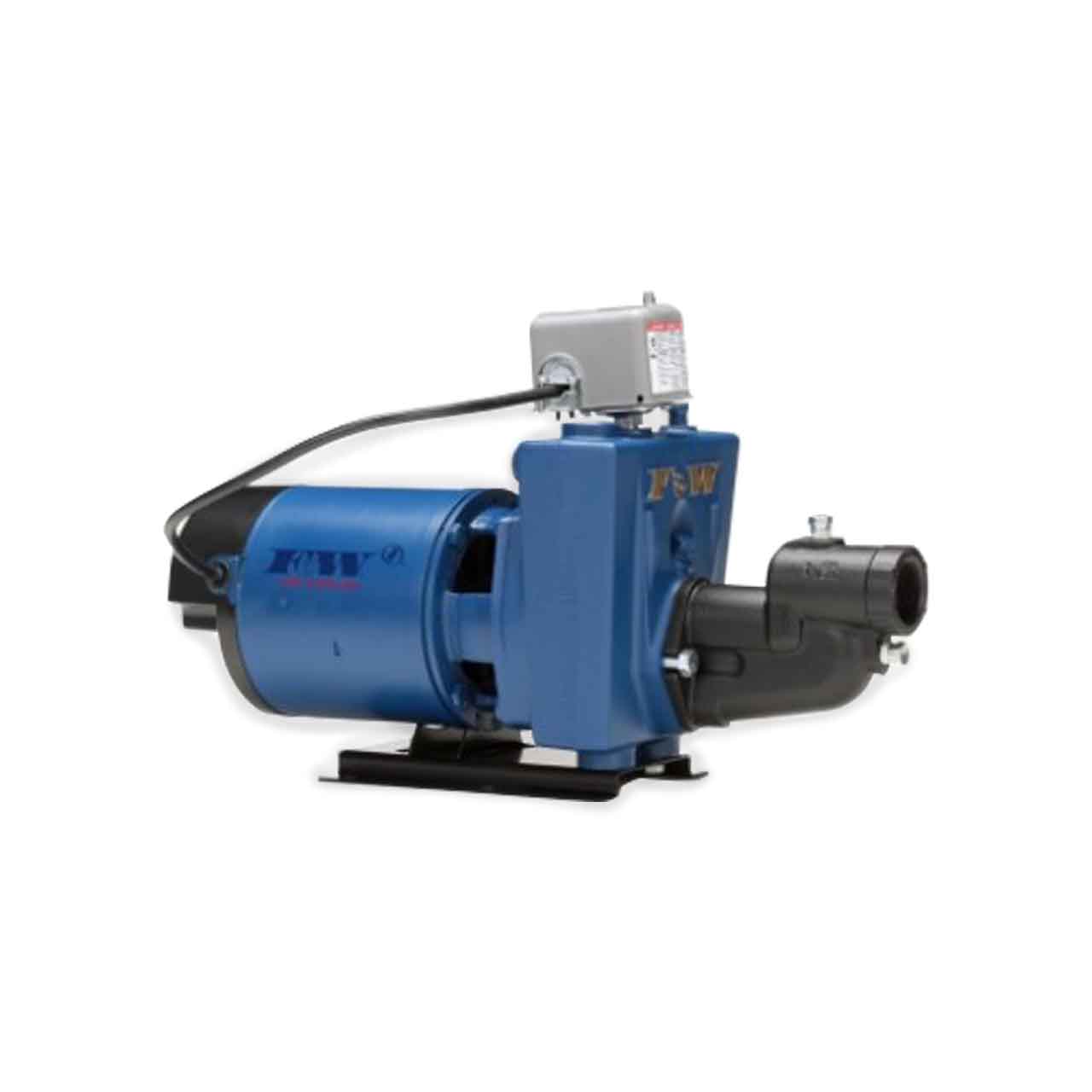

Flint & Walling Model CPJS Shallow Well Jet Pump Description

Designed for suction lifts up to 25' (8m). These powerful pumps provide capacities up to 1,800 GPH (6,814LPH) and as much as 60 lb (27 kg) pressure.
The CPJ models feature the famous Flint & Walling "Service Plus" motor, available in NEMA J construction. The F & W 56 frame, double ball bearing motor offers the ultimate in performance and dependability.
Designed for years of trouble-free operation and simple, swift, on-site servicing, the CPJ features unique interchangeability of replacement parts to keep inventories at a minimum.
1 Year Limited Warranty
*Includes: pump, motor, pressure switch and shallow well ejector

Flint & Walling Model CPJS Shallow Well Jet Pump Features and Benefits

  • High Tensile Gray Iron Pump Bodies: Large Water Cavities Provide Fast, Easy Priming.
  • Buna-N Square Cut Ring: Reusable - Provides A Positive Seal Between the Pump Case and Motor Bracket.
  • Molded Diffusers: Corrosion and Abrasion Resistant, Provide Precision Alignment with the Impeller for Maximum Performance.
  • Impellers: Precision Balanced, these Impellers are Ultra-Smooth for High Efficiency.
  • Pipe Plugs and Priming Plugs: Coated With A Non-Hardening, Non-Toxic, Non-Corrosive Material which Allows for Easy Removal Even After Pump has Been in Service for Years.
  • Standard Shaft Seal: Silicone Carbide Face is Self-Adjusting Throughout the Seal Life. One Size Fits All Models.
  • CPJ Models: Feature NEMA J Motors. All Motors are Dual Voltage, Capacitor Start with Automatic Thermal Overload Protection.
  • Automatic Overload: Senses Both Start and Run Winding Heat to Ensure Complete Winding Protection.

Specifications

Flint & Walling CPJ15S Shallow Well Jet Pump Specifications

  • DISCHARGE SIZE: 1.0"
  • INLET SIZE: 1.25"
  • IMPELLER MATERIAL: Brass
  • BODY CONSTRUCTION: Cast Iron
  • HORSEPOWER: 1.5 HP
  • MOTOR TYPE: NEMA J
  • VOLTAGE: 1ø, 115V/230V, 60Hz
  • RPM: 3450

Flint & Walling Model CPJS Shallow Well Jet Pump Performance Chart


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Flint & Walling Model CPJS Shallow Well Jet Pump Product Resources


Download Flint & Walling Shallow Well Jet Pump Catalog FW0180

Download Flint & Walling Shallow Well Jet Pump Installation Instructions 132463

Download Flint & Walling Shallow Well Jet Pump Repair Parts FW0030
