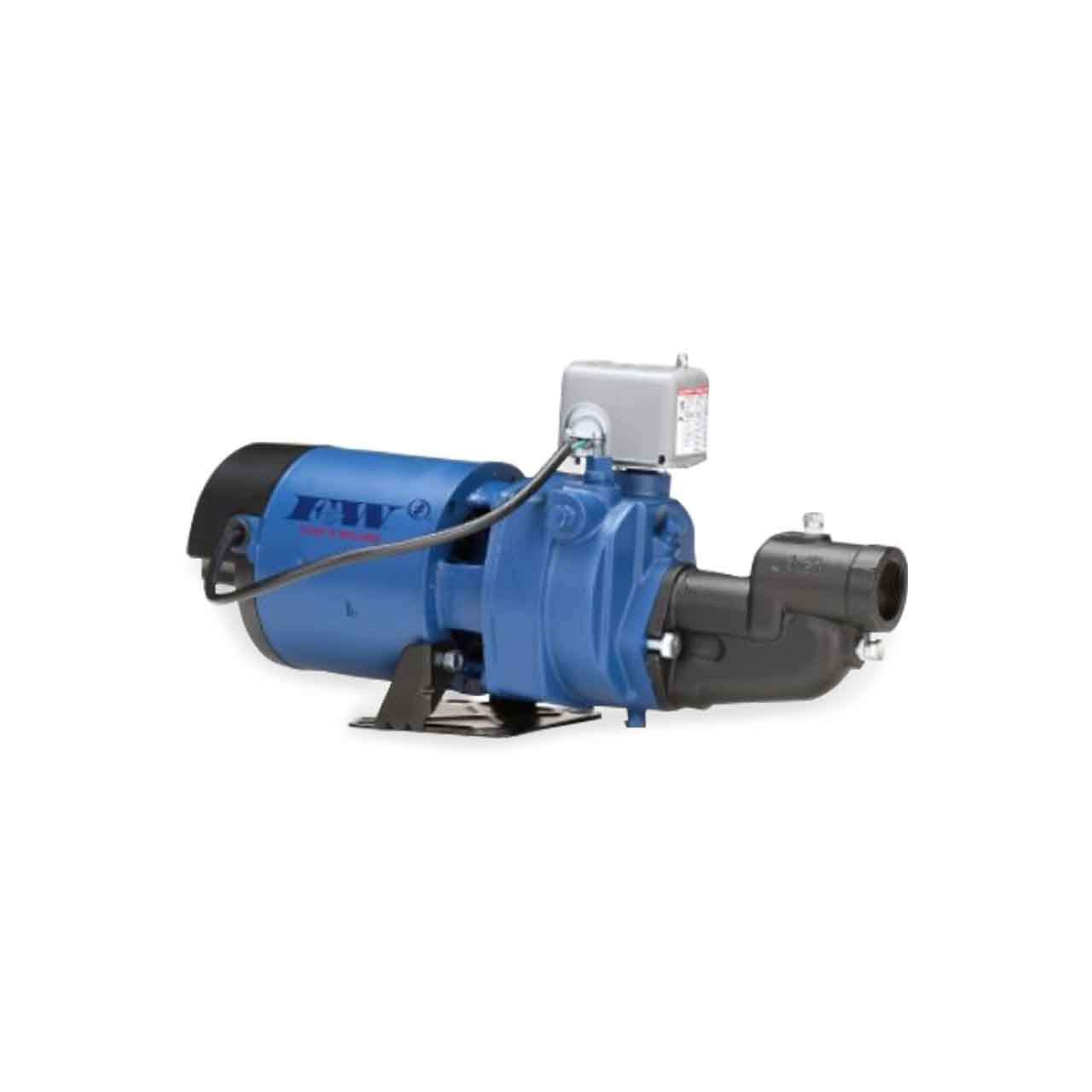

Flint & Walling CPH05S Model CPHS Shallow Well Jet Pump 0.5 HP 115V/230V 1PH
Flint & Walling CPH05S Model CPHS Shallow Well Jet Pump 0.5 HP 115V/230V 1PH
SKU : FWGCPH05S
In Stock Quantity:-1
:
Brand
:
Regular price
$1,127.70 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Flint & Walling Model CPHS Shallow Well Jet Pump Description
Designed for shallow wells with suction lifts from 0′ to 25′ (0 – 8 m). This pump will provide capacities up to 1,030 GPH (3 899 LPH) and pressures up to 50 PSI.
Features the famous Flint and Walling “Service Plus” motor with Uni-frame flange construction. The F&W 56 frame, double ball bearing motor offers the ultimate in performance and dependability.
The pump is designed for years of trouble-free operation and simple, swift, on-site servicing.
1 Year Limited Warranty
*Includes: pump, motor, pressure switch and shallow well ejector
Flint & Walling Model CPHS Shallow Well Jet Pump Features and Benefits
- High Tensile Gray Iron Pump Bodies: Large Water Cavities Provide Fast, Easy Priming.
- Buna-N Square Cut Ring: Reusable - Provides A Positive Seal Between the Pump Case and Motor Bracket.
- Molded Diffusers: Corrosion and Abrasion Resistant, Provide Precision Alignment with the Impeller for Maximum Performance.
- Impellers: Precision Balanced, these Impellers are Ultra-Smooth for High Efficiency.
- Pipe Plugs and Priming Plugs: Coated With A Non-Hardening, Non-Toxic, Non-Corrosive Material which Allows for Easy Removal Even After Pump has Been in Service for Years.
- Standard Shaft Seal: Silicone Carbide Face is Self-Adjusting Throughout the Seal Life. One Size Fits All Models.
- CPH Models Patented Uni-Frame Motor Bracket: Unique to the Water Systems Industry - Designed to Accept Any NEMA J Motor if Motor Replacement is Ever Necessary.
- Automatic Overload: Senses Both Start and Run Winding Heat to Ensure Complete Winding Protection.
Specifications
Specifications
Flint & Walling CPH05S Shallow Well Jet Pump Specifications
- DISCHARGE SIZE: 0.75"
- INLET SIZE: 1.25"
- IMPELLER MATERIAL: Thermoplastic
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.5 HP
- MOTOR TYPE: Uni-Frame Motor
- VOLTAGE: 1ø, 115V/230V, 60Hz
- RPM: 3450
Flint & Walling Model CPHS Shallow Well Jet Pump Performance Chart
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Flint & Walling Model CPHS Shallow Well Jet Pump Product Resources
Download Flint & Walling Shallow Well Jet Pump Catalog FW0180
Download Flint & Walling Shallow Well Jet Pump Installation Instructions 023448
Download Flint & Walling Shallow Well Jet Pump Repair Parts FW0032
