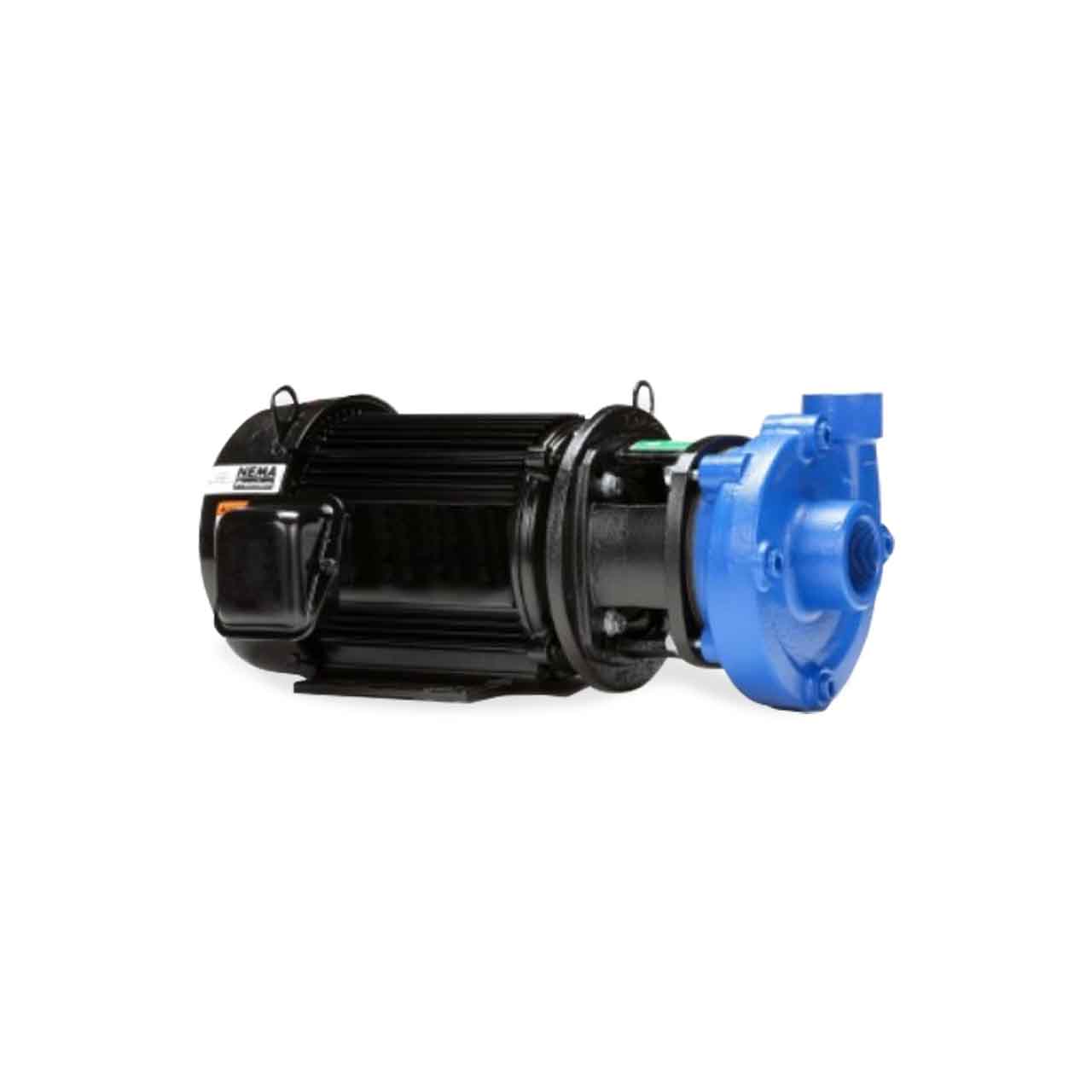

Flint & Walling C55A503T C5 Series Straight Centrifugal Pump 5.0 HP 230/460V Three Phase
Flint & Walling C55A503T C5 Series Straight Centrifugal Pump 5.0 HP 230/460V Three Phase
SKU : FWGC55A503T
In Stock Quantity:0
:
Brand
:
Regular price
$4,426.20 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Stainless steel units are especially effective in applications where rust and/or corrosion can develop in systems. Semi-open impeller features self-cleaning ability that makes the unit useful in applications involving muddy or dirty liquids as well as clean, clear fluids. Discharge position can be adjusted in 90° increments with vent and drain plugs for all positions. Type 21 mechanical seal and O-ring casing seal. Pumps are close-coupled to totally enclosed fan cooled (TEFC) motors.
NOTE: Pumps are not Self-Priming and Require Flooded Suction.
Flint & Walling C5 Straight Centrifugal Pump Applications
- Liquid Transfer
- Heating and Cooling
- Recirculation
- Booster Service
- Other Industrial Applications
- Cooling Towers
- Car Washes
Flint & Walling C5 Straight Centrifugal Pump Features
- Investment Cast 316 Stainless Steel Construction with Viton® Seals or Cast Iron Construction with Buna Seals
- Stainless Steel Impellers with Solids-Handling Capacity of 1/8" - 3/16"
- High Flow and High Head Designs
- Maximum Temperature: Stainless Steel- 200° F (93° C) Viton®; Cast Iron- 180° F (82° C) Buna N
- Front Drain Plugs Located 90°Apart
- Max Head: 194′ (59 m) (100 PSI)
- Max Flow: 425 GPM (1,609 LPM)
- Max Working Pressure: 150 PSI
- 1 Year Limited Warranty
Specifications
Specifications
Flint & Walling C55A503T Straight Centrifugal Pump Specifications
- DISCHARGE SIZE: 1-1/2" NPT
- SUCTION: 2.0"
- MAXIMUM SOLIDS HANDLING SIZE: 1/8" to 3/16"
- MAXIMUM CAPACITY: 200 GPM
- MAXIMUM HEAD: 118'
- IMPELLER MATERIAL: Stainless Steel, Semi-Open
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 5.0 HP
- RPM: 3450
- MOTOR TYPE: TEFC (Totally Enclosed Fan Cooled)
- VOLTAGE: 3ø, 230/460V
- MAXIMUM LIQUID TEMPERATURE: 180° F (82° C)
- AMP DRAW (full load): 17/9
Flint & Walling C5 Straight Centrifugal Pump Performance
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Flint & Walling C5 Straight Centrifugal Pump Product Resources
Download Flint & Walling C5 Straight Centrifugal Pump Catalog FW0724
