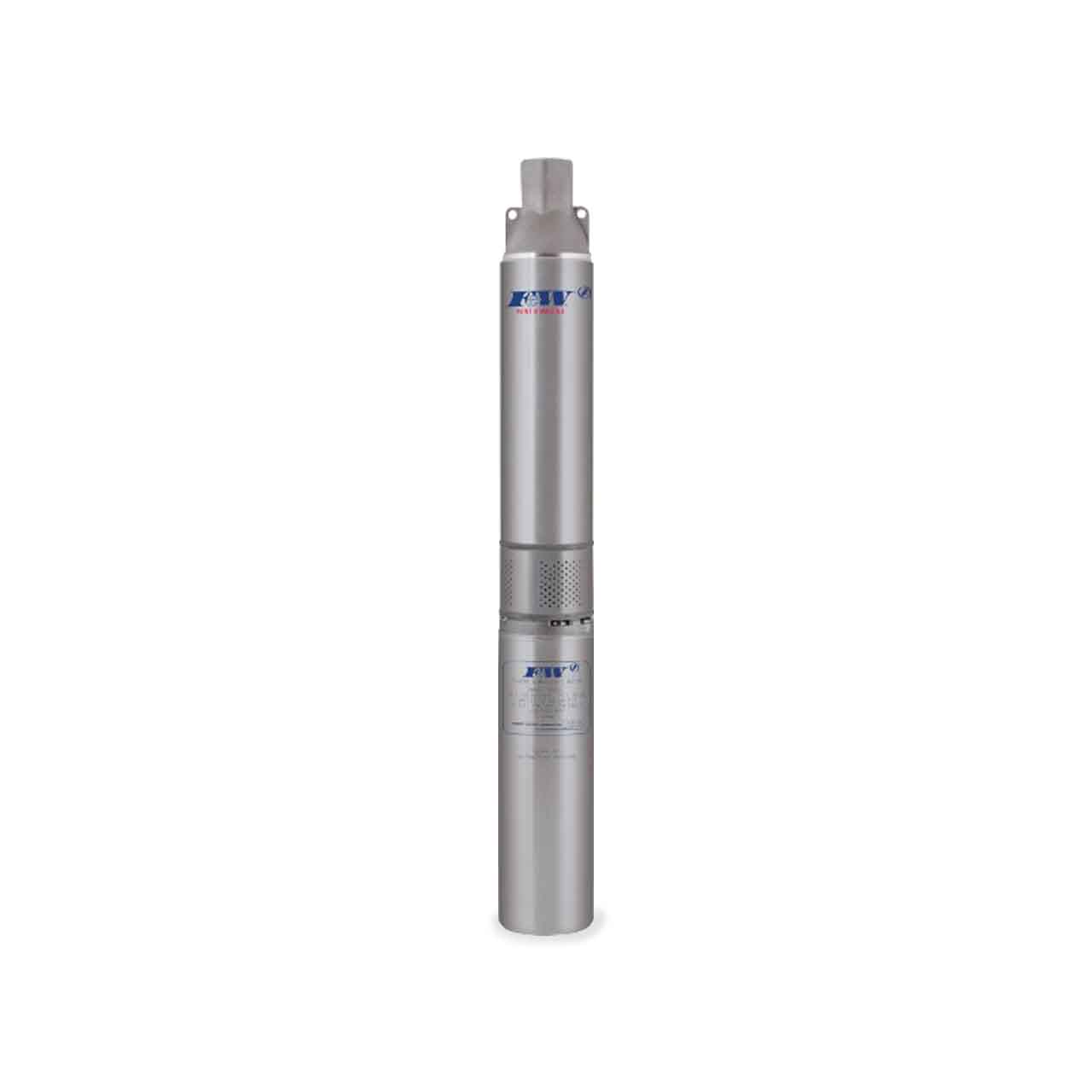

Flint & Walling 4" SS Commander S Series 4F27S10301 Submersible Pump 27 GPM 1.0 HP 230V 1PH 3-Wire

Flint & Walling 4" SS Commander S Series 4F27S10301 Submersible Pump 27 GPM 1.0 HP 230V 1PH 3-Wire

Usually ships within 1 week

SKU : FWG4F27S10301

In Stock Quantity:0

:
$1,953.90 USD
Shipping calculated at checkout.

Description


Our Stainless Steel Commander S Series exemplifies our dedication to top-tier water system performance. Featuring a stainless steel pump shell, hex drive shaft, coupling and screen, our pump is engineered for durability. The NEMA standard motor mounting ring ensures easy installation and reliability in every application.

Flint & Walling SS Commander S Series Submersible Pump Features

  • Discharge Head: Stainless Steel, 1-1/4" NPT, Safety Rope Eyelet Included
  • Check Valve Poppet: Internal Removable, with Elastomer Sealing Ring
  • Top Bearing: Closed, Sintered, Lead-Free Sleeve Bearing
  • Pump Shell: Heavy-Wall Stainless Steel
  • Cable Guard: Stainless Steel
  • Staging: Noryl Impellers and Diffusers; Stainless Steel Floating Bearing Inserts and Acetal Diffuser Plates
  • Pump Shaft: Stainless Steel Hex Shaft with One Piece Motor-to-Shaft Coupling
  • Motor Bracket: NEMA Standard, Stainless Steel with Stainless Steel Suction Screen
  • Motor: 1/2 thru 2 HP, 1PH Pumps Feature Flint & Walling Motors
  • Motor Controls: Control Boxes Required for Three-Wire, 1PH Motors. Order Controls Separately

Specifications

Flint & Walling 44F27S10301 Submersible Pump Specifications

    Water Well Motors
  • BODY CONSTRUCTION: Stainless Steel
  • HORSEPOWER: 1.0 HP
  • VOLTAGE: 1ø, 230V
  • RPM: 3450
  • MAX AMBIENT TEMPERATURE: 120°F/49°C
  • LEAD: 3-wire
    • Water Well Pump Ends
  • DISCHARGE SIZE: 1.25" FNPT
  • NOMINAL FLOW RATING: 27 GPM
  • HORSEPOWER: 1.0 HP
  • MAXIMUM CAPACITY: 38 GPM
  • MAXIMUM HEAD: 230'
  • STAGES: 7
  • IMPELLER DESIGN: Floating Stack
  • IMPELLER MATERIAL: Noryl
  • BODY MATERIAL: Stainless Steel
  • MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Flint & Walling SS Commander S Series 19 GPM Submersible Pump Curve


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Flint & Walling SS Commander S Series Submersible Pump Product Resources


Download Flint & Walling SS Commander S Series Submersible Pump Brochure FW1674

Download Flint & Walling Repair Parts Catalog FW1254

Download Flint & Walling Submersible Pump Installation Instructions 135874
