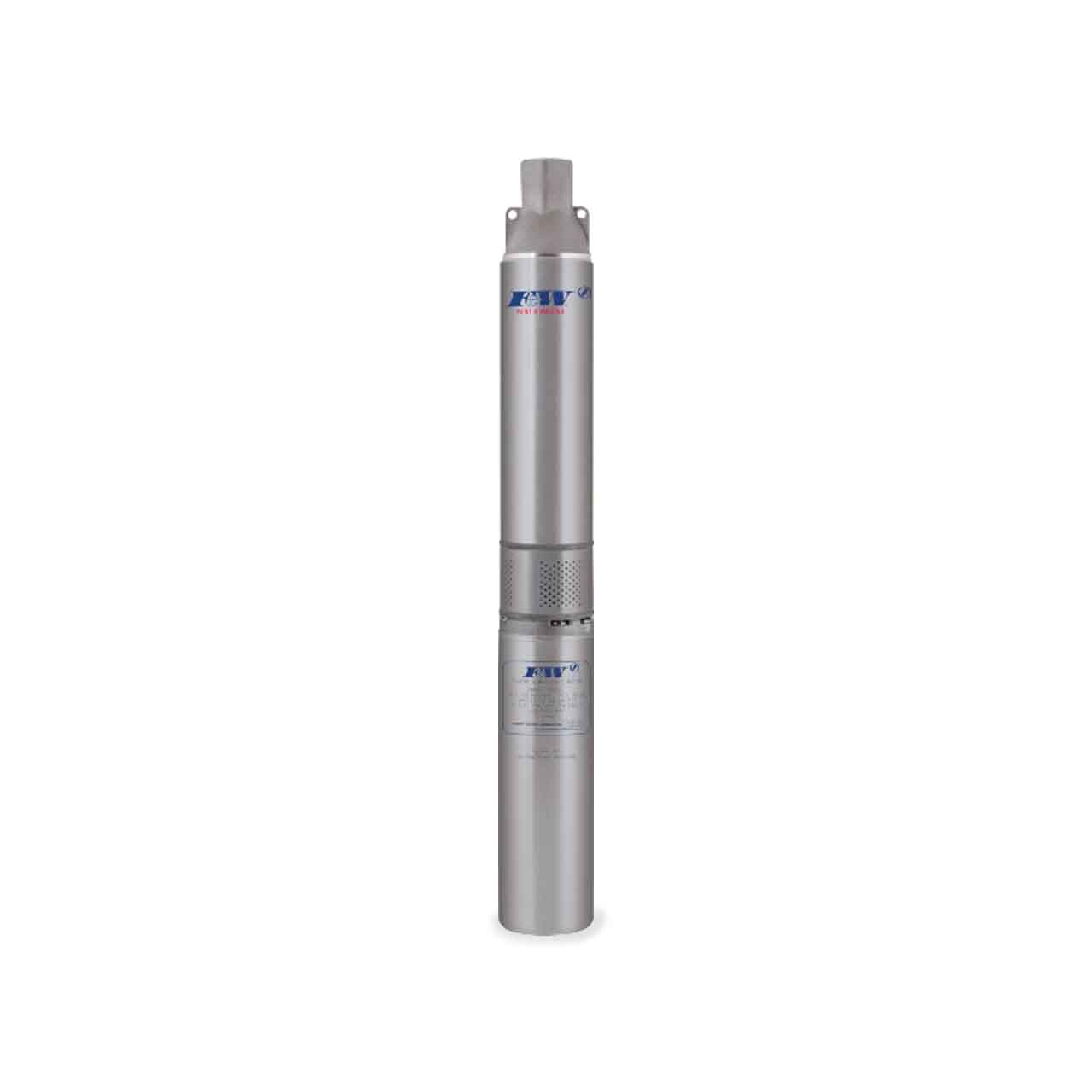

Flint & Walling 4" SS Commander S Series 4F15S15305 Submersible Pump 15 GPM 1.5 HP 230V 1PH 2-Wire
Flint & Walling 4" SS Commander S Series 4F15S15305 Submersible Pump 15 GPM 1.5 HP 230V 1PH 2-Wire
SKU : FWG4F15S15305
In Stock Quantity:-1
:
Brand
:
Regular price
$2,651.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Flint & Walling SS Commander S Series Submersible Pump Features
- Discharge Head: Stainless Steel, 1-1/4" NPT, Safety Rope Eyelet Included
- Check Valve Poppet: Internal Removable, with Elastomer Sealing Ring
- Top Bearing: Closed, Sintered, Lead-Free Sleeve Bearing
- Pump Shell: Heavy-Wall Stainless Steel
- Cable Guard: Stainless Steel
- Staging: Noryl Impellers and Diffusers; Stainless Steel Floating Bearing Inserts and Acetal Diffuser Plates
- Pump Shaft: Stainless Steel Hex Shaft with One Piece Motor-to-Shaft Coupling
- Motor Bracket: NEMA Standard, Stainless Steel with Stainless Steel Suction Screen
- Motor: 1/2 thru 2 HP, 1PH Pumps Feature Flint & Walling Motors
- Motor Controls: Control Boxes Required for Three-Wire, 1PH Motors. Order Controls Separately
Specifications
Specifications
Flint & Walling 44F15S15305 Submersible Pump Specifications
-
Water Well Motors
- BODY CONSTRUCTION: Stainless Steel
- HORSEPOWER: 1.5 HP
- VOLTAGE: 1ø, 230V
- RPM: 3450
- MAX AMBIENT TEMPERATURE: 120°F/49°C
- LEAD: 2-wire Water Well Pump Ends
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 15 GPM
- HORSEPOWER: 1.5 HP
- MAXIMUM CAPACITY: 22 GPM
- MAXIMUM HEAD: 360’
- STAGES: 12
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Noryl
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Flint & Walling SS Commander S Series 15 GPM Submersible Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Flint & Walling SS Commander S Series Submersible Pump Product Resources
Download Flint & Walling SS Commander S Series Submersible Pump Brochure FW1674
Download Flint & Walling Repair Parts Catalog FW1254
Download Flint & Walling Submersible Pump Installation Instructions 135874
