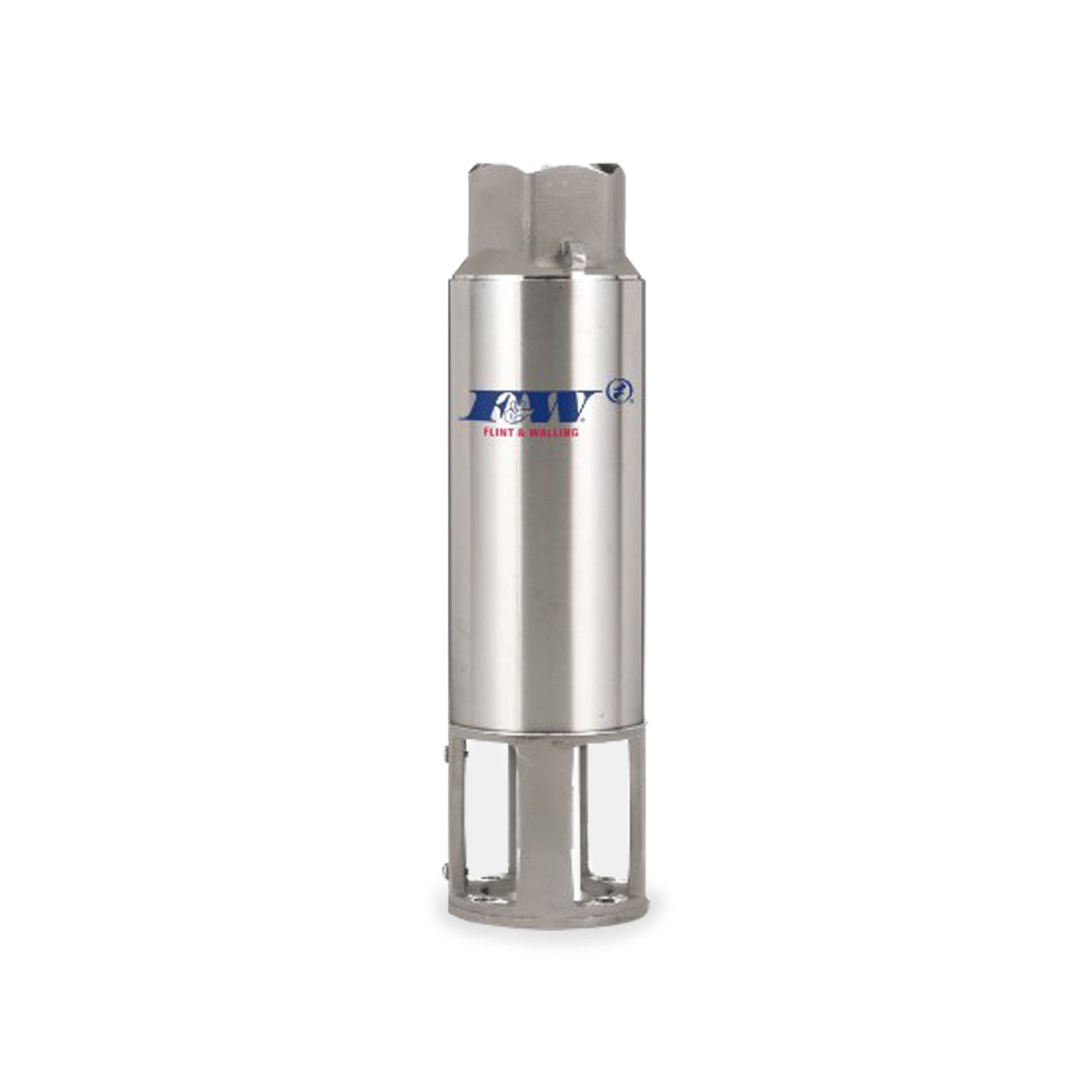

Flint & Walling 4" SS Commander S Series 4F10S20 Submersible Pump End 10 GPM 2.0 HP
Flint & Walling 4" SS Commander S Series 4F10S20 Submersible Pump End 10 GPM 2.0 HP
SKU : FWG4F10S20
In Stock Quantity:0
:
Brand
:
Regular price
$1,714.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Flint & Walling SS Commander S Series Submersible Pump End
Submersible pumps for home, farm, industry and dozens of other domestic or commercial applications.
Flint & Walling SS Commander S Series Submersible Pump End Features
- Discharge Head: Stainless Steel, 1-1/4" NPT, Safety Rope Eyelet Included
- Check Valve Poppet: Internal Removable, with Elastomer Sealing Ring
- Top Bearing: Closed, Sintered, Lead-Free Sleeve Bearing
- Pump Shell: Heavy-Wall Stainless Steel
- Cable Guard: Stainless Steel
- Staging: Noryl Impellers and Diffusers; Stainless Steel Floating Bearing Inserts and Acetal Diffuser Plates
- Pump Shaft: Stainless Steel Hex Shaft with One Piece Motor-to-Shaft Coupling
- Motor Bracket: NEMA Standard, Stainless Steel with Stainless Steel Suction Screen
- Motor: 1/2 thru 2 HP, 1PH Pumps Feature Flint & Walling Motors
- Motor Controls: Control Boxes Required for Three-Wire, 1PH Motors. Order Controls Separately
Specifications
Specifications
Flint & Walling 4F10S20 Submersible Pump End Specifications
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 10 GPM
- HORSEPOWER: 2.0 HP
- MAXIMUM CAPACITY: 16 GPM
- MAXIMUM HEAD: 820’
- STAGES: 26
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Noryl
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Flint & Walling SS Commander S Series 10 GPM Submersible Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Flint & Walling SS Commander S Series Submersible Pump End Product Resources
Download Flint & Walling SS Commander S Series Submersible Pump Brochure FW1674
Download Flint & Walling Repair Parts Catalog FW1254
Download Flint & Walling Submersible Pump Installation Instructions 135874
