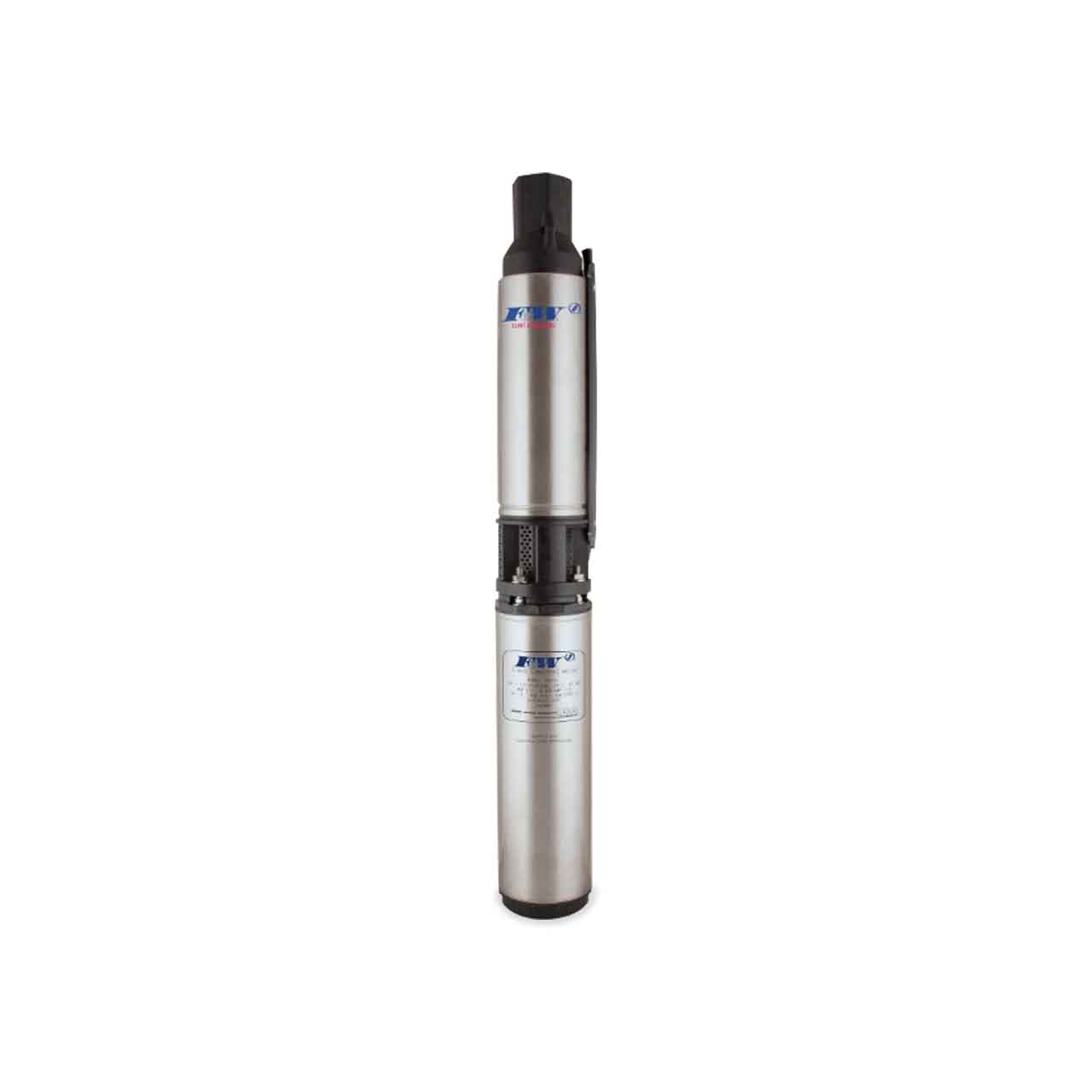

Flint & Walling Rolled Shell Patriot Series Submersible Pump

Proven hydraulics and precision engineering make the PATRIOT and excellent choice for years of dependable service at an affordable price

Flint & Walling Rolled Shell Patriot Series Submersible Pump Features

• Made in the USA with a Majority of USA Content.
• Tested to Resist up to 3,500 lbs of Pull Force
• Glass-Filled Noryl Discharge & Mounting Ring Reinforce Structural Integrity
• Upgraded Full Staging for Improved Performance
• Floating Impeller Stack Easily Passes Debris and Prevents Damage
• Integrated Spider Bearing for Tighter Pump Shaft Security
• Paired with Flint & Walling's 4" Submersible Motor

Flint & Walling 4F11P05001S Submersible Pump Specifications

Water Well Motors
• BODY CONSTRUCTION: Stainless Steel
• HORSEPOWER: 0.5 HP
• VOLTAGE: 1ø, 115V
• RPM: 3450
• MAX AMBIENT TEMPERATURE: 120°F/49°C
• LEAD: 3-wire
Water Well Pump Ends
• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 11 GPM
• HORSEPOWER: 0.5 HP
• MAXIMUM CAPACITY: 16 GPM
• MAXIMUM HEAD: 250’
• STAGES: 8
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Noryl
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Flint & Walling Rolled Shell Patriot Series 11 GPM Submersible Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Flint & Walling Rolled Shell Patriot Series Submersible Pump Product Resources

Download Flint & Walling Rolled Shell Patriot Series Submersible Pump Brochure FW1676

Download Flint & Walling Submersible Pump Installation Instructions 135874
