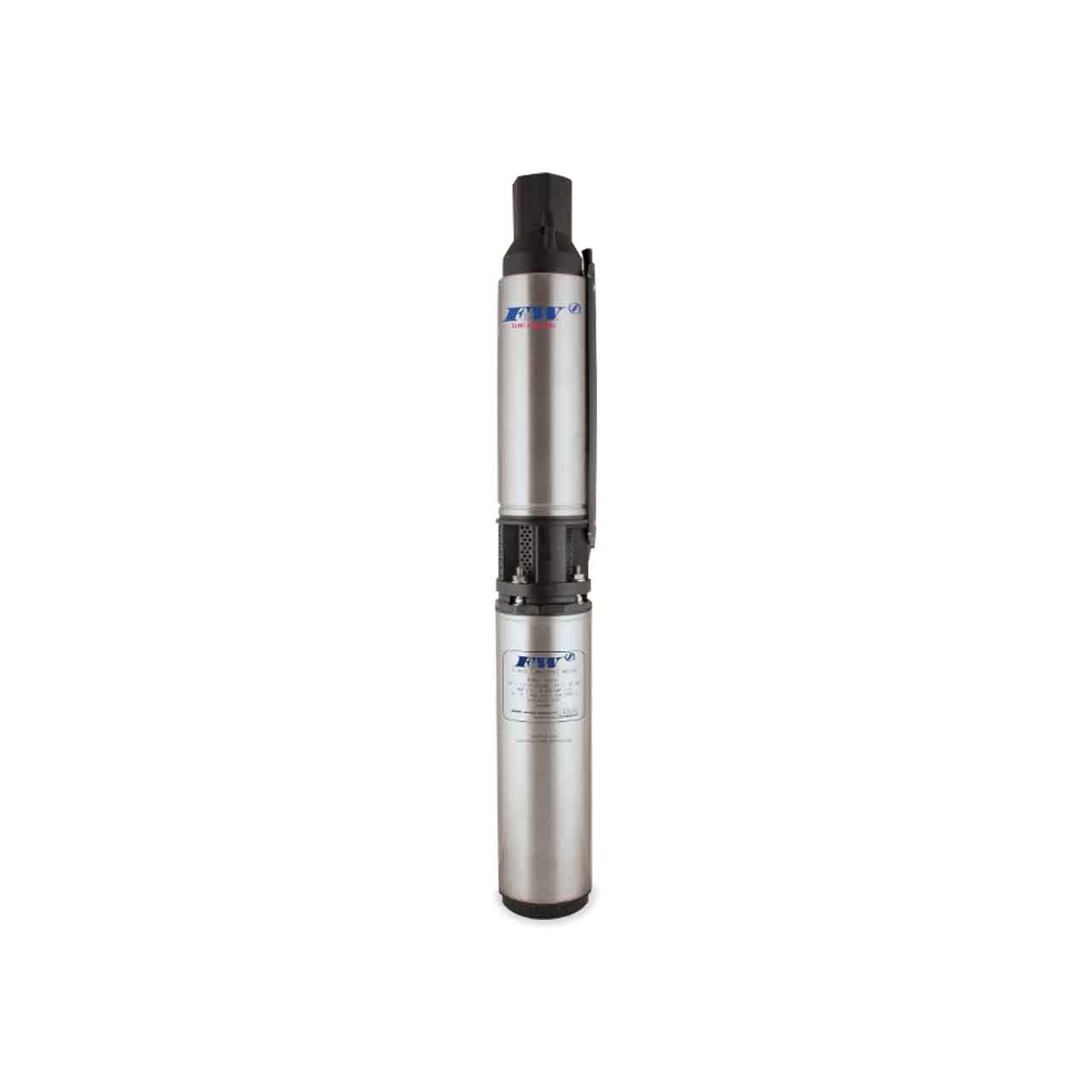

Flint & Walling 4" Rolled Shell Patriot Series 4F05P05305S Submersible Pump 5 GPM 0.5 HP 230V 1PH 2-Wire
Flint & Walling 4" Rolled Shell Patriot Series 4F05P05305S Submersible Pump 5 GPM 0.5 HP 230V 1PH 2-Wire
SKU : FWG4F05P05305S
In Stock Quantity:0
:
Brand
:
Regular price
$1,530.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Flint & Walling Rolled Shell Patriot Series Submersible Pump
Our Rolled Shell Patriot® Series is backed by 100% wet testing. We have tested this series to resist up to 3,500 lbs. of pull force, it exemplifies strength and resilience. Proudly paired with our 4" submersible motor, it ensures seamless integration for optimized functionality.
Designed with the contractor in mind, it prioritizes practicality and efficiency at every turn
Flint & Walling Rolled Shell Patriot Series Submersible Pump Features
- Made in the USA with a Majority of USA Content.
- Tested to Resist up to 3,500 lbs of Pull Force
- Glass-Filled Noryl Discharge & Mounting Ring Reinforce Structural Integrity
- Upgraded Full Staging for Improved Performance
- Floating Impeller Stack Easily Passes Debris and Prevents Damage
- Integrated Spider Bearing for Tighter Pump Shaft Security
- Paired with Flint & Walling's 4" Submersible Motor
Specifications
Specifications
Flint & Walling 4F05P05305S Submersible Pump Specifications
-
Water Well Motors
- BODY CONSTRUCTION: Stainless Steel
- HORSEPOWER: 0.5 HP
- VOLTAGE: 1ø, 230V
- RPM: 3450
- MAX AMBIENT TEMPERATURE: 120°F/49°C
- LEAD: 2-wire Water Well Pump Ends
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 5 GPM
- HORSEPOWER: 0.5 HP
- MAXIMUM CAPACITY: 9 GPM
- MAXIMUM HEAD: 400’
- STAGES: 15
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Noryl
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Flint & Walling Rolled Shell Patriot Series 5 GPM Submersible Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Flint & Walling Rolled Shell Patriot Series Submersible Pump Product Resources
Download Flint & Walling Rolled Shell Patriot Series Submersible Pump Brochure FW1676
Download Flint & Walling Submersible Pump Installation Instructions 135874
