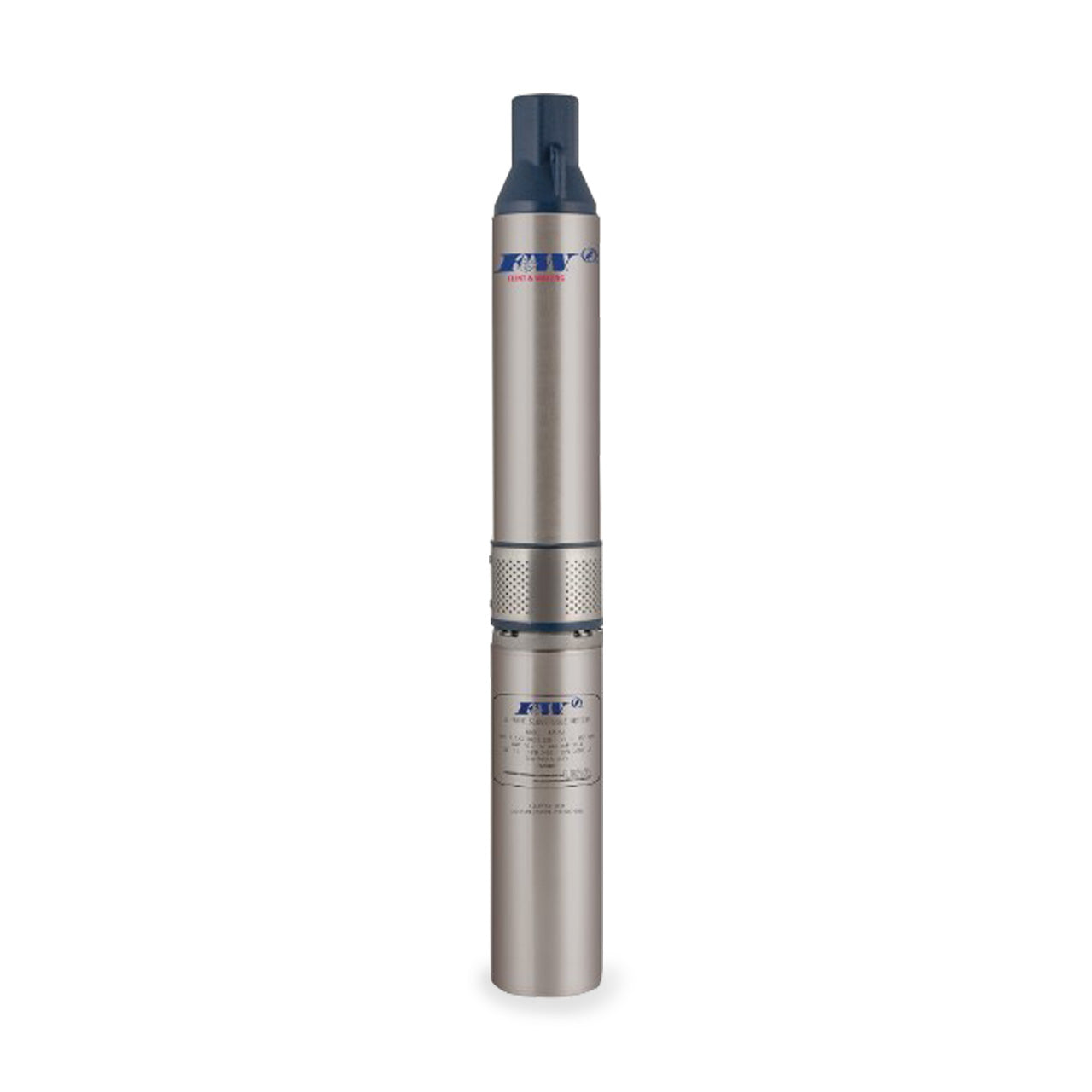

Flint & Walling Cast Iron Captain Series Submersible Pump Features

• Discharge Head: Cast Iron, 1-1/4" NPT, Safety Rope Eyelet Included
• Check Valve Poppet: Internal Removable, With Elastomer Seal Ring
• Top Bearing: Closed, Sintered, Lead-Free Sleeve Bearing
• Pump Shell: Heavy Wall Stainless Steel.
• Cable Guard: Stainless Steel or Crush-Proof PVC
• Staging*: Noryl® Impellers and Diffusers; Stainless Steel Floating Bearing Inserts and Acetal Diffuser Plates
• Pump Shaft*: Stainless Steel Hex Shaft with One Piece Motor-To-Shaft Coupling
• Motor Bracket: NEMA Standard, Cast Iron with Stainless Steel Suction Screen
• Motor: 1/2 thru 2 HP, 1PH Pumps Feature Flint & Walling Motors
• Motor Controls: Control Boxes Required for Three-Wire, 1PH Motors. Order Controls Separately

Flint & Walling 4F19A10305 Submersible Pump Specifications

Water Well Motors
• BODY CONSTRUCTION: Stainless Steel
• HORSEPOWER: 1.0 HP
• VOLTAGE: 1ø, 230V
• RPM: 3450
• MAX AMBIENT TEMPERATURE: 120°F/49°C
• LEAD: 2-wire
Water Well Pump Ends
• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 19 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: 26 GPM
• MAXIMUM HEAD: 290’
• STAGES: 9
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Noryl
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Flint & Walling Cast Iron Captain Series 19 GPM Submersible Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Flint & Walling Cast Iron Captain Series Submersible Pump Product Resources

Download Flint & Walling Cast Iron Captain Series Submersible Pump Brochure FW1674

Download Flint & Walling Repair Parts Catalog FW1254

Download Flint & Walling Submersible Pump Installation Instructions 135874
