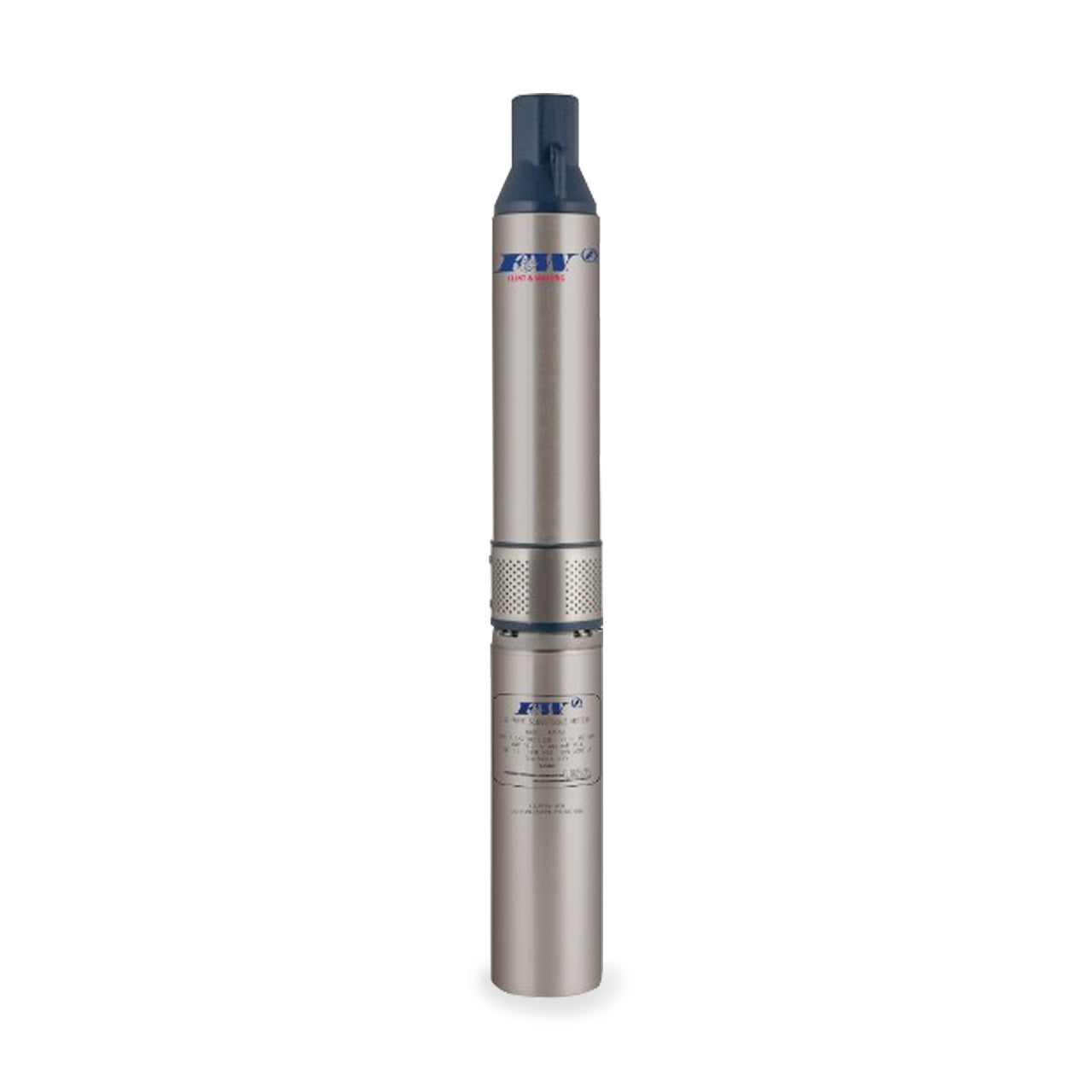

Flint & Walling 4" Cast Iron Captain Series 4F07A15305 Submersible Pump 7 GPM 1.5 HP 230V 1PH 2-Wire

Flint & Walling 4" Cast Iron Captain Series 4F07A15305 Submersible Pump 7 GPM 1.5 HP 230V 1PH 2-Wire

Usually ships within 1 week

SKU : FWG4F07A15305

In Stock Quantity:0

:
$3,018.60 USD
Shipping calculated at checkout.

Description


Our Cast Iron Captain Series stands as a testament to robust water system solutions. With a corrosion-resistance cable guard, NEMA standard motor mounting ring, and field replaceable cartridge assembly, our pump ensures durability. The stainless steel hex drive and shaft coupling further enhance reliability, making it an ideal choice for demanding water systems.
Our Cast Iron Captain Series is designed for top tier performance as it offers a corrosion-resistant and field-replaceable solution for reliable water system operations.

Flint & Walling Cast Iron Captain Series Submersible Pump Features

  • Discharge Head: Cast Iron, 1-1/4" NPT, Safety Rope Eyelet Included
  • Check Valve Poppet: Internal Removable, With Elastomer Seal Ring
  • Top Bearing: Closed, Sintered, Lead-Free Sleeve Bearing
  • Pump Shell: Heavy Wall Stainless Steel.
  • Cable Guard: Stainless Steel or Crush-Proof PVC
  • Staging*: Noryl ® Impellers and Diffusers; Stainless Steel Floating Bearing Inserts and Acetal Diffuser Plates
  • Pump Shaft*: Stainless Steel Hex Shaft with One Piece Motor-To-Shaft Coupling
  • Motor Bracket: NEMA Standard, Cast Iron with Stainless Steel Suction Screen
  • Motor: 1/2 thru 2 HP, 1PH Pumps Feature Flint & Walling Motors
  • Motor Controls: Control Boxes Required for Three-Wire, 1PH Motors. Order Controls Separately

Specifications

Flint & Walling 4F07A15305 Submersible Pump Specifications

    Water Well Motors
  • BODY CONSTRUCTION: Stainless Steel
  • HORSEPOWER: 1.5 HP
  • VOLTAGE: 1ø, 230V
  • RPM: 3450
  • MAX AMBIENT TEMPERATURE: 120°F/49°C
  • LEAD: 2-wire
    • Water Well Pump Ends
  • DISCHARGE SIZE: 1.25” FNPT
  • NOMINAL FLOW RATING: 7 GPM
  • HORSEPOWER: 1.5 HP
  • MAXIMUM CAPACITY: 13 GPM
  • MAXIMUM HEAD: 750’
  • STAGES: 24
  • IMPELLER DESIGN: Floating Stack
  • IMPELLER MATERIAL: Noryl
  • BODY MATERIAL: Stainless Steel
  • MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Flint & Walling Cast Iron Captain Series 7 GPM Submersible Pump Curve


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Flint & Walling Cast Iron Captain Series Submersible Pump Product Resources


Download Flint & Walling Cast Iron Captain Series Submersible Pump Brochure FW1674

Download Flint & Walling Repair Parts Catalog FW1254

Download Flint & Walling Submersible Pump Installation Instructions 135874
