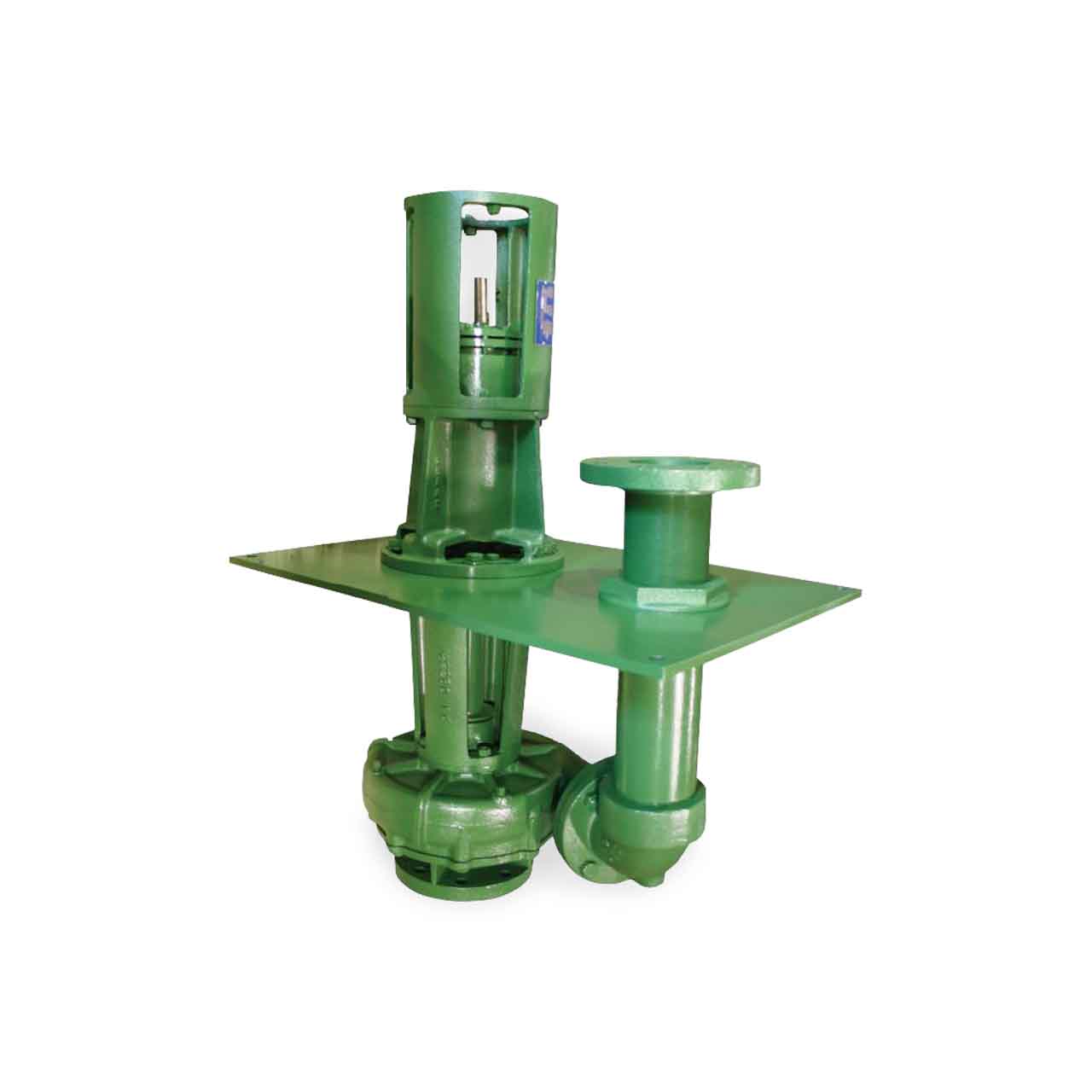

Deming Vertical Process Pump Product Description

Deming Vertical Process Pumps are designed for continuous duty operation. They combine advanced engineering techniques in hydraulic design and craftsmanship to meet the multiple requirements of industrial and chemical process service and will handle clear liquids or liquids with small solids in suspension.

All parts are located below the pump base plate may be submerged in liquid, even corrosive liquids, as the pump bearings are located above the pump base plate. Top of tank mounting provides for easy maintenance.

Pump priming, troublesome shaft sealing problems have been eliminated due to pump liquid end parts being fully submerged.

The pump's outstanding performance includes a semi-open impeller, easily adjustable to compensate for wear, volute type casing, advanced hydraulic design and machine register fit at all assembly points to ensure positive alignment.

Maximum interchangeability on a minimum number of parts ensures economical, trouble free service and reduced maintenance costs.

Deming Vertical Process Pump Typical Application

• Coolants
• Metal and Parts Washing
• Filtering
• Air Conditioning
• Pickling
• Circulation
• Paint Systems Plating
• Air Washers
• Pollution Control

Deming Vertical Process Pump Standard Features

• CASING - Vertically Split, End Suction Design. Double Volute Type on Pumps with 3" and Larger Discharge.
• IMPELLER - Series 5560 Pumps Have Semi-Open Type Impeller with Heavy Vanes for Outstanding Performance. Back Pump-Out Vanes on a Semi-Open Impeller Reduces Pressure Behind the Impeller and Limits Axial Thrust.
• POWER FRAME - Heavy Duty, One Piece Cast Iron, Precision Bored and Machined to Assure Alignment of the Rotating Assembly. Series 4310-11 Pumps are Short Set Design. Series 5560 are Available in 9",12" and 15" Extension Lengths Below the Support Plate.
• SHAFT - High Strength Shaft is Extra Heavy for Maximum Deflection. Impeller is Keyed to Shaft and Locked with Impeller Nut or Large Cap Screw.

See Resources for Links to the  Specifications and Pump Curves.

Call customer service for more details and pricing.
