DISCONTINUED REPLACEMENT IS Weinman Series 500 Single Stage End Suction Centrifugal Pumps

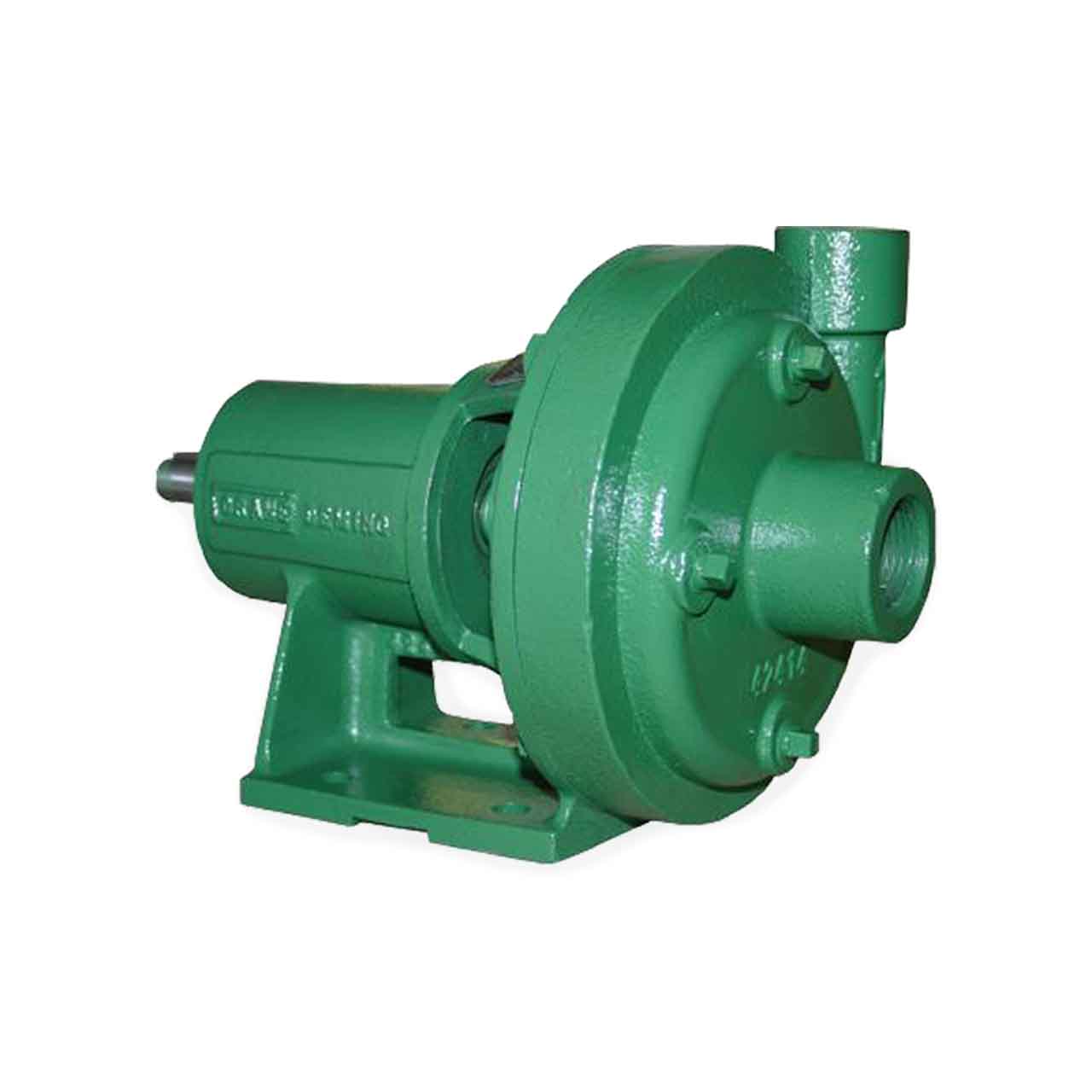

Deming 4X3X6 2B Frame Mount End Suction Pump

Deming Series 3000 End Suction Centrifugal Pumps set the industry standard for low maintenance, high performance and rugged reliability. Built for coninuous operation in industrial services, the pumps come in frame-mounted and close coupled designs using JM motor shaft dimensions.

The 3000 Series features a hydraulically balanced, computer-designed, enclosed impeller to ensure the highest hydraulic efficiency available in the pump industry. Maximum interchangeability of parts allows for reduced parts inventories. Other features include a rugged, one-piece casting for suction head and casing; back pull-out design for ease of maintenance and regreaseable bearings.

Industrial and HVAC users install and operate the 3000 Series End Suction Centrifugal Pumps because they provide continuous service with essentially no maintenance. OEM users utilize them because of their reliability, low maintenance and compact design.

Deming 4X3X6 2B Frame Mount End Suction Pump Applications

• General Water Service
• Chilled & Hot Water Systems
• Cooling Tower
• HVAC
• Industrial Processes
• Municipal Drinking Water
• Sprinkler & Irrigation Systems

Deming 4X3X6 2B Frame Mount End Suction Pump Features

• Frame - Heavy Duty Cast Iron Construction. Grease Lubricated.
• Shaft - Heavy 4140 Steel.
• Shaft Sleeve - Hooked Style for Maximum Drive and 316 Stainless Steel for Serviceability.
• Liquid End - Top Centerline Back Pull-Out Design Allows Disassembly without Disturbing the Suction and/or Discharge Piping.
• Impeller - Enclosed, Statically and Hydraulically Balanced for Optimum Performance. Straight Bore Design for Interchangeability on Both Frame and Close-Coupled Designs.
• Impeller/Adapter Wearing Rings - Optional.
• Adapter Assembly - Combination Motor/Frame Support and Seal Housing.

Deming 4X3X6 2B Frame Mount End Suction Pump Specifications

Deming 4X3X6 2B Frame Mount End Suction Pump Performance Curve
