Deming 4X3X13 Model 3121 4B Frame Mount End Suction Pump
Deming 4X3X13 Model 3121 4B Frame Mount End Suction Pump
SKU : DEM312130441
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED REPLACEMENT IS Weinman Series 500 Single Stage End Suction Centrifugal Pumps

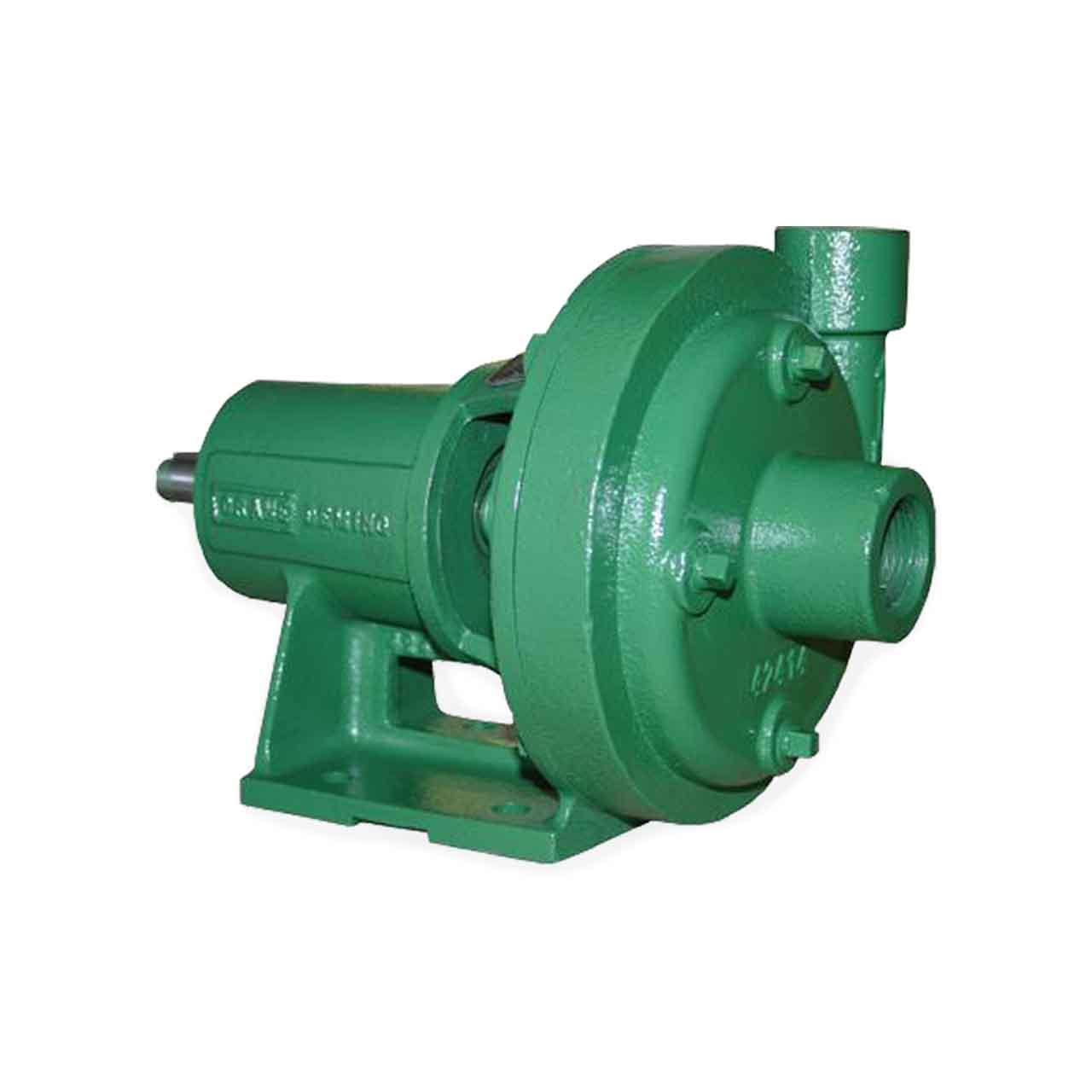

Deming 4X3X13 4B Frame Mount End Suction Pump
Deming Series 3000 End Suction Centrifugal Pumps set the industry standard for low maintenance, high performance and rugged reliability. Built for continuous operation in industrial services, the pumps come in frame-mounted and close coupled designs using JM motor shaft dimensions.
The 3000 Series features a hydraulically balanced, computer-designed, enclosed impeller to ensure the highest hydraulic efficiency available in the pump industry. Maximum interchangeability of parts allows for reduced parts inventories. Other features include a rugged, one-piece casting for suction head and casing; back pull-out design for ease of maintenance and regreaseable bearings.
Industrial and HVAC users install and operate the 3000 Series End Suction Centrifugal Pumps because they provide continuous service with essentially no maintenance. OEM users utilize them because of their reliability, low maintenance and compact design.
Deming 4X3X13 4B Frame Mount End Suction Pump Applications
- General Water Service
- Chilled & Hot Water Systems
- Cooling Tower
- HVAC
- Industrial Processes
- Municipal Drinking Water
- Sprinkler & Irrigation Systems
Deming 4X3X13 4B Frame Mount End Suction Pump Features
- Frame - Heavy Duty Cast Iron Construction. Grease Lubricated.
- Shaft - Heavy 4140 Steel.
- Shaft Sleeve - Hooked Style for Maximum Drive and 316 Stainless Steel for Serviceability.
- Liquid End - Top Centerline Back Pull-Out Design Allows Disassembly without Disturbing the Suction and/or Discharge Piping.
- Impeller - Enclosed, Statically and Hydraulically Balanced for Optimum Performance. Straight Bore Design for Interchangeability on Both Frame and Close-Coupled Designs.
- Impeller/Adapter Wearing Rings - Optional.
- Adapter Assembly - Combination Motor/Frame Support and Seal Housing.
Specifications
Specifications
Deming 4X3X13 4B Frame Mount End Suction Pump Specifications
- RPM: 3500/1750 RPM
- DISCHARGE SIZE: 3.0" 125/300# ASA Flat Face Flange Discharge Connection
- SUCTION SIZE: 4.0"
- STANDARD IMPELLER DIAMETER: 13" Maximum Impeller Diameter
- MODEL TYPE: 4B
- MAX HEAD: 540'
- MAX FLOW RATE: 1478 GPM
Deming 4X3X13 4B Frame Mount End Suction Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Deming 4X3X13 4B Frame Mount End Suction Pump Product Resources
Download Deming Frame Mount End Suction Pump Brochure
Download Deming Frame Mount End Suction Pump Specifications
Download Deming Frame Mount End Suction Pump Pressure Ratings
Download Deming Frame Mount End Suction Pump Max BPH for Frames
Download Deming Frame Mount End Suction Pump Assembly
Download Deming Frame Mount End Suction Pump Technical Data
Download Deming Frame Mount End Suction Pump Interchangability Chart
Download Deming Frame Mount End Suction Pump Performance Curve
Download Deming Frame Mount End Suction Pump Selection Curve
