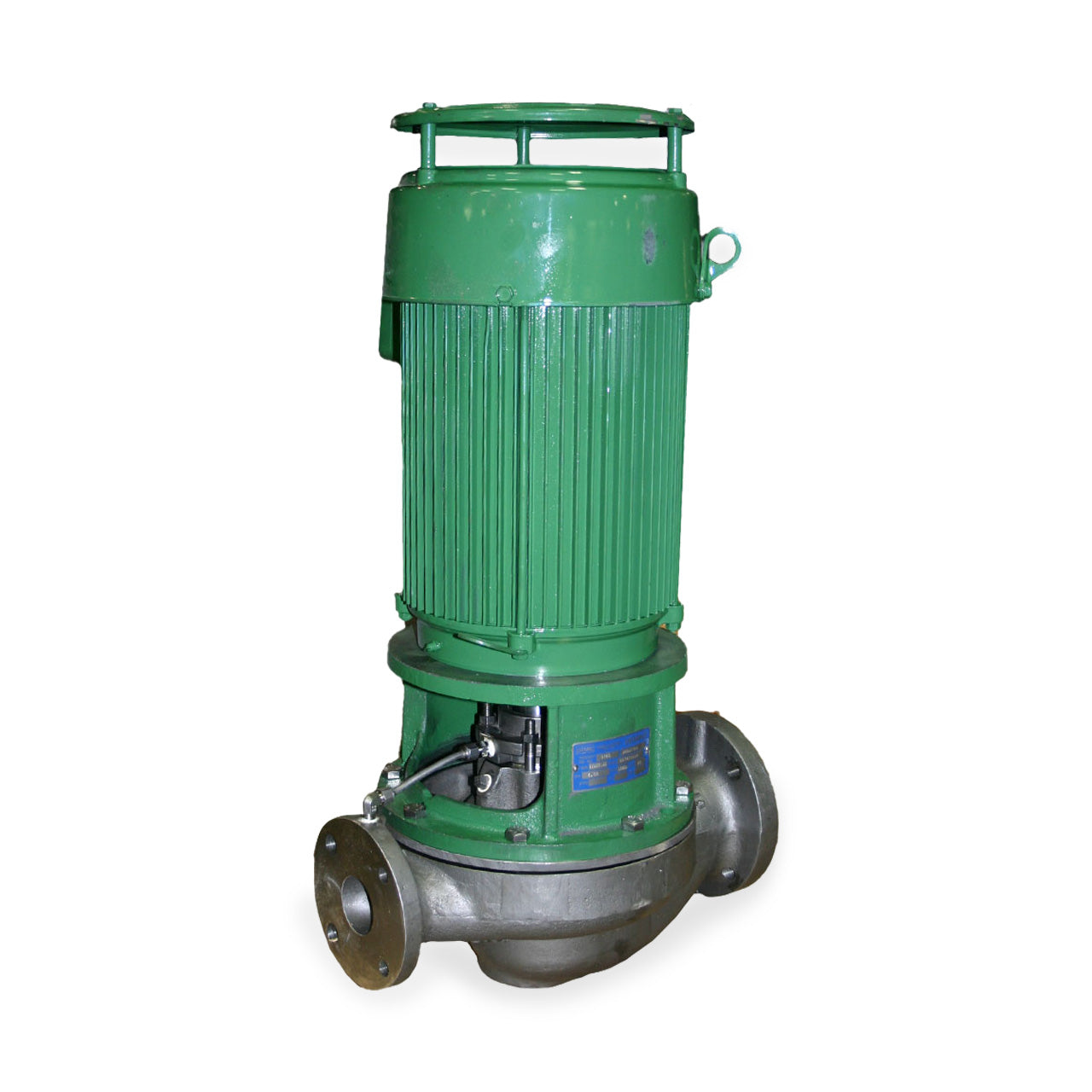

Deming 3X2X9-1/2 TEFC Vertical In-Line Industrial Process Pump 75 HP 230/460V 3PH
Deming 3X2X9-1/2 TEFC Vertical In-Line Industrial Process Pump 75 HP 230/460V 3PH
SKU : DEM3186205390
In Stock Quantity:0
:
:
Brand
:
Regular price
$106,551.20 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Deming 3X2X9-1/2 Vertical In-Line Industrial Process Pump
Deming Industrial Process Pumps offer you a broad line of pumps with a proven, cost saving in-line design. These versatile pumps efficiently handle a wide range of corrosive and non-corrosive liquids from water to hydrocarbons.
Deming 3X2X9-1/2 Vertical In-Line Industrial Process Pump Applications
- Chemical
- Petrochemical, Petroleum, Coal
- Fiber
- Pulp and Paper
- Food and Beverage
- Pharmaceutical Fats and Oils
- Soap
- Paint
- Automotive
- Primary Metal
- Rubber
- Metal
- Fabrication
- Utility
Deming 3X2X9-1/2 Vertical In-Line Industrial Process Pump Features
- Top Pull-Out Simplifies Maintenance: Complete Rotating Assembly Easily Removed for Inspection without Disturbing Piping. Full Circle Register Protected by CONFINED GASKET Assures Permanent Alignment.
- Dual Purpose Jack Screws: Built-In Jack Screws Simplify Removal and Protect Mechanical Seal During Disassembly. Packing Box Cover is Held Securely in Place on Adaptor After Pull-Out.
- Protected Shaft: One-Piece Shaft Assures Sustained Positive Alignment of Complete Pump-Motor Rotating Element, Eliminates Couplings and Minimizes Shaft Deflection. The Shaft Sleeve is a Non-Hooked Style and is Free to expand with Temperature Variation. It Extends Through the Gland, is Keyed to the Shaft and is Isolated from Contact with Liquid by Sleeve and Teflon O-Ring and Flat Gaskets.
Specifications
Specifications
Deming 3X2X9-1/2 Vertical In-Line Industrial Process Pump Specifications
- HORSEPOWER: 75 HP
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 3500 RPM
- DISCHARGE PIPE SIZE: 2.0" Discharge
- SUCTION SIZE: 3.0"
- STANDARD IMPELLER DIAMETER: 9-1/2"
- MOTOR ENCLOSURE: Totally Closed Motor (TEFC)
- PUMP SIZE: VA60-E
- MAX HEAD: 372'
- MAX FLOW RATE: 656 GPM
Deming 3X2X9-1/2 Vertical In-Line Industrial Process Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa 3X2X9-1/2 Vertical In-Line Industrial Process Pump Product Resources
Download Deming Vertical In-Line Industrial Process Pump Brochure
Download Deming Vertical In-Line Industrial Process Pump Specifications
Download Deming Vertical In-Line Industrial Process Pump Pressure Temperature Ratings
Download Deming Vertical In-Line Industrial Process Pump Corrosion Allowance
Download Deming Vertical In-Line Industrial Process Pump Piping Connection
Download Deming Vertical In-Line Industrial Process Pump Assembly
Download Deming Vertical In-Line Pump Performance Curve
Download Deming Vertical In-Line Pump 3500RPM Selection Curve
