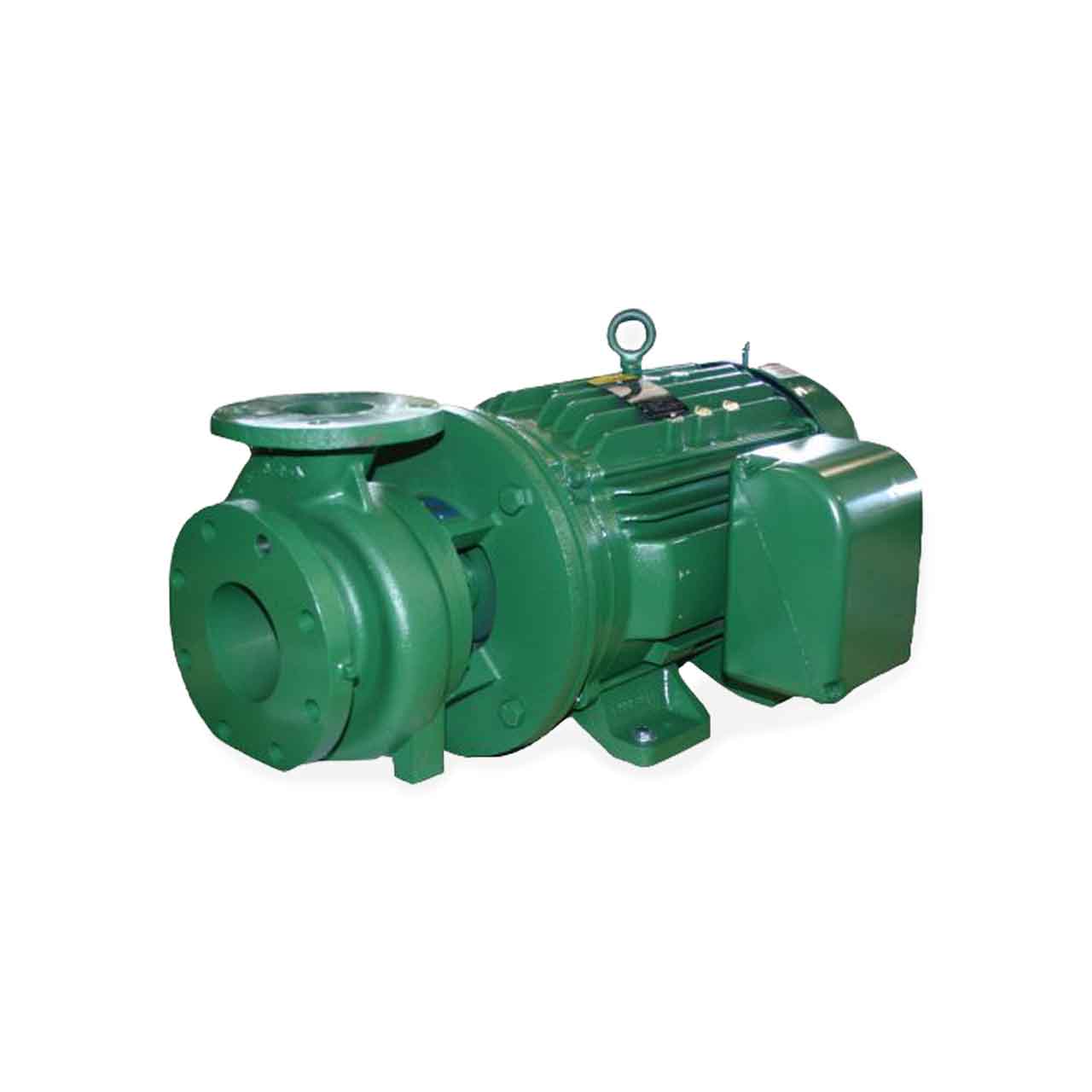

Deming 3X2X10 ODP Close Coupled Motor Mount Centrifugal Pump 60 HP 3PH
Deming 3X2X10 ODP Close Coupled Motor Mount Centrifugal Pump 60 HP 3PH
SKU : DEM3122203184
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued see replacement Weinman Series 310 End Suction Close Coupled Centrifugal Pumps
Deming 3X2X10 Close Coupled Motor Mount Centrifugal Pump
Deming Series 3000 End Suction Centrifugal Pumps set the industry standard for low maintenance, high performance and rugged reliability. Built for coninuous operation in industrial services, the pumps come in frame-mounted and close coupled designs using JM motor shaft dimensions.
The 3000 Series features a hydraulically balanced, computer-designed, enclosed impeller to ensure the highest hydraulic efficiency available in the pump industry. Maximum interchangeability of parts allows for reduced parts inventories. Other features include a rugged, one-piece casting for suction head and casing; back pull-out design for ease of maintenance and regreaseable bearings.
Industrial and HVAC users install and operate the 3000 Series End Suction Centrifugal Pumps because they provide continuous service with essentially no maintenance. OEM users utilize them because of their reliability, low maintenance and compact design.
Deming 3X2X10 Close Coupled Motor Mount Centrifugal Pump Applications
- General Water Service
- Chilled & Hot Water Systems
- Cooling Tower
- HVAC
- Industrial Processes
- Municipal Drinking Water
- Sprinkler & Irrigation Systems
Deming 3X2X10 Close Coupled Motor Mount Centrifugal Pump Features
- Liquid End - Top Centerline Back Pull-Out Design Allows Disassembly without Disturbing the Suction and/or Discharge Piping.
- Impeller - Enclosed Type, Statically and Hydraulically Balanced for Optimum Performance. Straight Bore Design for Interchangeability on Both Frame and Close-Coupled Designs.
- Impeller/Adapter Wearing Rings - Are Optional on Enclosed Impellers.
- Adapter Assembly - Combination Motor/Frame Support and Seal Housing.
- Shaft Sleeve - Hooked Style for Maximum Drive and 316 Stainless Steel for Serviceability.
- Motor - Close Coupled JM Frame.
Specifications
Specifications
Deming 3X2X10 Close Coupled Motor Mount Centrifugal Pump Specifications
- HORSEPOWER: 60 HP
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 3500 RPM
- DISCHARGE SIZE: 2.0" NPT Discharge Connection
- SUCTION SIZE: 3.0"
- STANDARD IMPELLER DIAMETER: 10" Maximum Impeller Diameter
- MOTOR ENCLOSURE: Open Drip Proof Motor (ODP)
- MODEL TYPE: 2B
- MOTOR FRAME SIZE: 326JM
- MAX HEAD: 440'
- MAX FLOW RATE: 700 GPM
Deming 3X2X10 Close Coupled Motor Mount Centrifugal Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Deming 3X2X10 Close Coupled Motor Mount Centrifugal Pump Product Resources
Download Deming End Suction Centrifugal Pump Brochure
Download Deming End Suction Centrifugal Pump Specifications
Download Deming End Suction Centrifugal Pump Pressure Ratings
Download Deming End Suction Centrifugal Pump Max BPH for Frames
Download Deming End Suction Centrifugal Pump Assembly
Download Deming End Suction Centrifugal Pump Technical Data
Download Deming End Suction Centrifugal Pump Interchangability Chart
Download Deming End Suction Centrifugal Pump Performance Curve
Download Deming End Suction Centrifugal Pump 3500RPM Selection Curve
