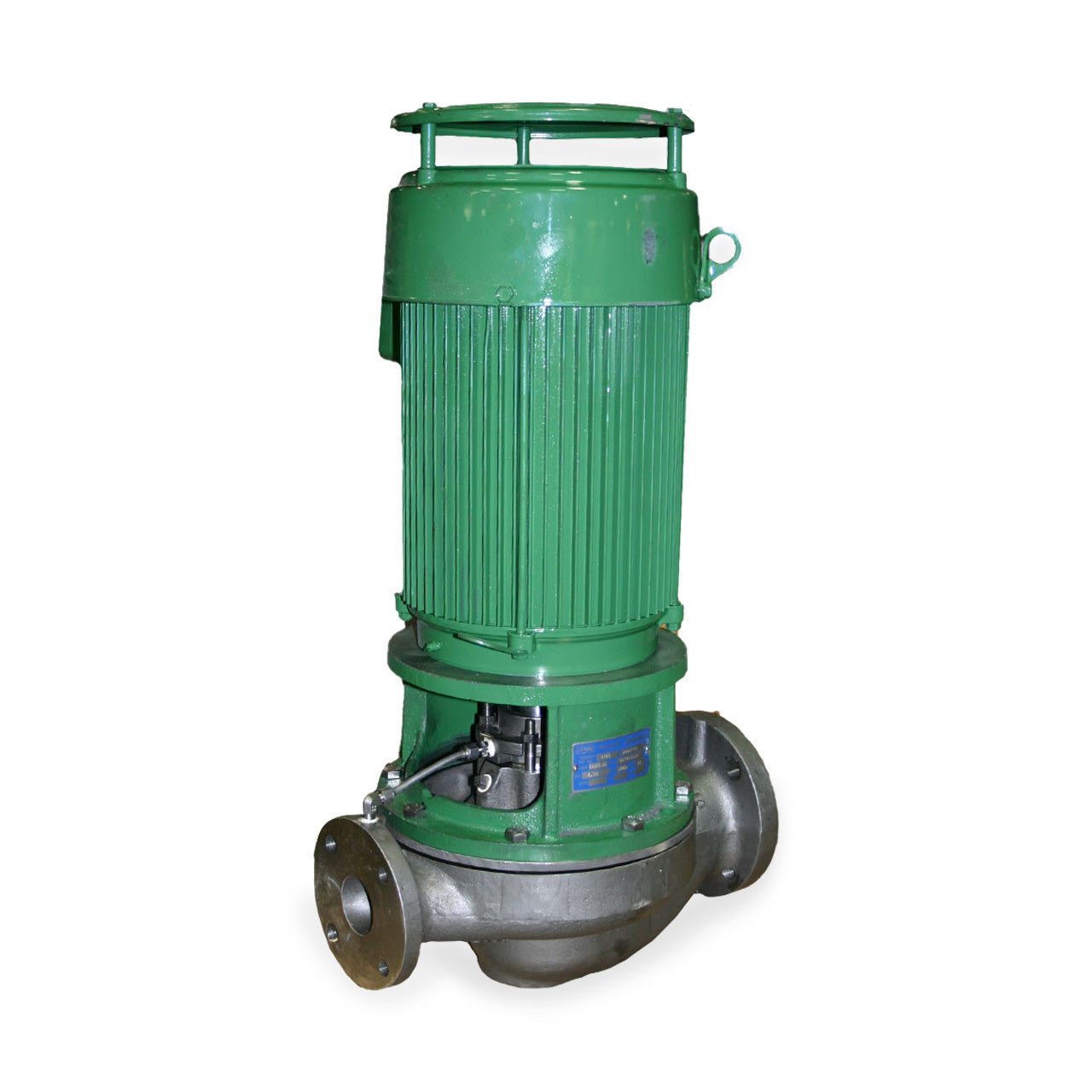

Deming 3X1-1/2X9-1/2 ODP Vertical In-Line Industrial Process Pump 50 HP 230/460V 3PH

Deming 3X1-1/2X9-1/2 ODP Vertical In-Line Industrial Process Pump 50 HP 230/460V 3PH

Usually ships within 5 weeks

SKU : DEM3185155170

In Stock Quantity:0

:
:
Brand : Deming
$52,966.40 USD
Shipping calculated at checkout.

Description

Deming 3X1-1/2X9-1/2 Vertical In-Line Industrial Process Pump

Deming Industrial Process Pumps offer you a broad line of pumps with a proven, cost saving in-line design. These versatile pumps efficiently handle a wide range of corrosive and non-corrosive liquids from water to hydrocarbons.

Deming 3X1-1/2X9-1/2 Vertical In-Line Industrial Process Pump Applications

  • Chemical
  • Petrochemical, Petroleum, Coal
  • Fiber
  • Pulp and Paper
  • Food and Beverage
  • Pharmaceutical Fats and Oils
  • Soap
  • Paint
  • Automotive
  • Primary Metal
  • Rubber
  • Metal
  • Fabrication
  • Utility

Deming 3X1-1/2X9-1/2 Vertical In-Line Industrial Process Pump Features

  • Top Pull-Out Simplifies Maintenance: Complete Rotating Assembly Easily Removed for Inspection without Disturbing Piping. Full Circle Register Protected by CONFINED GASKET Assures Permanent Alignment.
  • Dual Purpose Jack Screws: Built-In Jack Screws Simplify Removal and Protect Mechanical Seal During Disassembly. Packing Box Cover is Held Securely in Place on Adaptor After Pull-Out.
  • Protected Shaft: One-Piece Shaft Assures Sustained Positive Alignment of Complete Pump-Motor Rotating Element, Eliminates Couplings and Minimizes Shaft Deflection. The Shaft Sleeve is a Non-Hooked Style and is Free to expand with Temperature Variation. It Extends Through the Gland, is Keyed to the Shaft and is Isolated from Contact with Liquid by Sleeve and Teflon O-Ring and Flat Gaskets.

Specifications

Deming 3X1-1/2X9-1/2 Vertical In-Line Industrial Process Pump Specifications

  • HORSEPOWER: 50 HP
  • PHASE: 3 Ph
  • HERTZ: 60 Hz
  • RPM: 3500 RPM
  • DISCHARGE PIPE SIZE: 1-1/2" Discharge
  • SUCTION SIZE: 3.0"
  • STANDARD IMPELLER DIAMETER: 9-1/2"
  • MOTOR ENCLOSURE: Open Drip Proof Motor (ODP)
  • PUMP SIZE: VA50-E
  • MAX HEAD: 360'
  • MAX FLOW RATE: 360 GPM

Deming 3X1-1/2X9-1/2 Vertical In-Line Industrial Process Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa 3X1-1/2X9-1/2 Vertical In-Line Industrial Process Pump Product Resources


Download Deming Vertical In-Line Industrial Process Pump Brochure

Download Deming Vertical In-Line Industrial Process Pump Specifications

Download Deming Vertical In-Line Industrial Process Pump Pressure Temperature Ratings

Download Deming Vertical In-Line Industrial Process Pump Corrosion Allowance

Download Deming Vertical In-Line Industrial Process Pump Piping Connection

Download Deming Vertical In-Line Industrial Process Pump Assembly

Download Deming Vertical In-Line Pump Performance Curve

Download Deming Vertical In-Line Pump 3500RPM Selection Curve
