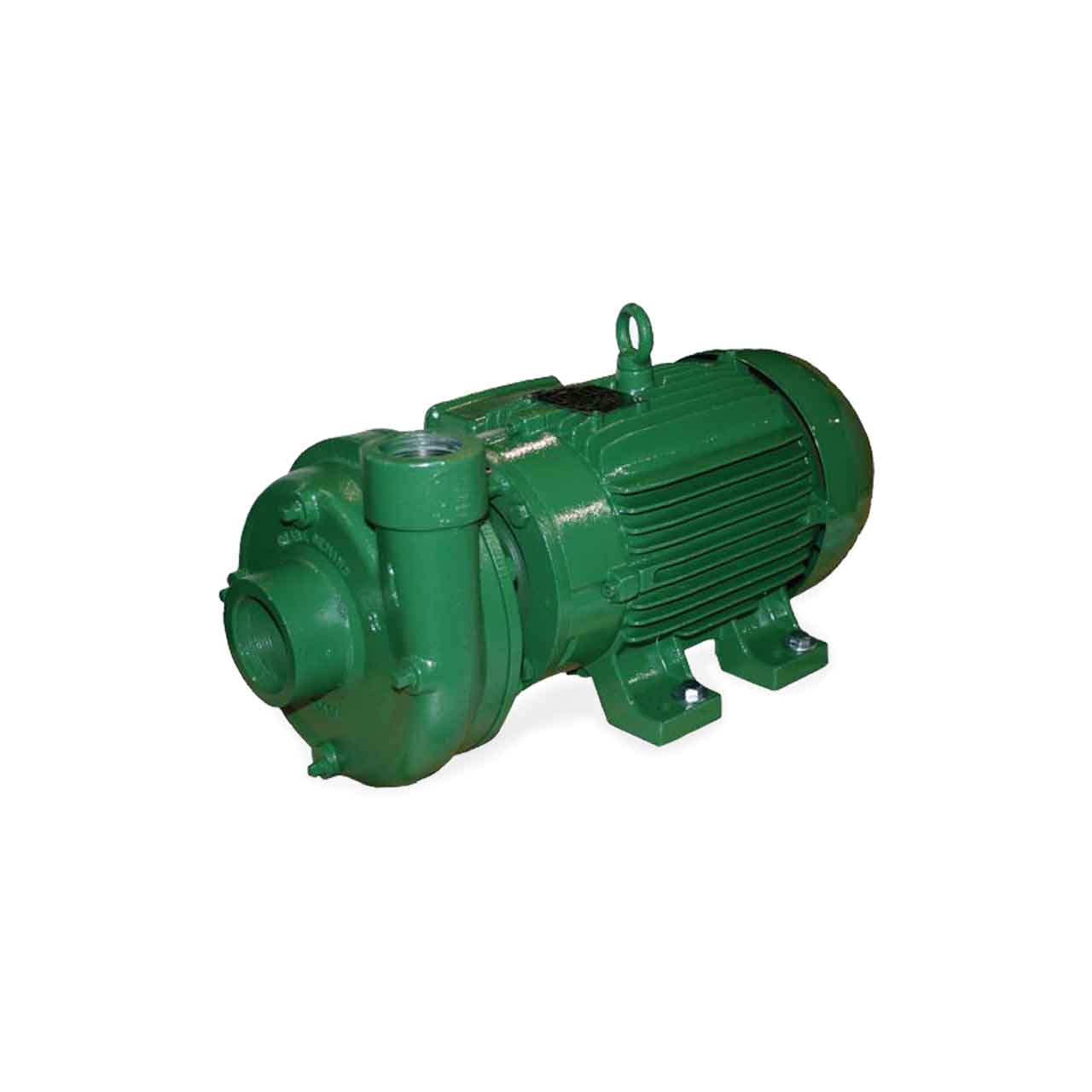

Deming 1-1/4X1X4 Close Coupled Motor Mount Centrifugal Pump

Deming Series 3000 End Suction Centrifugal Pumps set the industry standard for low maintenance, high performance and rugged reliability. Built for continuous operation in industrial services, the pumps come in frame-mounted and close coupled designs using JM motor shaft dimensions.

The 3000 Series features a hydraulically balanced, computer-designed, enclosed impeller to ensure the highest hydraulic efficiency available in the pump industry. Maximum interchangeability of parts allows for reduced parts inventories. Other features include a rugged, one-piece casting for suction head and casing; back pull-out design for ease of maintenance and regreaseable bearings.

Industrial and HVAC users install and operate the 3000 Series End Suction Centrifugal Pumps because they provide  continuous service with essentially no maintenance. OEM users utilize them because of their reliability, low maintenance and compact design.

Deming 1-1/4X1X4 Close Coupled Motor Mount Centrifugal Pump Applications

• General Water Service
• Chilled & Hot Water Systems
• Cooling Tower
• HVAC
• Industrial Processes
• Municipal Drinking Water
• Sprinkler & Irrigation Systems

Deming 1-1/4X1X4 Close Coupled Motor Mount Centrifugal Pump Features

• Motor Adapter - Combination Motor Support and Seal Housing.
• Shaft Assembly - Uses the Motor Shaft.
• Liquid End - Back Pull-Out Design Allows Disassembly without Disturbing the Suction and/or Discharge Piping.
• Impeller - Enclosed Type, hydraulically Balanced for Optimum Performance. Design Eliminates the Need for Wearing Rings, Reduces the Effects of Abrasive Action and Equalizes Pressure Between the Suction and Discharge Chambers of the Casing. Model 3112-1A is Threaded for Standard, Off-the-Shelf Jet Pump Motor and the 1A Bearing Frame. Model 3112-2A is Straight Bore for Interchangeability on JM Motor Shaft or 2A Frame.
• Motor - Model 3112-1A is a Threaded Shaft Jet Motor Design. Model 3112-2A is a Close Coupled JM Frame.

Deming 1-1/4X1X4 Close Coupled Motor Mount Centrifugal Pump Specifications

Deming 1-1/4X1X4 Close Coupled Motor Mount Centrifugal Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Deming 1-1/4X1X4 Close Coupled Motor Mount Centrifugal Pump Product Resources

Download Deming End Suction Centrifugal Pump Brochure

Download Deming End Suction Centrifugal Pump Specifications

Download Deming End Suction Centrifugal Pump Assembly

Download Deming End Suction Centrifugal Pump Technical Data

Download Deming End Suction Centrifugal Pump Interchangability Chart

Download Deming End Suction Centrifugal Pump Performance Curve

Download Deming End Suction Centrifugal Pump 3500RPM Selection Curve
