Discontinued see replacement Weinman Series 310 End Suction Close Coupled Centrifugal Pumps

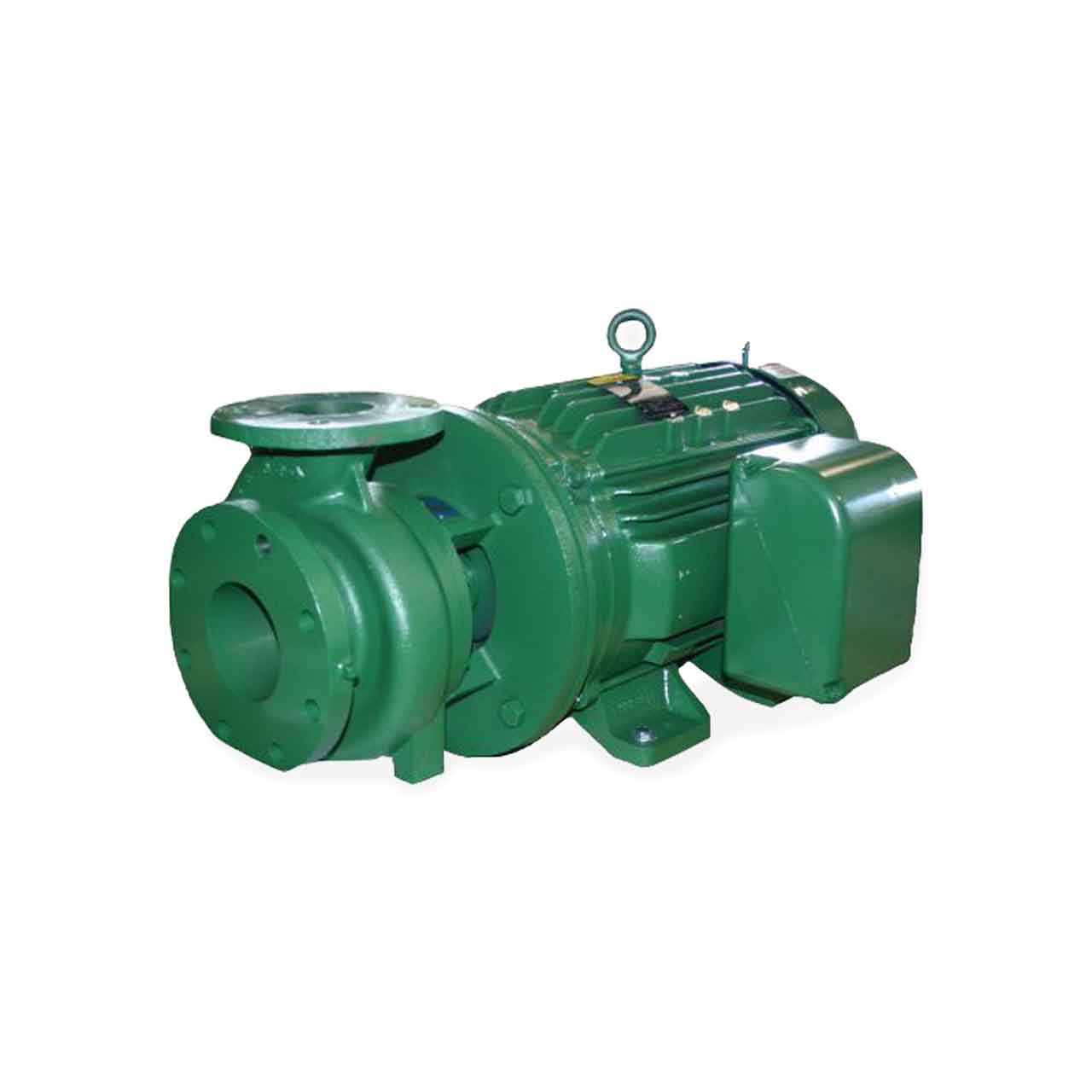

Deming 1-1/2X1X8 Close Coupled Motor Mount Centrifugal Pump

Deming Series 3000 End Suction Centrifugal Pumps set the industry standard for low maintenance, high performance and rugged reliability. Built for coninuous operation in industrial services, the pumps come in frame-mounted and close coupled designs using JM motor shaft dimensions.

The 3000 Series features a hydraulically balanced, computer-designed, enclosed impeller to ensure the highest hydraulic efficiency available in the pump industry. Maximum interchangeability of parts allows for reduced parts inventories. Other features include a rugged, one-piece casting for suction head and casing; back pull-out design for ease of maintenance and regreaseable bearings.

Industrial and HVAC users install and operate the 3000 Series End Suction Centrifugal Pumps because they provide  continuous service with essentially no maintenance. OEM users utilize them because of their reliability, low maintenance and compact design.

Deming 1-1/2X1X8 Close Coupled Motor Mount Centrifugal Pump Applications

• General Water Service
• Chilled & Hot Water Systems
• Cooling Tower
• HVAC
• Industrial Processes
• Municipal Drinking Water
• Sprinkler & Irrigation Systems

Deming 1-1/2X1X8 Close Coupled Motor Mount Centrifugal Pump Features

• Liquid End - Top Centerline Back Pull-Out Design Allows Disassembly without Disturbing the Suction and/or Discharge Piping.
• Impeller - Enclosed Type, Statically and Hydraulically Balanced for Optimum Performance. Straight Bore Design for Interchangeability on Both Frame and Close-Coupled Designs.
• Impeller/Adapter Wearing Rings - Are Optional on Enclosed Impellers.
• Adapter Assembly - Combination Motor/Frame Support and Seal Housing.
• Shaft Sleeve - Hooked Style for Maximum Drive and 316 Stainless Steel for Serviceability.
• Motor - Close Coupled JM Frame.

Deming 1-1/2X1X8 Close Coupled Motor Mount Centrifugal Pump Specifications

Deming 1-1/2X1X8 Close Coupled Motor Mount Centrifugal Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Deming 1-1/2X1X8 Close Coupled Motor Mount Centrifugal Pump Product Resources

Download Deming End Suction Centrifugal Pump Brochure

Download Deming End Suction Centrifugal Pump Specifications

Download Deming End Suction Centrifugal Pump Pressure Ratings

Download Deming End Suction Centrifugal Pump Max BPH for Frames

Download Deming End Suction Centrifugal Pump Assembly

Download Deming End Suction Centrifugal Pump Technical Data

Download Deming End Suction Centrifugal Pump Interchangability Chart

Download Deming End Suction Centrifugal Pump Performance Curve

Download Deming End Suction Centrifugal Pump 3500RPM Selection Curve
