CSI Controls RKSF230 RK Single Phase Simplex Control Panel
CSI Controls RKSF230 RK Single Phase Simplex Control Panel
SKU : CP-CSIRKSF230
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
CSI Controls RK Series Single Phase Simplex Pump Control Panel Description
Single Phase, Simplex Demand Float Control System for Pump Control and System Monitoring

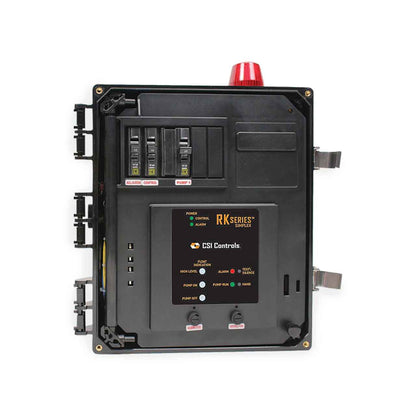

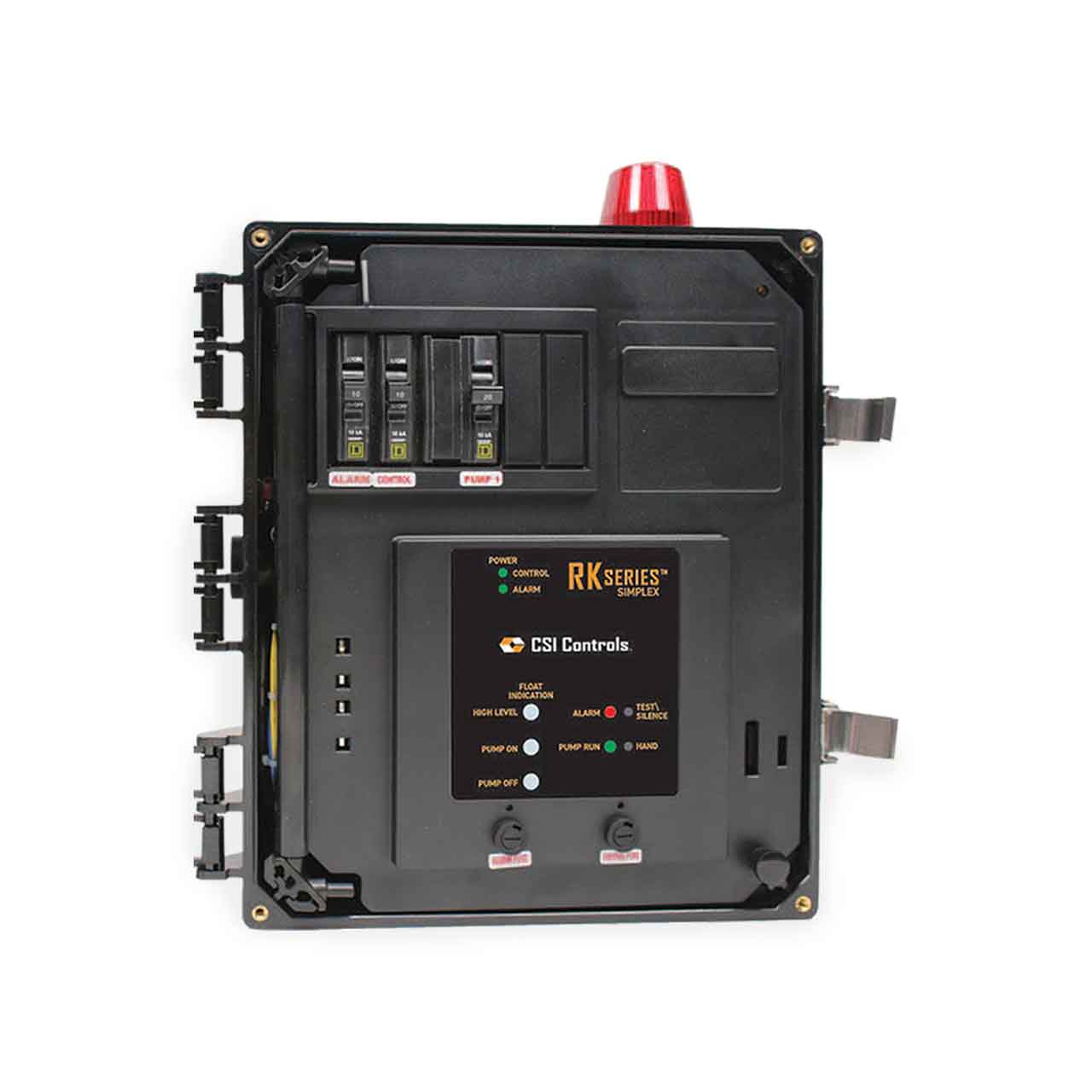

The RK Series™ Single Phase Simplex panel is designed to control one 115/230 VAC single phase pump in water and sewage installations. The protective inner door features panel operating status indicators, control buttons and provides access to the pump and control circuit breakers.
CSI Controls RK Series Single Phase Simplex Pump Control Panel Features

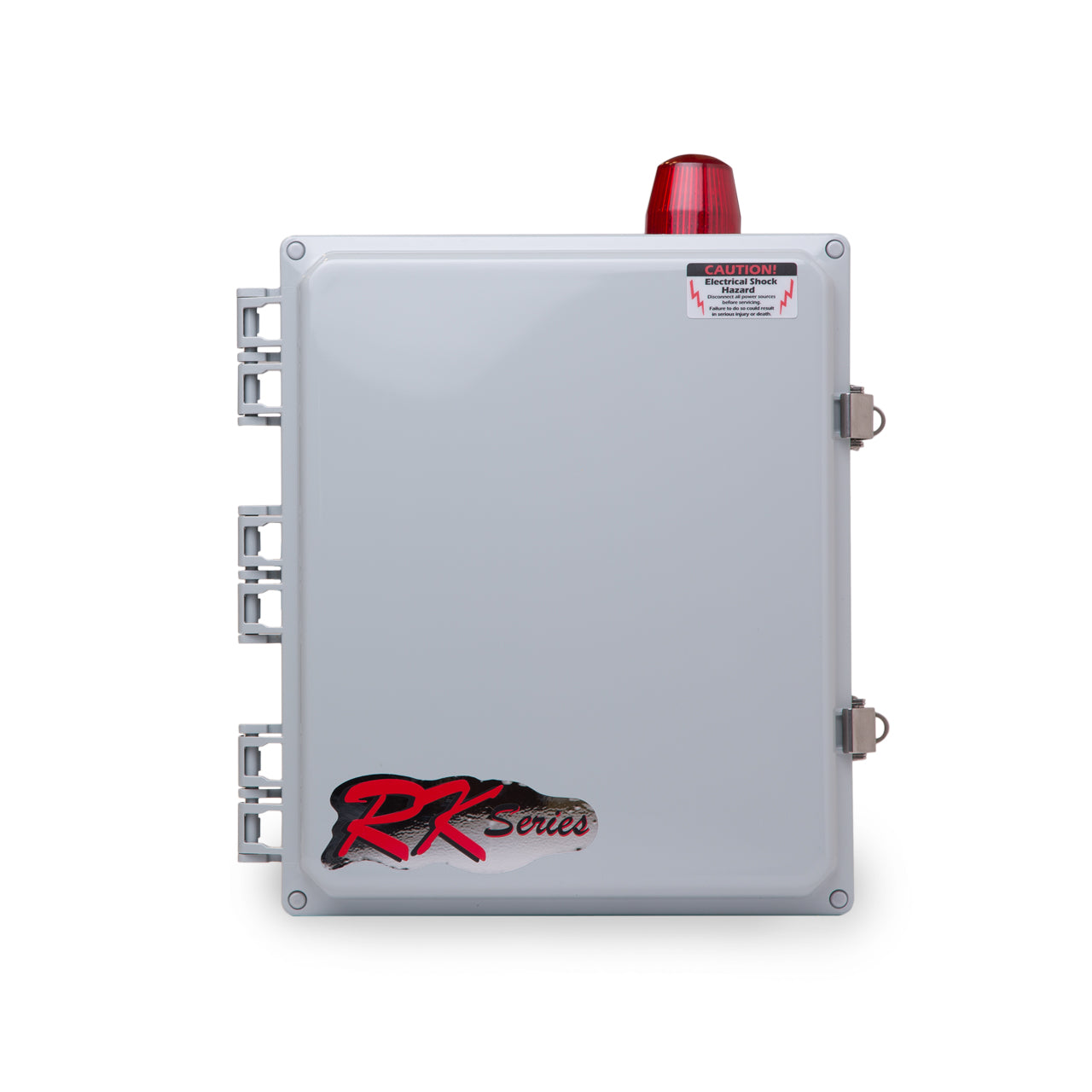

- NEMA 4X Engineered Thermoplastic Enclosure with Lockable Latches.
- Flashing Red 360° Alarm Beacon with Horn, Includes Innovative Touch to Silence Pad.
- Float Indication Lights Allow the User to See the Status of Each Float and Flashes Should a Float Fail Out-of-Sequence.
- Pump Push to Run with Low Level Protection when Activated Manually.
- Includes Easy Access Touch Safe Fuses.
- Timed Dose Control Option Available or Can Be Easily Retrofitted in the Field.
Specifications
Specifications
CSI Controls RK Series Single Phase Simplex Pump Control Panel Specifications
- VOLTAGE SUPPLY: Pumps: 115 VAC or 230 VAC 50/60Hz 1Ø
Control/Alarm: 115 VAC 60Hz 1Ø - ENCLOSURE: 12x10x6 inch (30.5x25.4x15.2cm)
NEMA 4X Ultraviolet Stabilized Thermoplastic Rated for Indoor/Outdoor use with Mounting Feet - INNER DOOR: Molded Thermoplastic
- LOCKING LATCHES (2): Stainless Steel, Padlockable
- FLOAT CONTROL VOLTAGE: 115 VAC
- MOTOR STARTERS: Magnetic Motor Contactor
- PUMP AMPS: 0-12 Amps, 12-18 Amps, 18-24 Amps
- ALARM HORN: 83-85 Decibel Rating
- FLASHING RED LED ALARM LIGHT 360°
CSI Controls RK Series Single Phase Simplex Pump Control Panel Models & Options
| RK SERIES SINGLE PHASE SIMPLEX CONTROL PANEL MODELS & OPTIONS | |||||
| MODEL | MAX FLA | ENCLOSURE TYPE | INPUT POWER VOLTS/PHASE | CIRCUIT BREAKERS | |
| RKSF115CB | 12 | NEMA 4X | 115/1 | MOTOR & ALARM | |
| RKSF115ACB | 12 | NEMA 4X | 115/1 | MOTOR, CONTROL & ALARM | |
| RKSF230CB | 12 | NEMA 4X | 230/1 | MOTOR & ALARM | |
| RKSF230ACB | 12 | NEMA 4X | 230/1 | MOTOR, CONTROL & ALARM | |
| OPTIONS | |||||
| OPTION | DESCRIPTION | ||||
| AMB | AMBER BEACON (RED BEACON IS STANDARD) | ||||
| DC | DIGITAL DISPLAY CENTER (DDC) 4 CHARACTER LED | ||||
| DCTD | TIME DOSING DDC 4-CHARACTER LED | ||||
| FC20 | INCLUDES (4) 20 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC20CW | INCLUDES (4) 20 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR20 | INCLUDES (4) 20 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR20CW | INCLUDES (4) 20 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FC30 | INCLUDES (4) 30 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC30CW | INCLUDES (4) 30 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR30 | INCLUDES (4) 30 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR30CW | INCLUDES (4) 30 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FC50 | INCLUDES (4) 50 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC50CW | INCLUDES (4) 50 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR50 | INCLUDES (4) 50 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR50CW | INCLUDES (4) 50 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| GR | GRAY ENCLOSURE (BLACK ENCLOSURE IS STANDARD) | ||||
| HD1 | HEAVY DUTY 1: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 12-18 FLA | ||||
| HD2 | HEAVY DUTY 2: INCREASES BREAKERS & WIRE GAUGE TO ALLOW 18-24 FLA | ||||
| HS | HEAT SENSOR TERMINALS | ||||
| HTR | ANTI-CONDENSATION HEATER | ||||
| IB | DIGITAL INTERFACE BOARD (DIB) 32-CHARACTER LCD | ||||
| IBTD | TIME DOSING (DIB) 32-CHARACTER LCD | ||||
| LA | LIGHTNING ARRESTOR | ||||
| OL## | PUMP OVERLOAD - SPECIFY AMPERAGE AFTER OL(Example: OL02=2 amp pump) | ||||
| SF | SEAL FAILURE INDICATOR LIGHT | ||||
| X | AUXILIARY ALARM & REDUNDANT OFF CIRCUITARY (control switch not included) | ||||
| EXAMPLE: RKSF115CB-FC20-HD | |||||
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
CSI Control RK Series Single Phase Simplex Pump Control Panel Resources
CSI Controls RK Series Single Phase Simplex Pump Control Panel Specifications
CSI Controls RK Series Single Phase Simplex Pump Control Panel Users Manual
