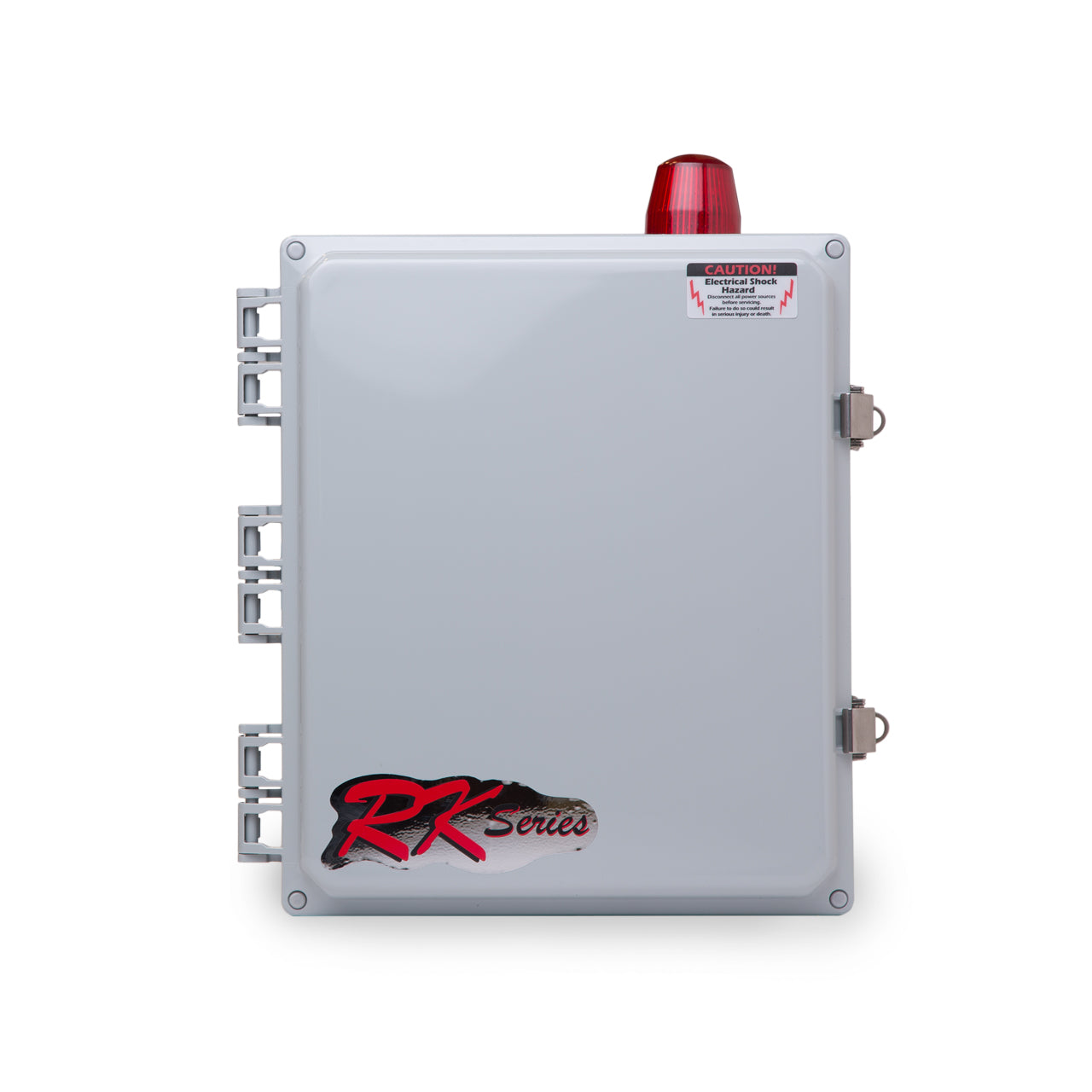

CSI Controls RKDF230CB RK Duplex Pump Panel 230V
CSI Controls RKDF230CB RK Duplex Pump Panel 230V
SKU : CSIRKDF230CB
In Stock Quantity:0
:
Brand
:
Regular price
$1,176.36 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
CSI Controls RK Series Pump Control Panels
RK Series™ control panels offer a unique approach to pump control through a revolutionary NEMA 4X panel design incorporating common features onto the exclusive circuit board, sub-door and raised back-panel.

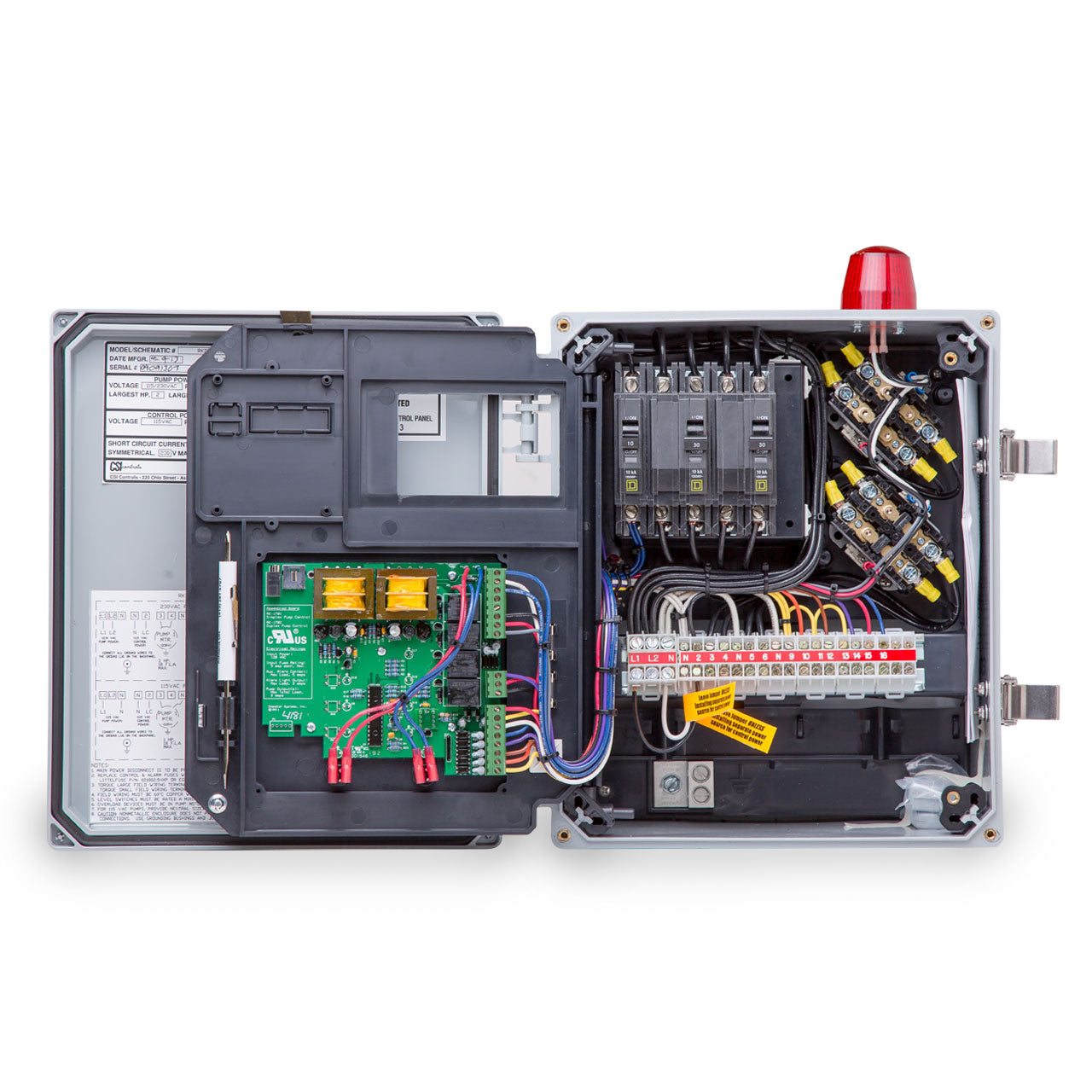

The RK Series™ control panels have increased user safety through the use of a non-conductive molded polycarbonate inner sub-door, which provides considerable space savings and convenient operator controls while isolating the user from energized components. The sub-door control center includes LED indicators for control and alarm circuit power, float status (high level, lag pump on, lead pump on, pumps off), alarm, pump run, push buttons for test/silence and hand run. The RK Series™ offers optional digital displays for viewing system information. RK Series™ control panels are available in Simplex and Duplex models for demand dose and timed dose applications. UL/cUL Listed.
Specifications
Specifications
CSI Controls RK Series Single Phase Duplex Control Panel Specifications
- VOLTAGE SUPPLY: Pumps: 115 VAC or 230 VAC 50/60Hz 1Ø
Control/Alarm: 115 VAC 60Hz 1Ø - ENCLOSURE: 12x10x6 inch (30.5x25.4x15.2cm)
NEMA 4X Ultraviolet Stabilized Thermoplastic Rated for Indoor/Outdoor use with Mounting Feet - INNER DOOR: Molded Thermoplastic
- LOCKING LATCHES (2): Stainless Steel, Padlockable
- FLOAT CONTROL VOLTAGE: 115 VAC
- MOTOR STARTERS: Magnetic Motor Contactor
- PUMP AMPS: 0-12 Amps, 12-18 Amps, 18-24 Amps
- ALARM HORN: 83-85 Decibel Rating
- FLASHING RED LED ALARM LIGHT 360°
CSI Controls RK Series Single Phase Duplex Control Panel Models & Options
| RK SERIES SINGLE PHASE DUPLEX CONTROL PANEL MODELS & OPTIONS | |||||
| MODEL | MAX FLA | ENCLOSURE TYPE | INPUT POWER VOLTS/PHASE | CIRCUIT BREAKERS | |
| RKDF115CB | 12 | NEMA 4X | 115/1 | MOTOR & ALARM | |
| RKDF115ACB | 12 | NEMA 4X | 115/1 | MOTOR, CONTROL & ALARM | |
| RKDF230CB | 12 | NEMA 4X | 230/1 | MOTOR & ALARM | |
| RKDF230ACB | 12 | NEMA 4X | 230/1 | MOTOR, CONTROL & ALARM | |
| OPTIONS | |||||
| OPTION | DESCRIPTION | ||||
| AMB | AMBER BEACON (RED BEACON IS STANDARD) | ||||
| DC | DIGITAL DISPLAY CENTER (DDC) 4 CHARACTER LED | ||||
| DCTD | TIME DOSING DDC 4-CHARACTER LED | ||||
| FC20 | INCLUDES (4) 20 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC20CW | INCLUDES (4) 20 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR20 | INCLUDES (4) 20 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR20CW | INCLUDES (4) 20 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FC30 | INCLUDES (4) 30 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC30CW | INCLUDES (4) 30 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR30 | INCLUDES (4) 30 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR30CW | INCLUDES (4) 30 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FC50 | INCLUDES (4) 50 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC50CW | INCLUDES (4) 50 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR50 | INCLUDES (4) 50 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR50CW | INCLUDES (4) 50 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| GR | GRAY ENCLOSURE (BLACK ENCLOSURE IS STANDARD) | ||||
| HD1 | HEAVY DUTY 1: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 12-18 FLA | ||||
| HD2 | HEAVY DUTY 2: INCREASES BREAKERS & WIRE GAUGE TO ALLOW 18-24 FLA | ||||
| HS | HEAT SENSOR TERMINALS | ||||
| HTR | ANTI-CONDENSATION HEATER | ||||
| IB | DIGITAL INTERFACE BOARD (DIB) 32-CHARACTER LCD | ||||
| IBTD | TIME DOSING (DIB) 32-CHARACTER LCD | ||||
| LA | LIGHTNING ARRESTOR | ||||
| OL## | PUMP OVERLOAD - SPECIFY AMPERAGE AFTER OL(Example: OL02=2 amp pump) | ||||
| SF | SEAL FAILURE INDICATOR LIGHT | ||||
| X | AUXILIARY ALARM & REDUNDANT OFF CIRCUITARY (control switch not included) | ||||
| EXAMPLE: RKDF115CB-FC20-HD | |||||
