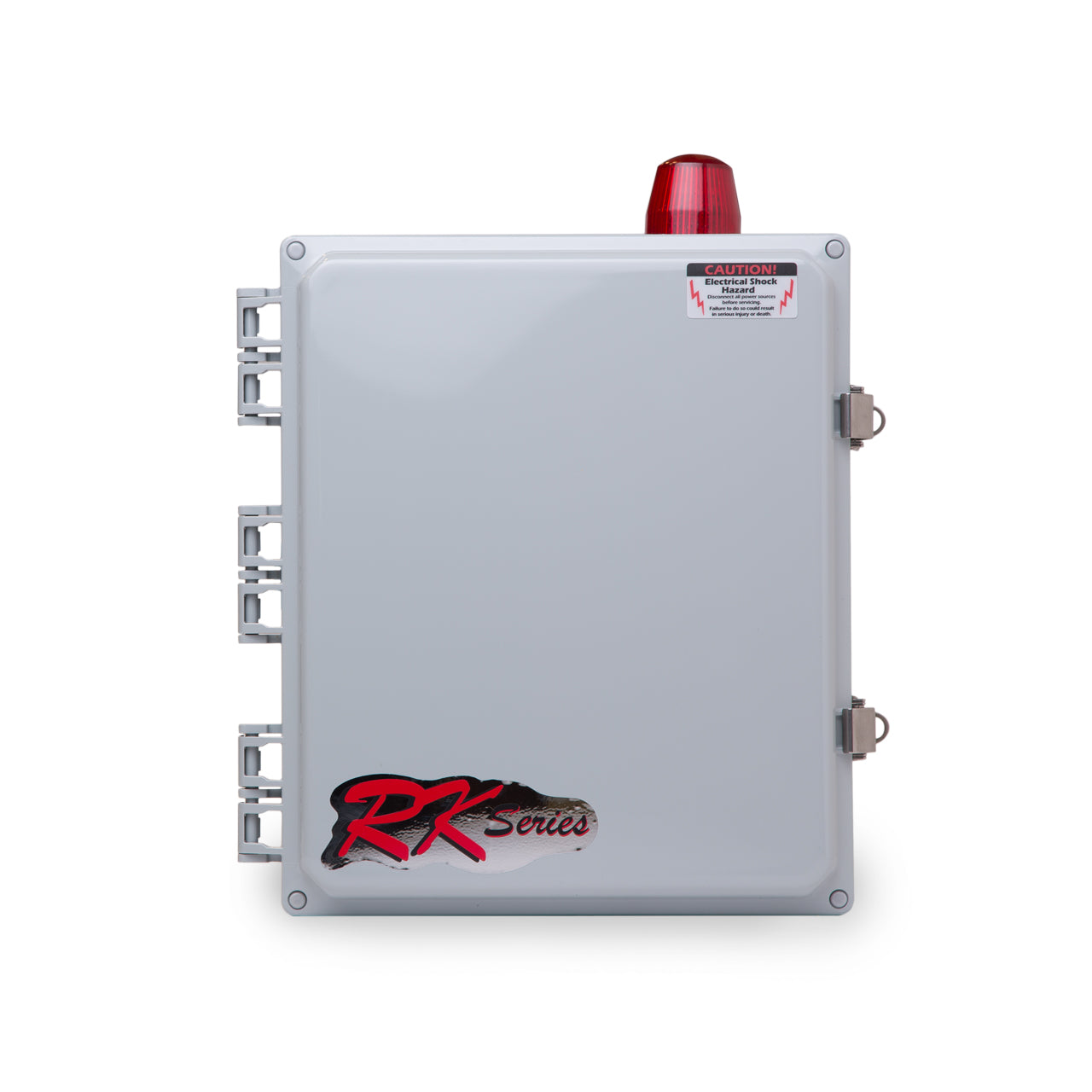

CSI Controls RKDF230ACB-GR-X-DC RK Duplex Pump Panel 230V Gray Aux Alarm RO Digital Display
CSI Controls RKDF230ACB-GR-X-DC RK Duplex Pump Panel 230V Gray Aux Alarm RO Digital Display
SKU : CSIRKDF230ACB-GR-X-DC
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Control Panels
CSI Controls RK Series Pump Control Panels

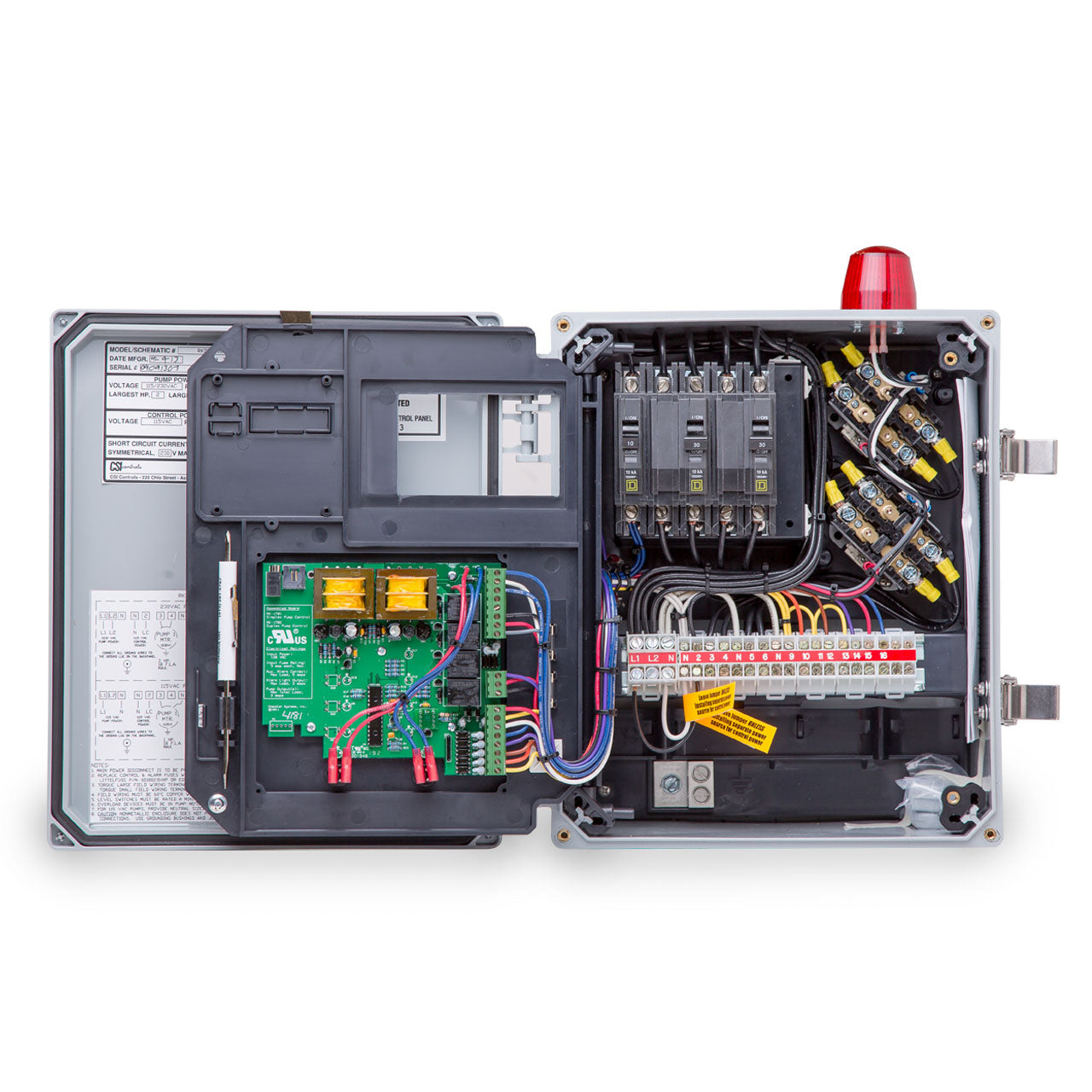

RK Series™ control panels offer a unique approach to pump control through a revolutionary NEMA 4X panel design incorporating common features onto the exclusive circuit board, sub-door and raised back-panel.

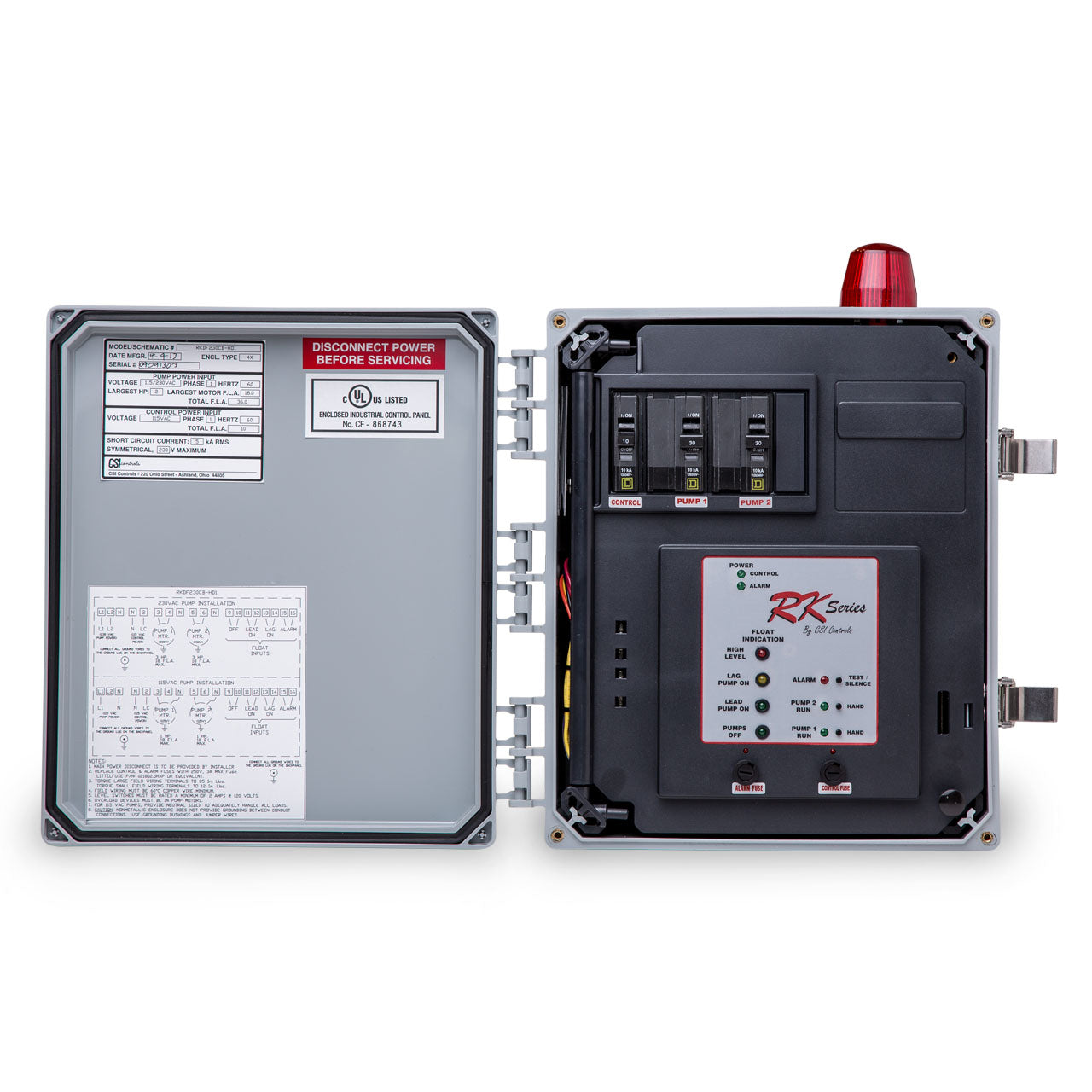

The RK Series™ control panels have increased user safety through the use of a non-conductive molded polycarbonate inner sub-door, which provides considerable space savings and convenient operator controls while isolating the user from energized components. The sub-door control center includes LED indicators for control and alarm circuit power, float status (high level, lag pump on, lead pump on, pumps off), alarm, pump run, push buttons for test/silence and hand run. The RK Series™ offers optional digital displays for viewing system information. RK Series™ control panels are available in Simplex and Duplex models for demand dose and timed dose applications. UL/cUL Listed.
Specifications
Specifications
CSI Controls RK Series Pump Control Panel Features
- Red Flashing Alarm Beacon and Horn with Variable Flashing Modes to Indicate Specific Alarm Faults
- Separate Control and Alarm Fuses
- Lockable Hasps
- Raised Terminal Strip for Easier Installations
- Sub-Door Control Center:
- LED Indicators for Control and Alarm Circuit Power
- Pump Run Indicator Light
- Float Status High Level, Lag Pump On, Lead Pump On, Pumps Off
- External Touch to Silence/Touch Twice to Test Pad
- Push to Run Hand Button
- Options:
- Float Control Switches with 20 Foot Cords
- Auxiliary Alarm
- Redundant Off
- 12, 18 or 24 FLA
- 4 Character LED Digital Display
- 2-Line 16-Character LCD Digital Display
- Timed Dosing
CSI Controls RK Series Duplex Float Activated Pump Panel Models & Options
|
RK DUPLEX FLOAT ACTIVATED PUMP CONTROL PANEL MODELS & OPTIONS |
|||||
|
MODEL |
MAX FLA |
ENCLOSURE TYPE |
INPUT POWER VOLTS/PHASE |
CIRCUIT BREAKERS |
|
|
RKDF115 |
12 |
NEMA 4X |
115/1 |
NONE |
|
|
RKDF115CB |
12 |
NEMA 4X |
115/1 |
MOTOR & ALARM |
|
|
RKDF115ACB |
12 |
NEMA 4X |
115/1 |
MOTOR, CONTROL & ALARM |
|
|
RKDF230 |
12 |
NEMA 4X |
230/1 |
NONE |
|
|
RKDF230CB |
12 |
NEMA 4X |
230/1 |
MOTOR & ALARM |
|
|
RKDF230ACB |
12 |
NEMA 4X |
230/1 |
MOTOR, CONTROL & ALARM |
|
|
OPTIONS |
|||||
|
OPTION |
DESCRIPTION |
||||
|
F |
INCLUDES (4) 20 FOOT MECHANICAL FLOAT CONTROL SWITCHES |
||||
|
GR |
GREY ENCLOSURE (BLACK ENCLOSURE IS STANDARD) |
||||
|
X |
AUXILIARY ALARM & REDUNDANT OFF |
||||
|
HD1 |
HEAVY DUTY 1: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 12-18 FLA |
||||
|
HD2 |
HEAVY DUTY 2: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 18-24 FLA |
||||
|
DC |
DIGITAL DISPLAY CENTER (DDC) HAS A 4 CHARACTER LED DISPLAY SCREEN |
||||
|
DCTD |
DIGITAL DISPLAY CENTER (DDC) WITH TIME DOSING PROGRAM |
||||
|
IB |
DIGITAL INTERFACE BOARD (DIB) WITH A TWO LINE, 16 CHARACTER DISPLAY SCREEN |
||||
|
IBTD |
DIGITAL INTERFACE BOARD (DIB) WITH TIME DOSING PROGRAM |
||||
|
EXAMPLE: RKDF115CB-F-HD |
|||||
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
CSI Control RK Series Pump Control Panel Resources
CSI Controls RK Series Brochure
