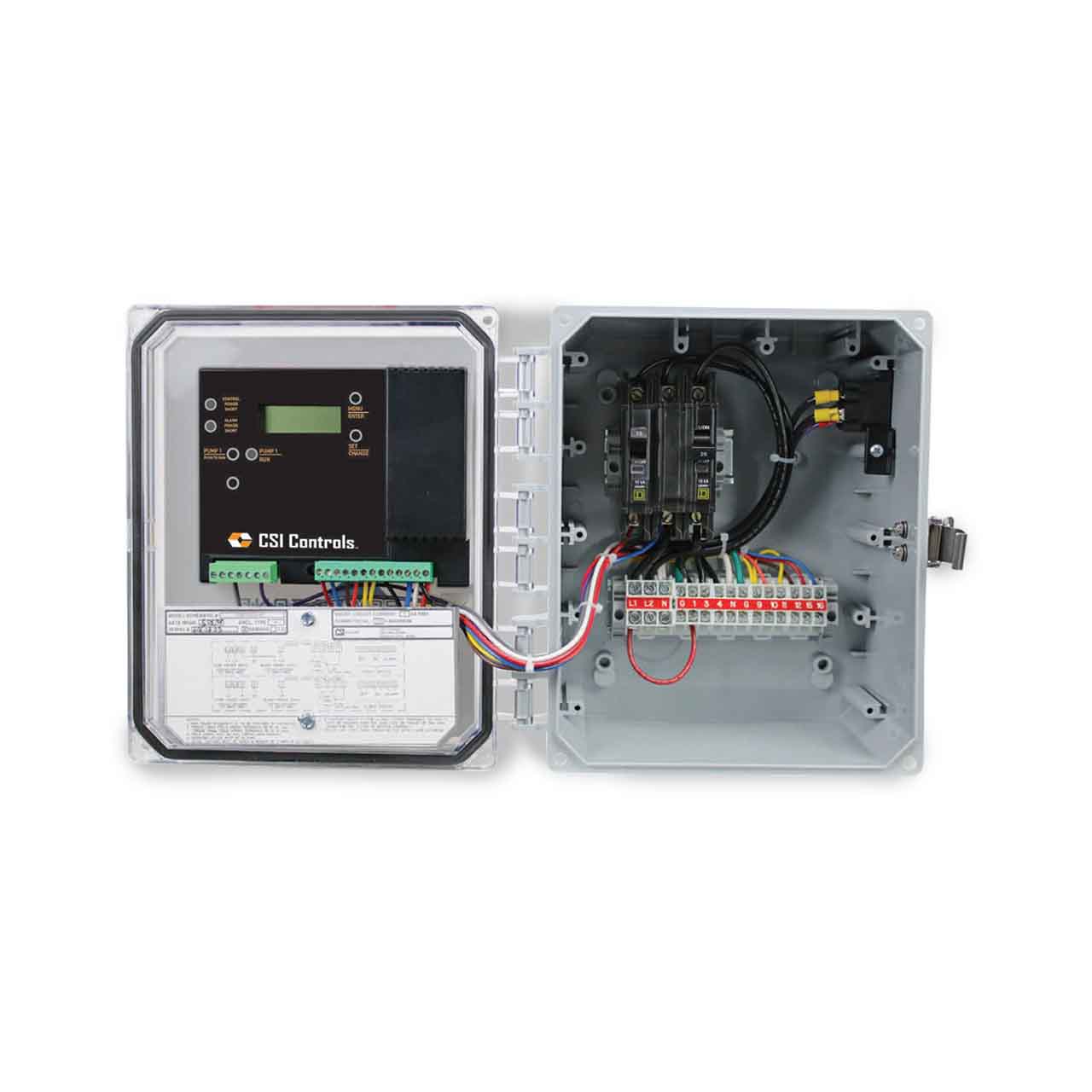

CSI Controls PZSF230 Power Zone Single Phase Simplex Control Panel
CSI Controls PZSF230 Power Zone Single Phase Simplex Control Panel
SKU : CP-CSIPZSF230
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
CSI Controls Power Zone Single Phase Simplex Control Panel Description
Single Phase Simplex Demand or Time Dose Controlled System for Pump Control and System Monitoring
The Power Zone™ Single Phase Simplex panel is designed to control one 115/230V single phase pump in water and sewage installations. The easy to read LCD display provides for simple menu navigation, site setup, and access to critical alarm events, pump run times, and pump cycle counts.
Power Zone control panels are now more versatile than ever! In addition to our float-based models, we have no added the option of continuous level sensing with the new CS-20 level transmitter. The CS4-20 Level transmitter uses a standard 4-20mA signal to provide continuous level monitoring in level control applications. The transmitter wetted components are designed with non-conductive materials to provide an electrical isolation barrier. It features 22/2 shielded cable with vent tube and is reverse polarity protected.
CSI Controls Power Zone Single Phase Simplex Control Panel Features
- Float or 4-20mA Continuous Level Sensing Models
- 4-20mA Model Provides Inputs for Two Float Backup
- Digital Backlit LCD for Easy Setup and System Monitoring
- Zero Cross over Sensing for Extended Motor Relay Life
- Exterior Touch Sensor for Alarm Silence and Test
- Five-Year Limited Warranty on Panel
- Two-Year Limited Warranty on 4-20mA Transmitters
- UL Listed
Specifications
Specifications
CSI Controls Power Zone Single Phase Simplex Control Panel Specifications
- VOLTAGE SUPPLY: Pump: 115 VAC or 230 VAC 50/60Hz 1Ø
Control/Alarm: 115 VAC 60Hz 1Ø - ENCLOSURE: 10x8x6" (25.4x20.3x15.2cm)
NEMA 4X Ultraviolet Stabilized Thermoplastic Rated for Indoor/Outdoor Use - INNER DOOR: Molded Thermoplastic
- LOCKING LATCH: Stainless Steel, Padlockable
- FLOAT CONTROL VOLTAGE: 115 VAC
- MOTOR STARTER: Solid State Power Relay
- PUMP AMPS: 0-16 Amps, 16-20 Amps
- ALARM HORN: 83-85 Decibel Rating
- FLASHING RED LED ALARM LIGHT
CSI Controls Power Zone Single Phase Simplex Control Panel Models & Options
| POWER ZONE SINGLE PHASE SIMPLEX CONTROL PANEL MODELS & OPTIONS | |||||
| MODEL | MAX FLA | ENCLOSURE TYPE | INPUT POWER VOLTS/PHASE | CIRCUIT BREAKERS | |
| PZSF115CB | 16 | NEMA 4X | 115/1 | MOTOR & ALARM | |
| PZSF115ACB | 16 | NEMA 4X | 115/1 | MOTOR, CONTROL & ALARM | |
| PZSF230CB | 16 | NEMA 4X | 230/1 | MOTOR & ALARM | |
| PZSF230ACB | 16 | NEMA 4X | 230/1 | MOTOR, CONTROL & ALARM | |
| OPTIONS | |||||
| OPTION | DESCRIPTION | ||||
| FC20 | INCLUDES (4) 20 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC20CW | INCLUDES (4) 20 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR20 | INCLUDES (4) 20 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR20CW | INCLUDES (4) 20 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FC30 | INCLUDES (4) 30 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC30CW | INCLUDES (4) 30 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR30 | INCLUDES (4) 30 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR30CW | INCLUDES (4) 30 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FC50 | INCLUDES (4) 50 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FC50CW | INCLUDES (4) 50 FOOT MECHANICAL FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| FR50 | INCLUDES (4) 50 FOOT MERCURY FLOAT CONTROL SWITCHES/ PIPE CLAMP | ||||
| FR50CW | INCLUDES (4) 50 FOOT MERCURY FLOAT CONTROL SWITCHES/ CABLE WEIGHT | ||||
| X | AUXILIARY ALARM & REDUNDANT OFF | ||||
| HD | HEAVY DUTY - INCREASES BREAKERS AND WIRE GAUGE TO ALLOW 16-20 FLA | ||||
| PED | INCLUDES POLY PEDESTAL WITH ACCESS DOOR | ||||
| EXAMPLE: PZSF115CB-FC20-HD | |||||
