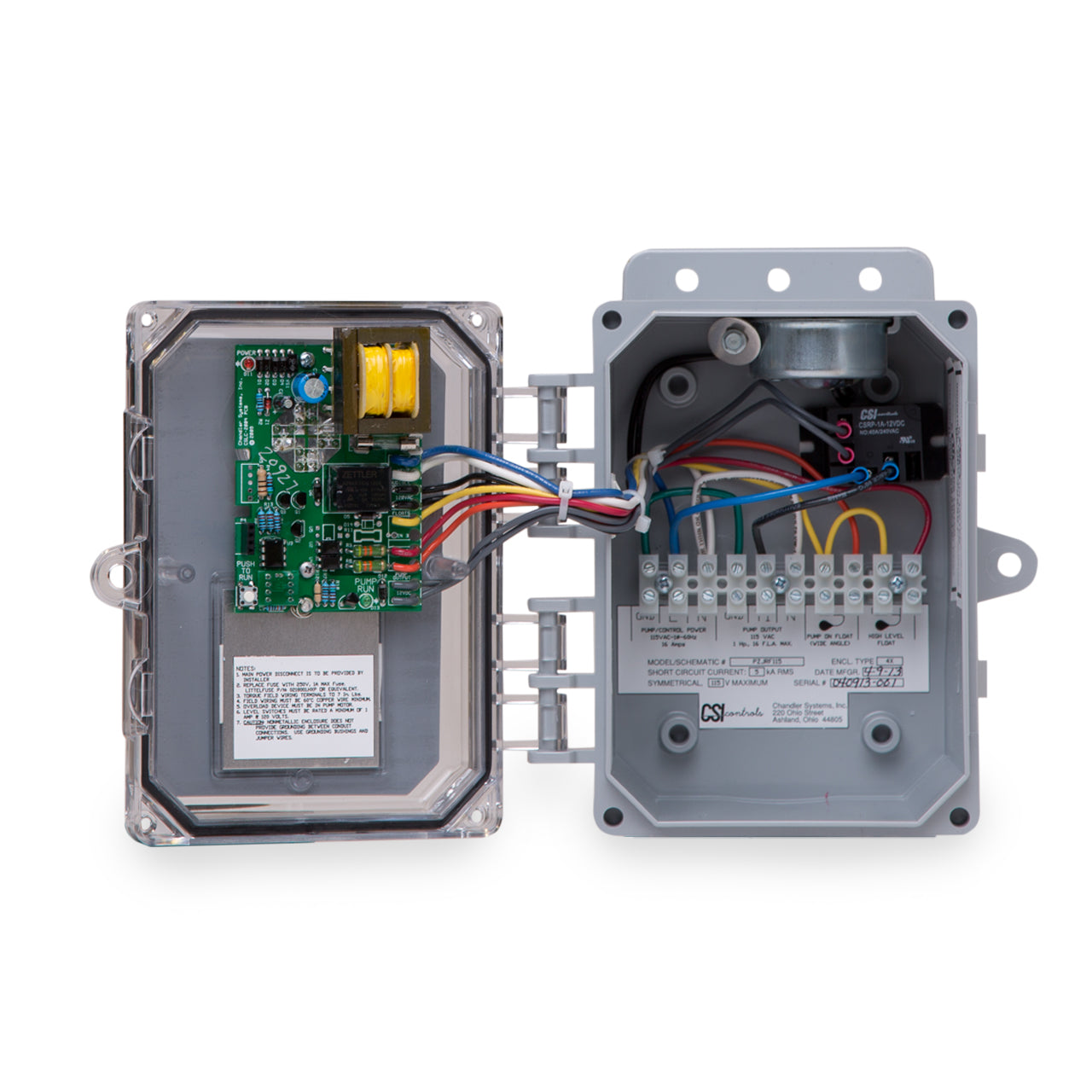

CSI Controls PZJRF230-FC15 Power Zone Jr. Simplex Pump Panel 230V Floats
CSI Controls PZJRF230-FC15 Power Zone Jr. Simplex Pump Panel 230V Floats
SKU : CSIPZJRF230-FC15
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Power Zone Control Panels
CSI Controls Power Zone Jr. Pump Control Panels

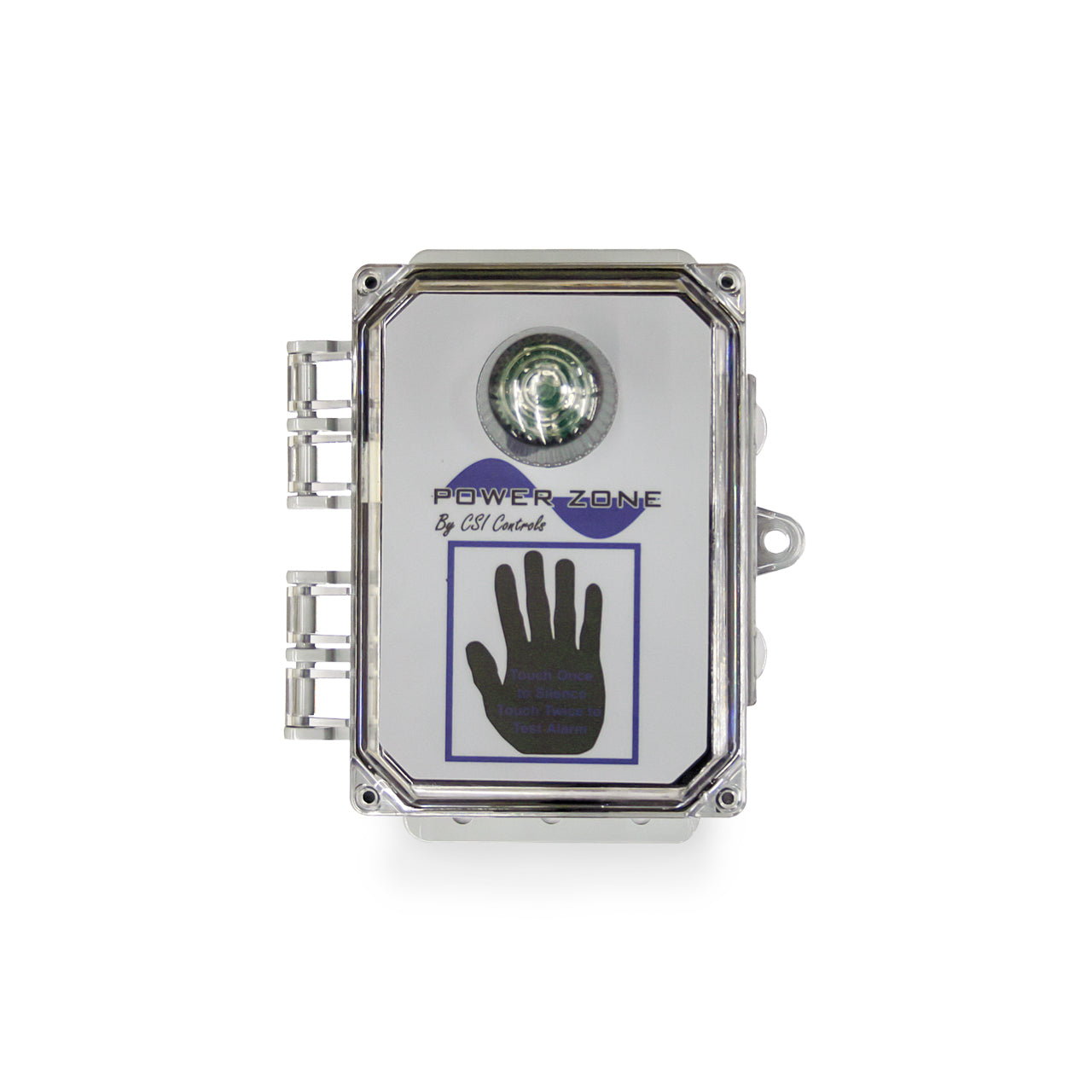

PowerZone Jr. NEMA 4X control panels utilize "zero crossing" technology to maximize relay life by increasing load capability of the relay. Power Zone™panels feature an exclusive front mounted touch pad with exterior LED lights for easy operation. UL/cUL Listed.
The PZJRF230-FC15 Replaces the PZJRF230-F
Specifications
Specifications
CSI Controls Power Zone Jr. Pump Control Panel Features
- CSI Zero Crossing Relay Technology
- Flashing Red Alarm with LED Lights
- Exterior Touch to Silence/Touch Twice to Test Circuitry
- Internal Power Indicator Light
- Internal Hand Run Button with Latching Feature
- Internal Pump Run Indicator Light
- No Holes Drilled or Cut for Lights, Audible Alarm, or Silence Devices
- Field Wiring Terminal Strip
- Lockable Hasp
CSI Controls Power Zone Jr. Simplex Float Activated Pump Panel Models & Options
|
POWER ZONE JR. SIMPLEX FLOAT ACTIVATED PUMP CONTROL PANEL MODELS & OPTIONS |
|||||
|
MODEL |
MAX FLA |
ENCLOSURE TYPE |
INPUT POWER VOLTS/PHASE |
CIRCUIT BREAKERS |
|
|
PZJRF115 |
16 |
NEMA 4X |
115/1 |
NONE |
|
|
PZJRF230 |
16 |
NEMA 4X |
230/1 |
NONE |
|
|
OPTIONS |
|||||
|
OPTION |
OPTION DESCRIPTION |
||||
|
FC15 |
INCLUDES (1) 15’ PUMP FLOAT SWITCH AND (1) 15’ ALARM FLOAT SWITCH |
||||
|
HO |
INCLUDES A 2” HUB TO MOUNT ENCLOSURE ON A 2” CONDUIT AND AN OUTLET THAT ALLOWS FOR PLUG-IN INSTALLATION OF PUMP (115V ONLY – 15 AMP MAX) |
||||
|
D |
DUAL POWER – SEPARATE INCOMING PUMP & CONTROL POWER CIRCUITS |
||||
|
EXAMPLE: PZJRF115-FC15-HO |
|||||
