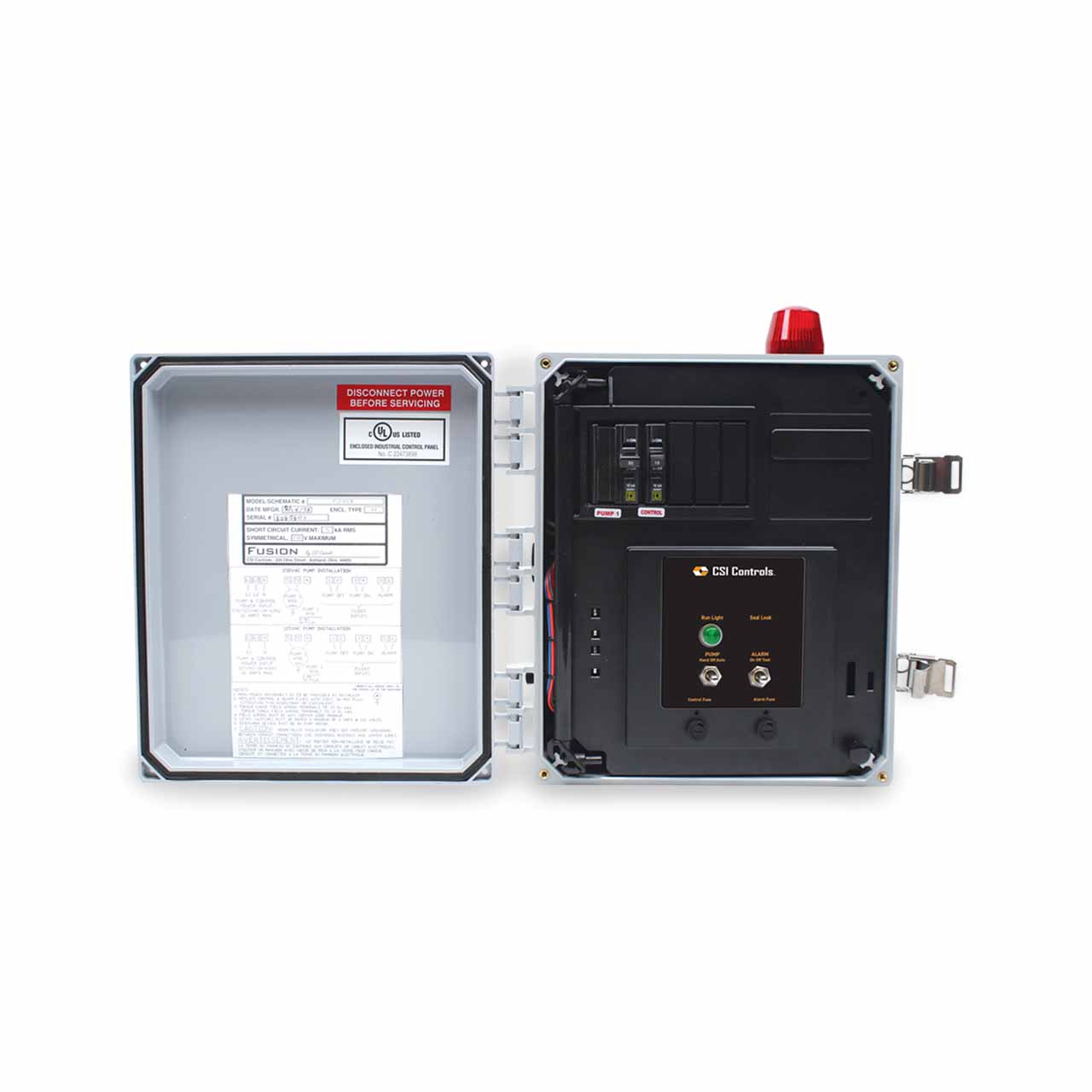

CSI Controls FS230 Fusion Single Phase Simplex Control Panel
CSI Controls FS230 Fusion Single Phase Simplex Control Panel
SKU : CP-CSIFS230
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
CSI Controls Fusion Single Phase Simplex Pump Control Panel Description
Single Phase, Simplex Demand Dose or Timed Dose Float Controlled System for Pumping Applications
The Fusion™ Single Phase Simplex control panels utilize a traditional relay logic component-style design. Applications include sump and sewage basins, septic tanks, aeration systems, cisterns, atmospheric storage tanks, chemical solution tanks and more.
CSI Controls Fusion Single Phase Simplex Pump Control Panel Features
- NEMA 4X Engineered Thermal Plastic Enclosure with Mounting Feet and Lockable Latches
- Flashing Red 360° Alarm Beacon with an Electronic Horn, and Test/Silence Switch
- Pump Hand-Off-Auto Switch to Manually Activate Pump, set in Automatic Float Level Control, or Disable the Pump Operation
- Pump Run Light to Provide Visual Notification when the Pump is Called to Run
- Includes Easy Access Removable Fuses
- Timed Dose Control Option Available
- UL/cUL Listed
Specifications
Specifications
CSI Controls Fusion Single Phase Simplex Pump Control Panel Specifications
- NEMA 4X Enclosure Rated for Indoor or Outdoor Use
- Lockable Latches for Added Safety
- 360° Red Alarm Beacon for Visual Alert
- IEC Motor Contactor Controls the Pump Motor Load by Switching the Electrical Lines
- Circuit Breakers Provide Pump and Control/Alarm Disconnect and Branch Circuit Protection
- Terminal Strip Easy Field Wiiring of Incoming Power, Floats, and Pump
- Ground Lugs
- Molded Inner Door Protects from High Voltage, and Mounting Location for Indicators, and Switches
- Control Circuit and Alarm Circuit Fuses Easy Access Touch Safe Fuse Replacement
- Alarm Arm-Off-Test to Disable or Test the Alarm
- Alarm Flasher Provides Alarm Flashing Circuitry
- Green Pump Run Light Provides Indication when Pump is Called to Run
- Pump Hand-Off-Auto Switch Provides Manual Pump Control
- External Alarm Silence Button to Silence the Audible Alarm
CSI Controls Fusion Single Phase Simplex Pump Control Panel Models & Options
| FUSION SINGLE PHASE SIMPLEX PUMP CONTROL PANEL MODELS & OPTIONS | |||||
| MODEL | MAX FLA | ENCLOSURE TYPE | INPUT POWER VOLTS/PHASE | CIRCUIT BREAKERS | |
| FS115CB | 12 | NEMA 4X | 115/1 | MOTOR & CONTROL | |
| FS115ACB | 12 | NEMA 4X | 115/1 | MOTOR, CONTROL & ALARM | |
| FS230CB | 12 | NEMA 4X | 230/1 | MOTOR & CONTROL | |
| FS230ACB | 12 | NEMA 4X | 230/1 | MOTOR, CONTROL & ALARM | |
| OPTIONS | |||||
| OPTION | OPTION DESCRIPTION | ||||
| AMB | AMBER BEACON (RED BEACON IS STANDARD) | ||||
| AR | MANUAL ALARM RESET | ||||
| FC20 | INCLUDES (3) 20 FOOT MECHANICAL CONTROL SWITCHES | ||||
| FR20 | INCLUDES (3) 20 FOOT MERCURY CONTROL SWITCHES | ||||
| FC30 | INCLUDES (3) 30 FOOT MECHANICAL CONTROL SWITCHES | ||||
| FR30 | INCLUDES (3) 30 FOOT MERCURY CONTROL SWITCHES | ||||
| FC50 | INCLUDES (3) 50 FOOT MECHANICAL CONTROL SWITCHES | ||||
| FR50 | INCLUDES (3) 50 FOOT MERCURY CONTROL SWITCHES | ||||
| HD1 | HEAVY DUTY 1: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 12-18 FLA | ||||
| HD2 | HEAVY DUTY 2: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 18-24 FLA | ||||
| HS | HEAT SENSOR TERMINALS | ||||
| HTR | ANTI-CONDENSATION HEATER | ||||
| LA | LIGHTNING ARRESTOR | ||||
| LL | LOW LEVEL ALARM (CONTROL SWITCH NOT INCLUDED) | ||||
| OL | PUMP OVERLOAD - SPECIFY AMPERAGE AFTER OL (Example: OL02=20 Amp Pump) | ||||
| SF | SEAL FAILURE LIGHT INDICATOR | ||||
| TD | TIME DOSING OPERATION | ||||
| X | AUXILIARY ALARM CONTACTS | ||||
| EXAMPLE: FS115-FC20-HD2 | |||||
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
CSI Control Fusion Single Phase Simplex Pump Control Panel Resources
CSI Controls Fusion Single Phase Simplex Pump Control Panel Catalog Page
CSI Controls Fusion Single Phase Simplex Pump Control Panel Users Manual
