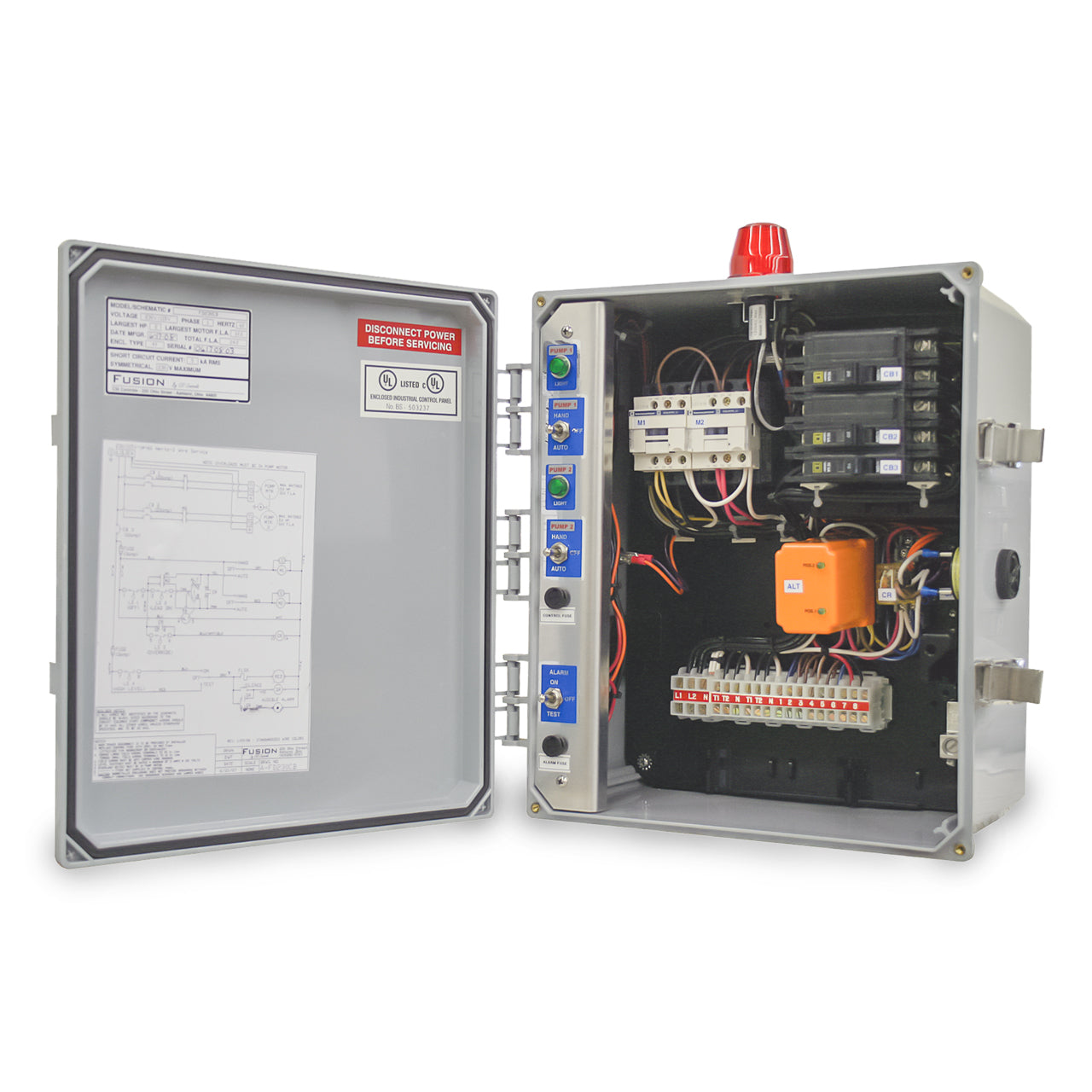

CSI Controls FD230CB-FC20-X Fusion Duplex Pump Panel 230V Floats Aux Alarm 12FLA
CSI Controls FD230CB-FC20-X Fusion Duplex Pump Panel 230V Floats Aux Alarm 12FLA
SKU : CSIFD230CB-FC20-X
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Fusion Control Panels

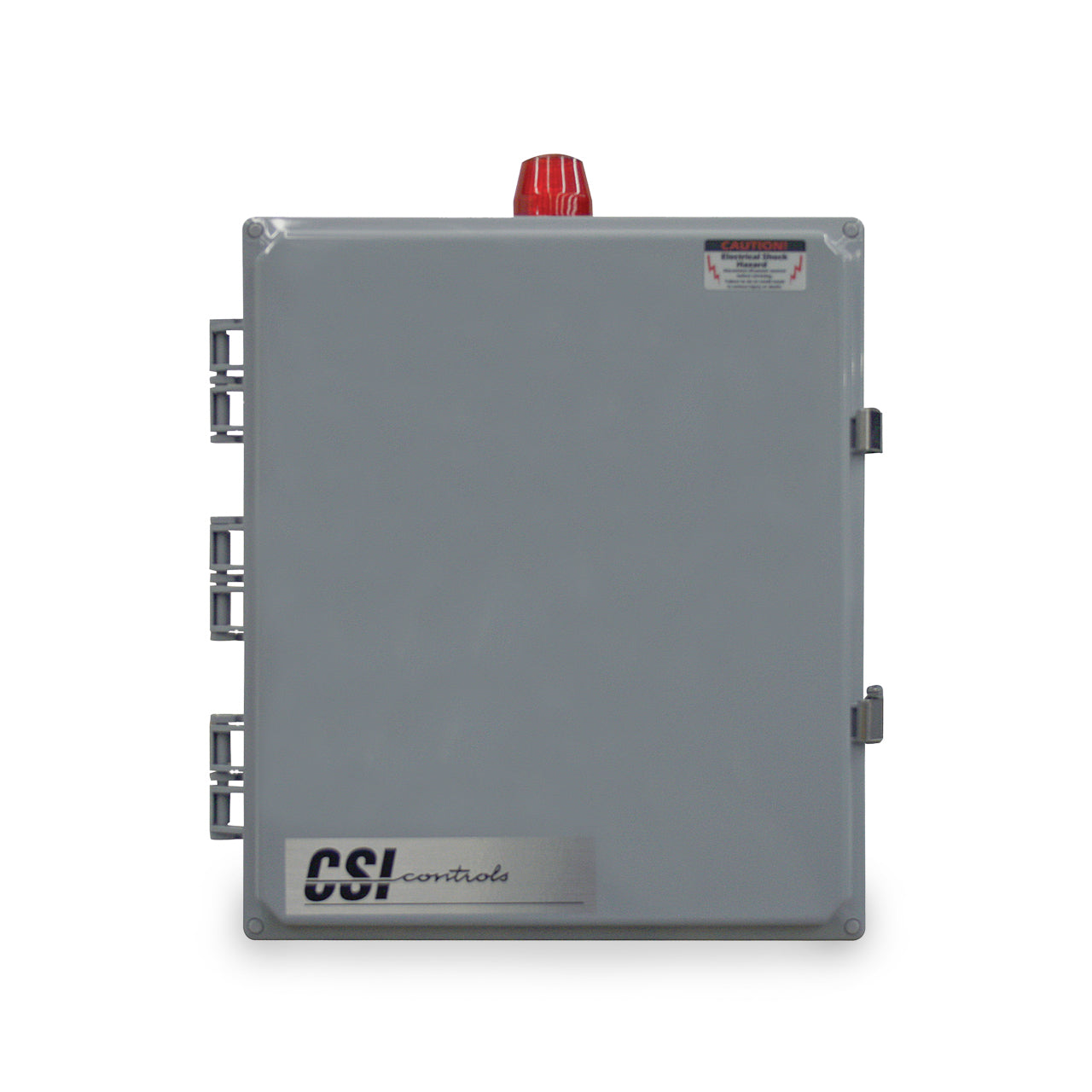

CSI Controls Fusion Duplex Pump Control Panels
Fusion™ control panels package traditional component-style design into a NEMA 4X polycarbonate enclosure. Applications include sump and sewage basins, septic tanks, aeration systems, cisterns, atmospheric storage tanks, chemical solution tanks and more. FUSION™ control panels are available in Simplex and Duplex models for demand dose applications. UL/cUL Listed.
The FD230CB-FC20-X Replaces the FD230CB-F-X
Specifications
Specifications
CSI Controls Fusion Duplex Pump Control Panel Features
- Utilizes User-Friendly Molded Components
- NEMA4X Weatherproof Enclosure for Indoor/Outdoor Installations
- Inner Door for Added Safety
- Red Flashing Alarm Beacon and Horn
- Separate Control and Alarm Fuses
- Lockable Hasps
- Pump Run Light
- Hand/Off/Auto Heavy Duty Toggle Switch
- Alarm On/Off/Test Heavy Duty Toggle Switch
- Raised Field Wiring Terminal Strip for Easier Installations
- Pump and Alarm/Control Circuit Breakers
- UL/cUL Listed
CSI Controls Fusion Duplex Float Activated Pump Panel Models & Options
|
FUSION DUPLEX FLOAT ACTIVATED PUMP CONTROL PANEL MODELS & OPTIONS |
|||||
|
MODEL |
MAX FLA |
ENCLOSURE TYPE |
INPUT POWER VOLTS/PHASE |
CIRCUIT BREAKERS |
|
|
FD115 |
12 |
NEMA 4X |
115/1 |
NONE |
|
|
FD115CB |
12 |
NEMA 4X |
115/1 |
MOTOR & CONTROL |
|
|
FD115ACB |
12 |
NEMA 4X |
115/1 |
MOTOR, CONTROL & ALARM |
|
|
FD230 |
12 |
NEMA 4X |
230/1 |
NONE |
|
|
FD230CB |
12 |
NEMA 4X |
230/1 |
MOTOR & CONTROL |
|
|
FD230ACB |
12 |
NEMA 4X |
230/1 |
MOTOR, CONTROL & ALARM |
|
|
OPTIONS |
|||||
|
OPTION |
OPTION DESCRIPTION |
||||
|
AMB |
AMBER BEACON (Red Beacon is Standard) |
||||
|
AR |
MANUAL ALARM RESET |
||||
|
EC |
ELAPSED TIME METER AND CYCLE COUNTER |
||||
|
FC20 |
INCLUDES (4) 20 FOOT MECHANICAL CONTROL SWITCHES |
||||
|
FR20 |
INCLUDES (4) 20 FOOT MECURY CONTROL SWITCHES |
||||
|
FC30 |
INCLUDES (4) 30 FOOT MECHANICAL CONTROL SWITCHES |
||||
|
FR30 |
INCLUDES (4) 30 FOOT MECURY CONTROL SWITCHES |
||||
|
FC50 |
INCLUDES (4) 50 FOOT MECHANICAL CONTROL SWITCHES |
||||
|
FR50 |
INCLUDES (4) 50 FOOT MECURY CONTROL SWITCHES |
||||
|
HD1 |
HEAVY DUTY 1: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 12-18 FLA |
||||
|
HD2 |
HEAVY DUTY 2: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 18-24 FLA |
||||
|
HS |
HEAT SENSOR TERMINALS |
||||
|
HTR |
ANTI-CONDENSATION HEATER |
||||
|
LA |
LIGHTNING ARRESTOR |
||||
|
LL |
LOW LEVEL ALARM (Control Switch not Included) |
||||
|
OL |
PUMP OVERLOAD-SPECIFY AMPERAGE AFTER OL (Example: OL02 = 2 Amp Pump) |
||||
|
SF |
SEAL FAILURE INDICATOR LIGHT |
||||
|
X |
AUXILIARY ALARM CONTACTS |
||||
|
EXAMPLE: FD115-FC20-HD2 |
|||||
