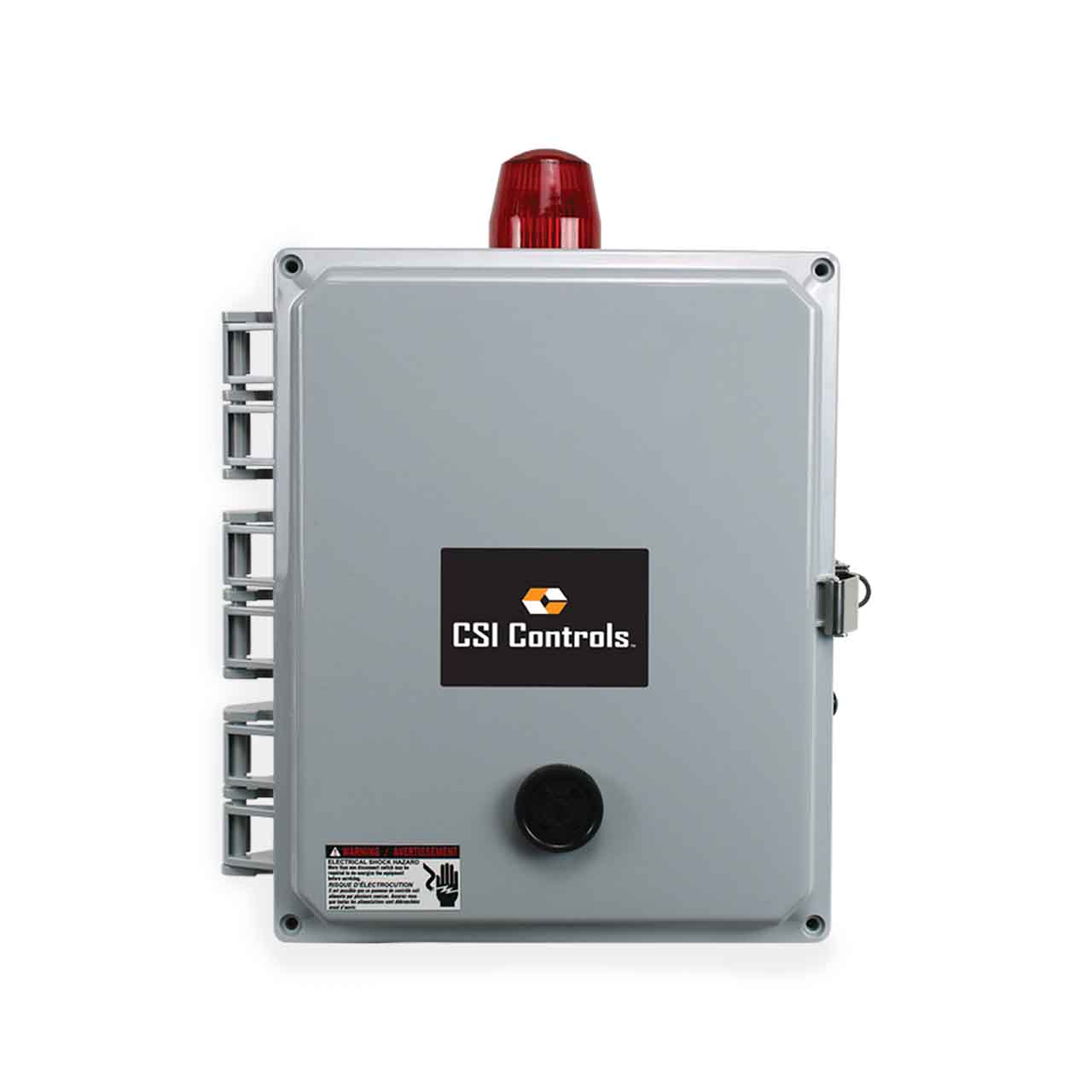

CSI Controls EFS115 Fusion Economy Simplex Pump Control Panel
CSI Controls EFS115 Fusion Economy Simplex Pump Control Panel
SKU : CP-CSIEFS115
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
CSI Controls Fusion Economy Simplex Pump Control Panel Description
Single Phase, Simplex Demand Float Control System for Pumping Applications
The Fusion™ Economy Single Phase Simplex control panels utilize a traditional relay logic component-style design. Applications include sump and sewage basins, septic tanks, aeration systems, cisterns, atmospheric storage tanks, chemical solution tanks and more.
CSI Controls Fusion Economy Simplex Pump Control Panel Features
- NEMA 4X Engineered Thermoplastic Enclosure with Lockable Latch
- Flashing Red 360° Alarm Beacon with Horn and Test/Silence Switch.
- Pump Hand-Off-Auto Switch to Manually Activate Pump, Set in Automatic Float Level Control, or Disable the Pump Operation
- Pump Run Light to Provide Visual Notification When the Pump is Called to Run
- Includes Easy Access Fuses
- UL/cUL Listed
Specifications
Specifications
CSI Controls Fusion Economy Simplex Pump Control Panel Specifications
- VOLTAGE SUPPLY: Pump: 115 VAC or 230 VAC 50/60Hz 1Ø
Control/Alarm: 115 VAC 60Hz 1Ø - ENCLOSURE: 10x8x6 Inch (25.4x20.3x15.2 cm)
NEMA 4X Ultraviolet Stabilized Thermoplastic Rated for Indoor/Outdoor use with Mounting Feet - INNER DOOR: Molded Thermoplastic
- LOCKING LATCH: Stainless Steel, Padlockable
- FLOAT CONTROL VOLTAGE: 115 VAC
- MOTOR STARTER: Magnetic Motor Contactor
- PUMP AMPS: 0-12 Amps, 12-18 Amps, 18-24 Amps
- AlARM HORN: 83-85 Decibel Rating
- FLASHING RED LED ALARM LIGHT 360°
CSI Controls Fusion Economy Simplex Pump Control Panel Models & Options
| FUSION ECONOMY SIMPLEX PUMP CONTROL PANEL MODELS & OPTIONS | |||||
| MODEL | MAX FLA | ENCLOSURE TYPE | INPUT POWER VOLTS/PHASE | CIRCUIT BREAKERS | |
| EFS115 | 12 | NEMA 4X | 115/1 | NONE | |
| EFS115CB | 12 | NEMA 4X | 115/1 | MOTOR & CONTROL | |
| EFS115ACB | 12 | NEMA 4X | 115/1 | MOTOR, CONTROL & ALARM | |
| EFS230 | 12 | NEMA 4X | 230/1 | NONE | |
| EFS230CB | 12 | NEMA 4X | 230/1 | MOTOR & CONTROL | |
| EFS230ACB | 12 | NEMA 4X | 230/1 | MOTOR, CONTROL & ALARM | |
| OPTIONS | |||||
| OPTION | OPTION DESCRIPTION | ||||
| FC20 | INCLUDES (3) 20 FOOT MECHANICAL CONTROL SWITCHES / PIPE CLAMP | ||||
| FC20CW | INCLUDES (3) 20 FOOT MECHANICAL CONTROL SWITCHES / CABLE WEIGHT | ||||
| FR20 | INCLUDES (3) 20 FOOT MERCURY CONTROL SWITCHES / PIPE CLAMP | ||||
| FR20CW | INCLUDES (3) 20 FOOT MERCURY CONTROL SWITCHES / CABLE WEIGHT | ||||
| FC30 | INCLUDES (3) 30 FOOT MECHANICAL CONTROL SWITCHES / PIPE CLAMP | ||||
| FC30CW | INCLUDES (3) 30 FOOT MECHANICAL CONTROL SWITCHES / CABLE WEIGHT | ||||
| FR30 | INCLUDES (3) 30 FOOT MERCURY CONTROL SWITCHES / PIPE CLAMP | ||||
| FR30CW | INCLUDES (3) 30 FOOT MERCURY CONTROL SWITCHES / CABLE WEIGHT | ||||
| FC50 | INCLUDES (3) 50 FOOT MECHANICAL CONTROL SWITCHES / PIPE CLAMP | ||||
| FC50CW | INCLUDES (3) 50 FOOT MECHANICAL CONTROL SWITCHES / CABLE WEIGHT | ||||
| FR50 | INCLUDES (3) 50 FOOT MERCURY CONTROL SWITCHES / PIPE CLAMP | ||||
| FR50CW | INCLUDES (3) 50 FOOT MERCURY CONTROL SWITCHES / CABLE WEIGHT | ||||
| HD1 | HEAVY DUTY 1: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 12-18 FLA | ||||
| HD2 | HEAVY DUTY 2: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 18-24 FLA | ||||
| HS | HEAVY SENSOR TERMINALS | ||||
| X | AUXILIARY ALARM CONTACTS | ||||
| EXAMPLE: EFS115-FC20-HD2 | |||||
