CSI Controls CSION 3R Indoor/Outdoor Alarm System Description

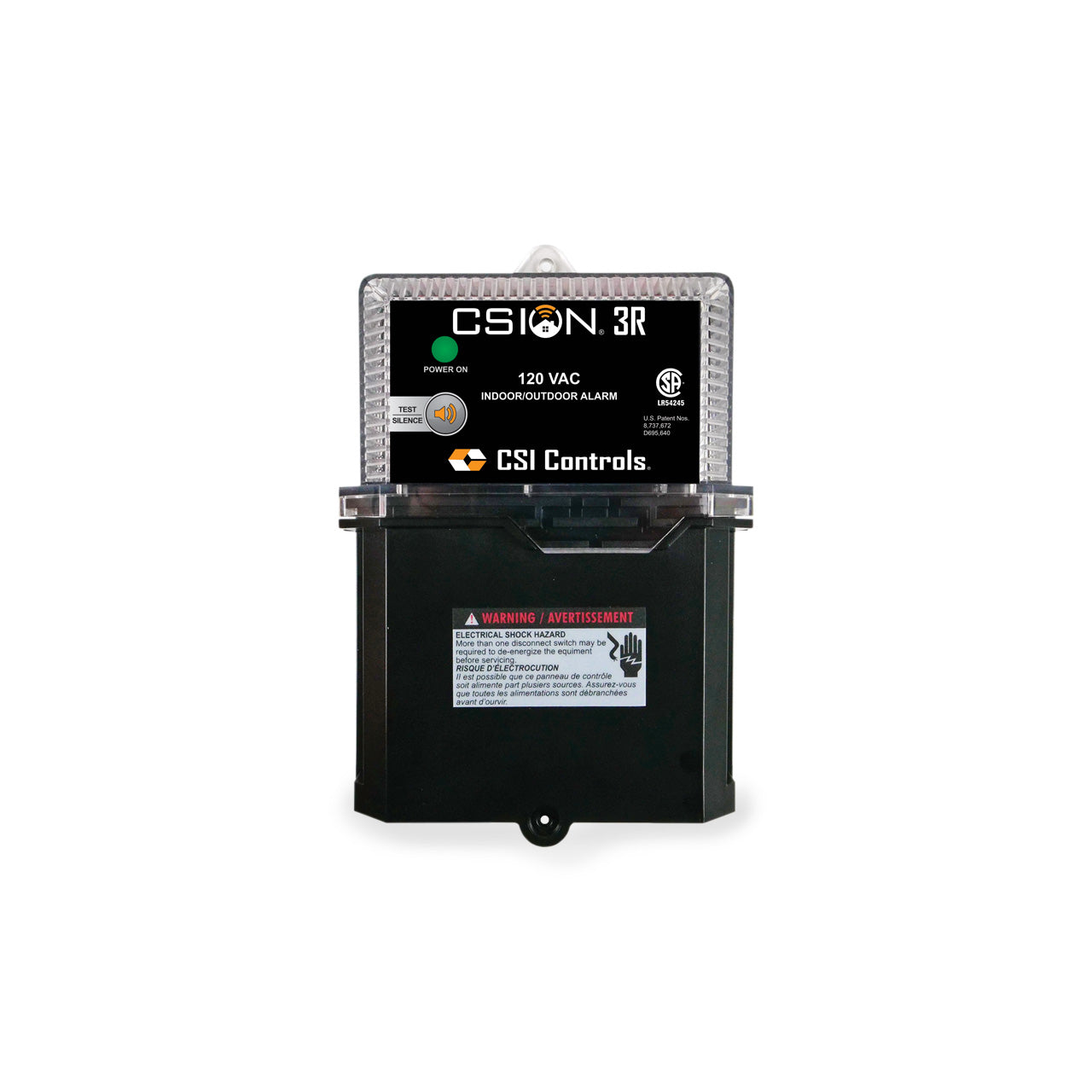

This alarm system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other water applications. The CSION 3R indoor/outdoor alarm can serve as a high or low level alarm depending on the float switch model used. This easy to install alarm features an innovative, sleek 2-color molded enclosure which integrates the red LED translucent beacon. Optional yellow LED models available.

The alarm sounds and the upper housing half illuminates when a potentially threatening liquid level condition occurs. The audible alarm can be silenced by pressing the Test/Silence button, but the alarm light will remain the on until the condition is remedied. Once the condition is cleared, the alarm will automatically reset. A green "Power On" light indicates power to the alarm panel.

CSI Controls CSION 3R Indoor/Outdoor Alarm System Features

• 2-Color Molded Enclosure Offers a Distinct Look; Upper Translucent Half Illuminates in Alarm Condition.
• Removable Lower Cover Provides Greater Access for Easier Field Wiring while the Internal Circuitry Remains Protected
• Interlocking Enclosure Features Unique Sound Chamber to Amplify the Horn, While Helping Prevent Moisture from Entering
• External Mounting Tabs for Easy Installation
• Enclosure Meets Type 3R Water-Tight Standards
• Enclosure has Indicator Marks on Bottom for Easy Placement of Cord Entry Locations
• Automatic Alarm Reset, Horn Silence Switch, and Alarm Test Switch
• Alarm Horn Sounds at 82 Decibels at 10 Feet (3 Meters)
• Alarm System (when installed on separate circuit) Operates Even if Pump Circuit Fails
• Green Power On Indicator
• Includes Auxiliary Alarm Contacts for Easy Attachment of Remote Devices

Options:

When Ordered with the Alarm, The System is Available with:

• Alternate Float Switch Models for High or Low Liquid Level Warning
• Premounted Terminal Block so Enclosure can also be used as a Junction Box for Splicing Pump, Pump Switch and Pump Power; Meets NEC Standard for Junction Boxes
• 6 Foot (1.8 Meter) Power Cord with 120 VAC Plug and Liquid Tight Connector
• Available with Red or Yellow LED Alarm Indication

CSI Controls CSION 3R Indoor/Outdoor Alarm System Specifications

• VOLTAGE :
• Primary: 120 VAC, 50/60 Hz, 3.8 Watts Max. (alarm condition)
• Secondary: 9 VDC
• ALARM ENCLOSURE: 6.7x5.3x2.5 inches (17.02x13.46x6.35 cm), Indoor-Outdoor, Weatherproof, Thermoplastic Meets Type 3R Water-Tight Standard
• ALARM HORN: 82 Decibels at 10 feet (3 meters)
• AUXILIARY ALARM CONTACTS: 240 VAC/ 30 VDC, 1.5 Amps Max., 50/60 Hz (circuit not supervised)
• PRE-MOUNTED TERMINAL BLOCK (OPTIONAL): 20 Amps, 120/240 VAC
• POWER CORD OPTIONAL: 6 feet (1.8 meters) Cord with 120 VAC Plug and Two RCC8 1/2 Inch Liquid-Tight Connectors
• FLOAT SWITCH: Control Duty Narrow Angle Mechanical Control Switch with Mounting Clamp
• CABLE: 15 feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
• FLOAT: 2.74 inch Diameter x 4.83 inch Long (7cm x 12.3cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Non-Potable Water up to 140°F (60°C)
• MAXIMUM WATER DEPTH: 30 feet (9 meters), 13 PSI
• ELECTRICAL: 5 Amps, 125 VAC/250 VAC, 50/60 Hz
