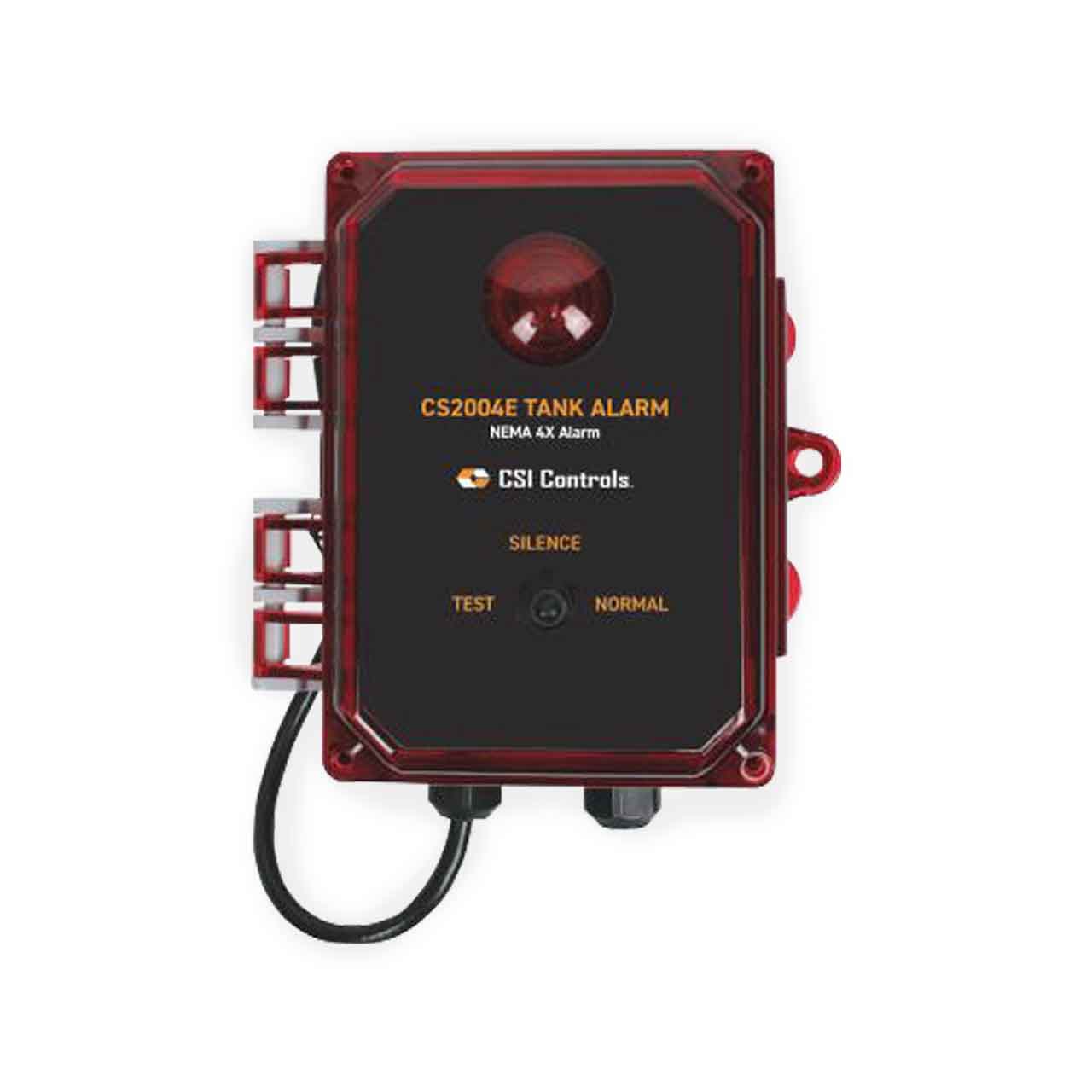

CSI Controls CS2004E High Water Alarm

This alarm system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, and other water applications.

The CS2004E alarm system can serve as a high or low level alarm depending on the float switch model used.

The alarm horn sounds when a potentially threatening liquid level condition occurs. The horn can be silenced, but the alarm beacon remains on until the condition is remedied. Once the condition is cleared, the alarm will automatically reset.

CSI Controls CS2004E High Water Alarm Ordering Information

• CS2004E Indoor/Outdoor High Water Alarm with 15' or 20' Float Switch
• CS2004E-H Indoor/Outdoor High Water Alarm with Float Switch and Hub Adapter to Mount on 2" Electrical Conduit
• CS2004E-NF Indoor/Outdoor High Water Alarm - No Float
• CS2004E-NF-H Indoor/Outdoor High Water Alarm with Hub Adapter to Mount on 2" Electrical Conduit - No Float

CSI Controls CS2004E High Water Alarm Features

• NEMA 4X Enclosure, Designed for Ease of installation, Rated for Indoor and Outdoor Use
• Automatic Alarm Reset
• Audible Alarm
• Large Red Alarm Beacon
• External Alarm Test / Silence Switch
• Alarm Horn Sounds at 87 Decibels at 10 Feet (3 meters)
• Latching Lockable Cover (no screws required)
• External Mounting Feet
• Complete Package Includes Standard Control Duty Narrow Angle Mechanical Control Switch with 15 feet (4.57 meters) of Cable (other lengths available) and Mounting Clamp - Other Cable Lengths Available
• UL Listed Type 6P Enclosure
• One Year Limited Warranty

CSI Controls CS2004E High Water Alarm Specifications

• VOLTAGE FOR 115 VAC MODEL: 115 VAC, 60 Hz, 2.4 Watts Max. (alarm condition)
• ALARM ENCLOSURE: 8.5 x 6.7 x 5.5 inch (21.6 x 17 x 14 cm) Including Mounts, NEMA 4X
• ALARM HORN: 87 Decibels at 10 feet (3 meters)
• POWER CORD: 6 foot (1.8 meter)
• FLOAT SWITCH CONNECTION TERMINAL: Float Switch is Pre-Wired to Internal Terminal Block.
• FLOAT SWITCH: Control Duty Narrow Angle Mechanical control switch with mounting clamp
• Cable: 15 feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE) Other Float Cable Lengths Available.
• Float: 2.74 inch Diameter x 4.83 inch Long (7.0 cm x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Water up to 140°F (60°C)
