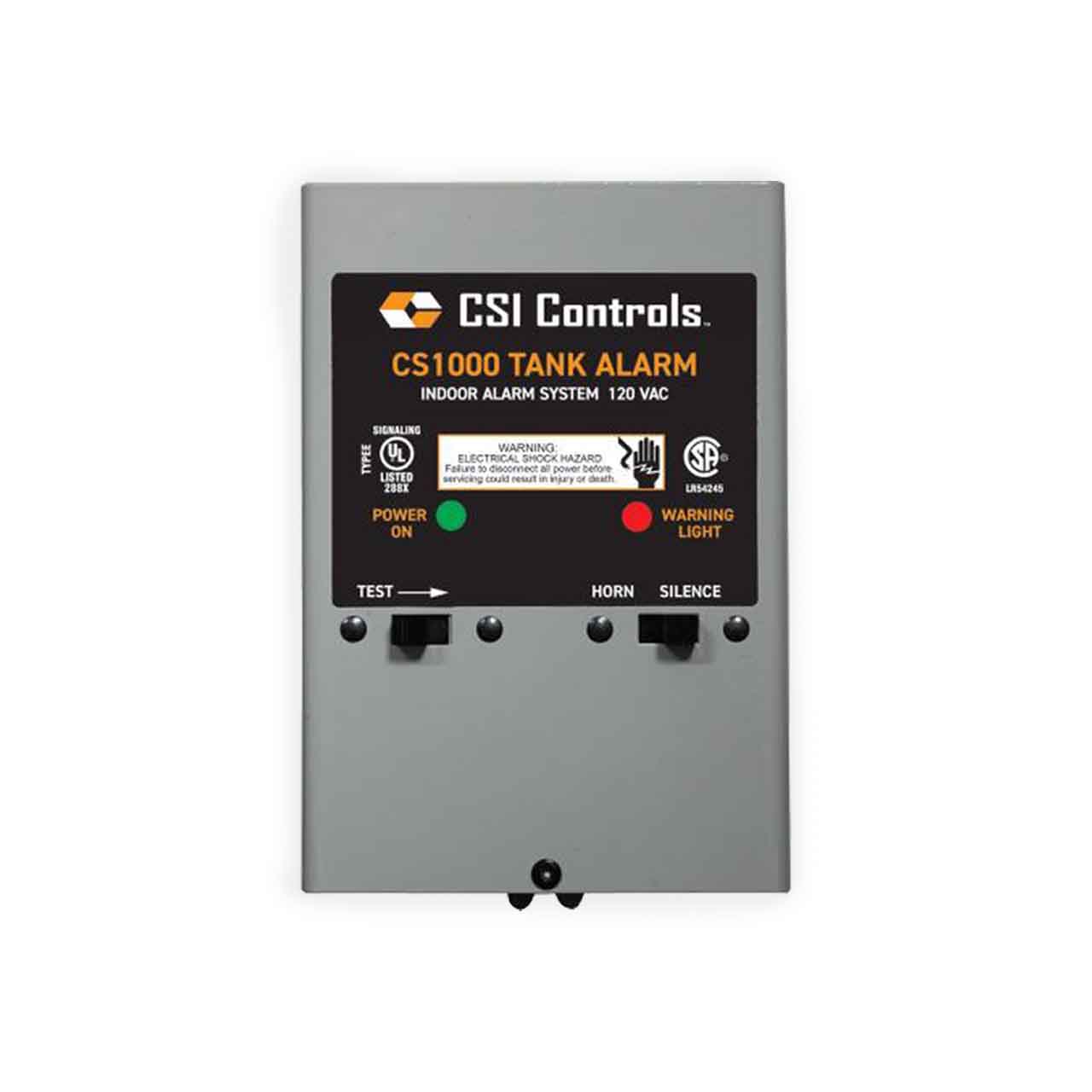

CSI Controls CS1000 Indoor High Water Alarm w/Float 115V
CSI Controls CS1000 Indoor High Water Alarm w/Float 115V
SKU : CSICS1000
In Stock Quantity:0
:
Brand
:
Regular price
$199.53 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
CSI Controls CS1000 Indoor Tank Alarm Description
This alarm system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, and other water applications.
The CS1000 alarm system can serve as a high or low level alarm depending on the float switch model used.
The alarm horn sounds when a potentially threatening liquid level condition occurs. The horn can be silenced, but the red warning light remains on until the condition is remedied. A green “power on” light indicates power to the alarm panel.
CSI Controls CS1000 Indoor Tank Alarm Features
- NEMA 1 Enclosure, Designed for Ease of Installation, Rated for Indoor Use
- Red "Alarm" Light, Green "Power" Light, Alarm "Test" Switch and Horn "Silence" Switch
- Alarm Horn Sounds at 86 Decibels at 10 feet (3 meters)
- Can be Used with any UL Listed / Recognized Switching Mechanism Rated to Include 1 Amp, 12 VAC Load
- Alarm System (when installed on separate circuit) Operates Even if the Pump Circuit Fails
- Complete Package Includes SJE SignalMaster® Control Switch with 15 Feet of Cable
- Switching Mechanism Operates on Low Voltage and is Isolated from Power Line to Reduce Possibility of Shock
- Alternate Float Switch Models for High or Low Level Warning
- Three-Year Limited Warranty
Specifications
Specifications
CSI Controls CS1000 Indoor Tank Alarm Specifications
- VOLTAGE FOR 115 VAC MODEL:
- Primary: 115 VAC, 50/60 Hz, 5 Watts Max. (alarm conditon)
- Secondary: 12 VAC
- ALARM ENCLOSURE: 6x4x2.5 inches (15.24x10.16x6.35 cm), NEMA 1 Metal
- ALARM HORN: 86 Decibels at 10 feet (3 meters)
- POWER CORD: 6 feet (1.8 meters)
- FLOAT SWITCH CONNECTION TERMINAL: for Float Switch Connection Only. Do Not Apply Power. Voltage Across Terminals is 12 VAC
- FLOAT SWITCH: Control Duty Narrow Angle Mechanical Control Switch with Mounting Clamp
- CABLE: 15 feet (4.57 meters), Flexible 18 Guage, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74 inch Diameter x 4.83 inch Long (7cm x 12.3cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Non-Potable Water up to 140°F (60°C)
- MAXIMUM WATER DEPTH: 30 feet (9 meters), 13 PSI
- ELECTRICAL: 5 Amps, 125 VAC/250 VAC, 50/60 Hz
